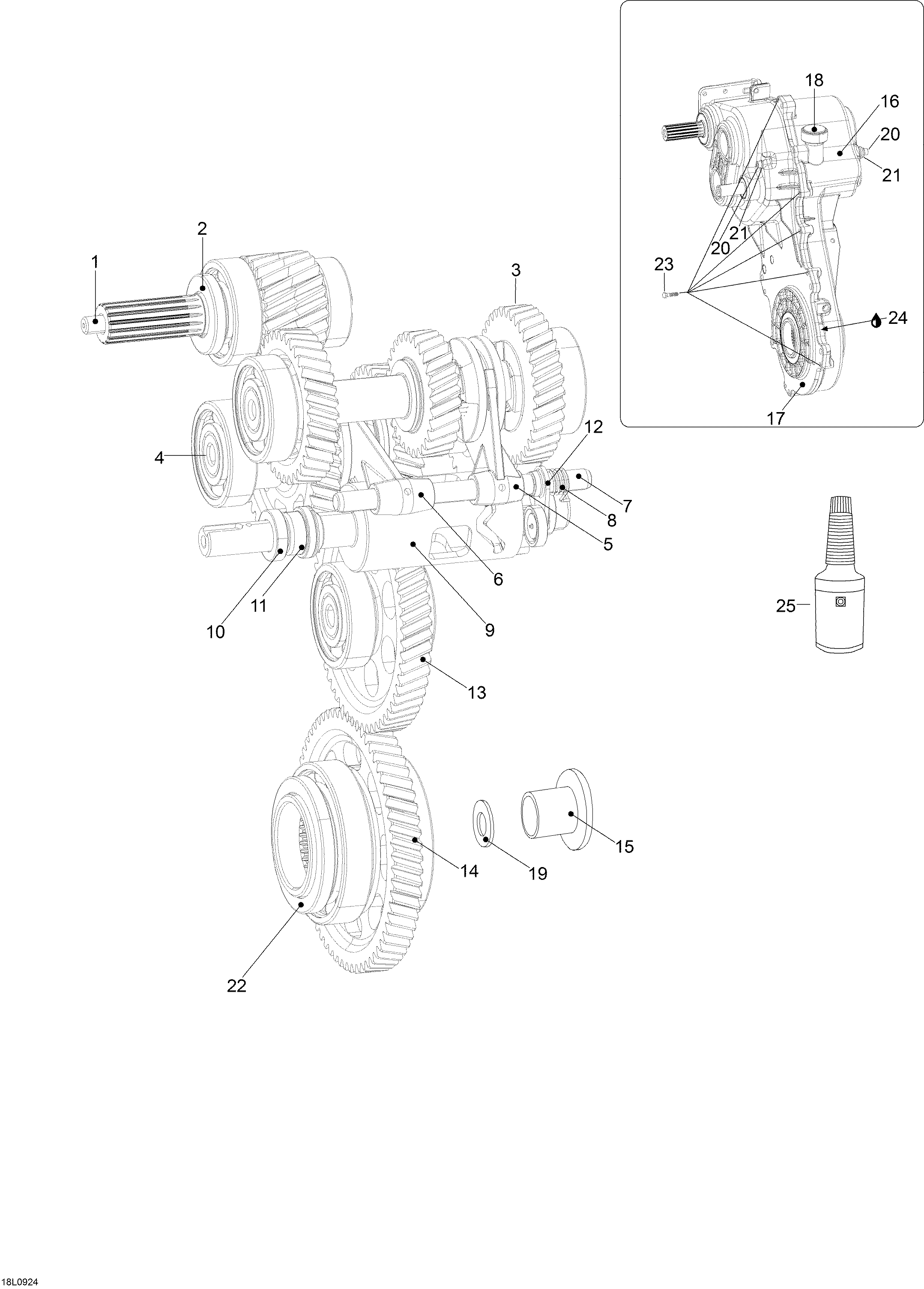

05- Transmission для BRP Lynx Xtrim Commander Limited 600 SDI - 2009
-
№АртикулНазвание
-
-504152768 Transmission ass'yTransmission ass'y
-
1619230009 Counter shaft ass'yCounter shaft ass'y
-
2619230010 Oil sealOil seal
-
3619230011 PlugPlug
-
4619230012 Main shaftMain shaft
-
5619230013 Reverse shaftReverse shaft
-
6619230014 ForkFork
-
7619230015 ForkFork
-
8619230016 ShaftShaft
-
9619230017 SpringSpring
-
10619230018 DrumDrum
-
11619230019 Oil sealOil seal
-
12619230020 BushingBushing
-
13619230021 Locking shaftLocking shaft
-
14619230022 Middle sprocketMiddle sprocket
-
15619230023 Lower sprocketLower sprocket
-
16619230024 PlugPlug
-
17619230025 Cover, gearboxCover, gearbox
-
18619230026 Cover gearboxCover gearbox
-
19619230027 Plug, oilPlug, oil
-
20619230028 Magnetic capMagnetic cap
-
21619230029 ScrewScrew
-
22619230030 WasherWasher
-
23619230031 Oil sealOil seal
-
24619230032 ScrewScrew
-
25619230033 Screw M6 x 20Screw M6 x 20
-
26619230034 Washer A6Washer A6
-
28619590182 OIL-GEAR SYNTHETIC (12 x 1l)OIL-GEAR SYNTHETIC (12 x 1l)
