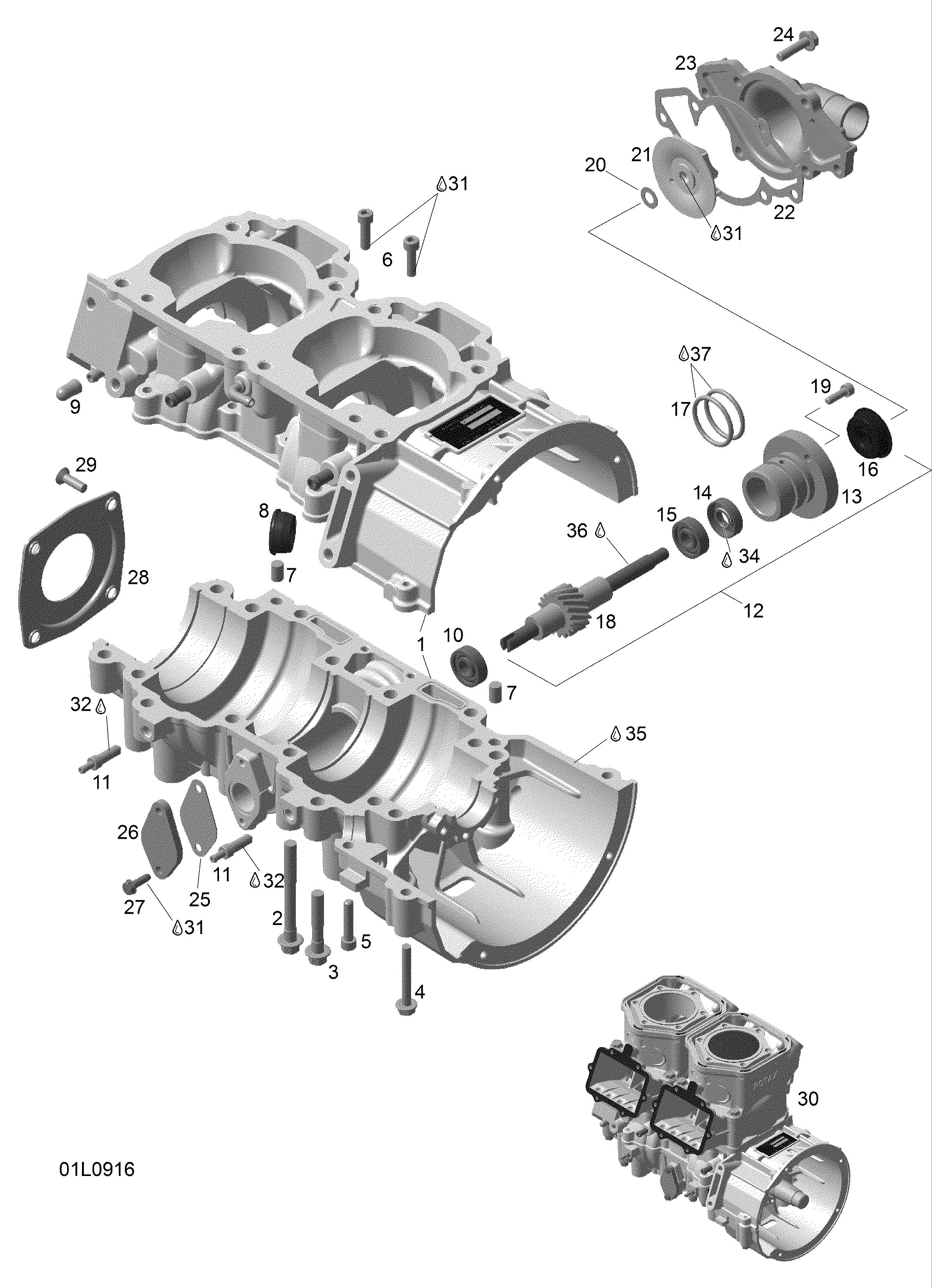

01- Crankcase для BRP Lynx Xtrim SC 600 E-TEC - 2009
-
№АртикулНазвание
-
1420890222 Crankcase ass'y. Includes 1 to 12Crankcase ass'y. Includes 1 to 12
-
2420640836 Hex. Collar screw M8 x 75Hex. Collar screw M8 x 75
-
3420640431 Hex. Collar screw M8 x 45Hex. Collar screw M8 x 45
-
4420640311 Hex. Collar screw M6 x 45Hex. Collar screw M6 x 45
-
5420840880 Socket head screw M6 x 30Socket head screw M6 x 30
-
6420840401 Socket head screw M6 x 22Socket head screw M6 x 22
-
7420632010 Dowel pinDowel pin
-
8420660890 Cable grommetCable grommet
-
9420960770 CapCap
-
10420232100 Ball bearingBall bearing
-
11420956070 Check valveCheck valve
-
12420837421 Water pump assy. Includes 13 to 18Water pump assy. Includes 13 to 18
-
14420230196 Oil sealOil seal
-
15420232100 Ball bearingBall bearing
-
16420650370 Oil sealOil seal
-
17420950890 O-ringO-ring
-
19420840511 Socket head screw M5 x 16Socket head screw M5 x 16
-
20420227945 Thrust washerThrust washer
-
21420222505 Water impellerWater impeller
-
22420931810 GasketGasket
-
23420922630 Water pump housingWater pump housing
-
24420240031 Hex. Screw M6 x 25Hex. Screw M6 x 25
-
25420931565 GasketGasket
-
26420810825 Cover plateCover plate
-
27420941925 Taptite screw M5 x 16Taptite screw M5 x 16
-
28420812420 Oil seal coverOil seal cover
-
29420941436 Hexalobular countersunk screw M6x20Hexalobular countersunk screw M6x20
-
30300059351 Short block assyShort block assy
-
31293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
32413711400 Loctite 648, 10 mlLoctite 648, 10 ml
-
33413707000 Molykote 111Molykote 111
-
34420899271 Grease Petamo Ghy 133N, 400 gGrease Petamo Ghy 133N, 400 g
-
35420297906 Sealing compound, 30 mlSealing compound, 30 ml
-
36413802900 Injection oil (12 x1 liter)Injection oil (12 x1 liter)
-
37293550033 Syntetic greaseSyntetic grease
