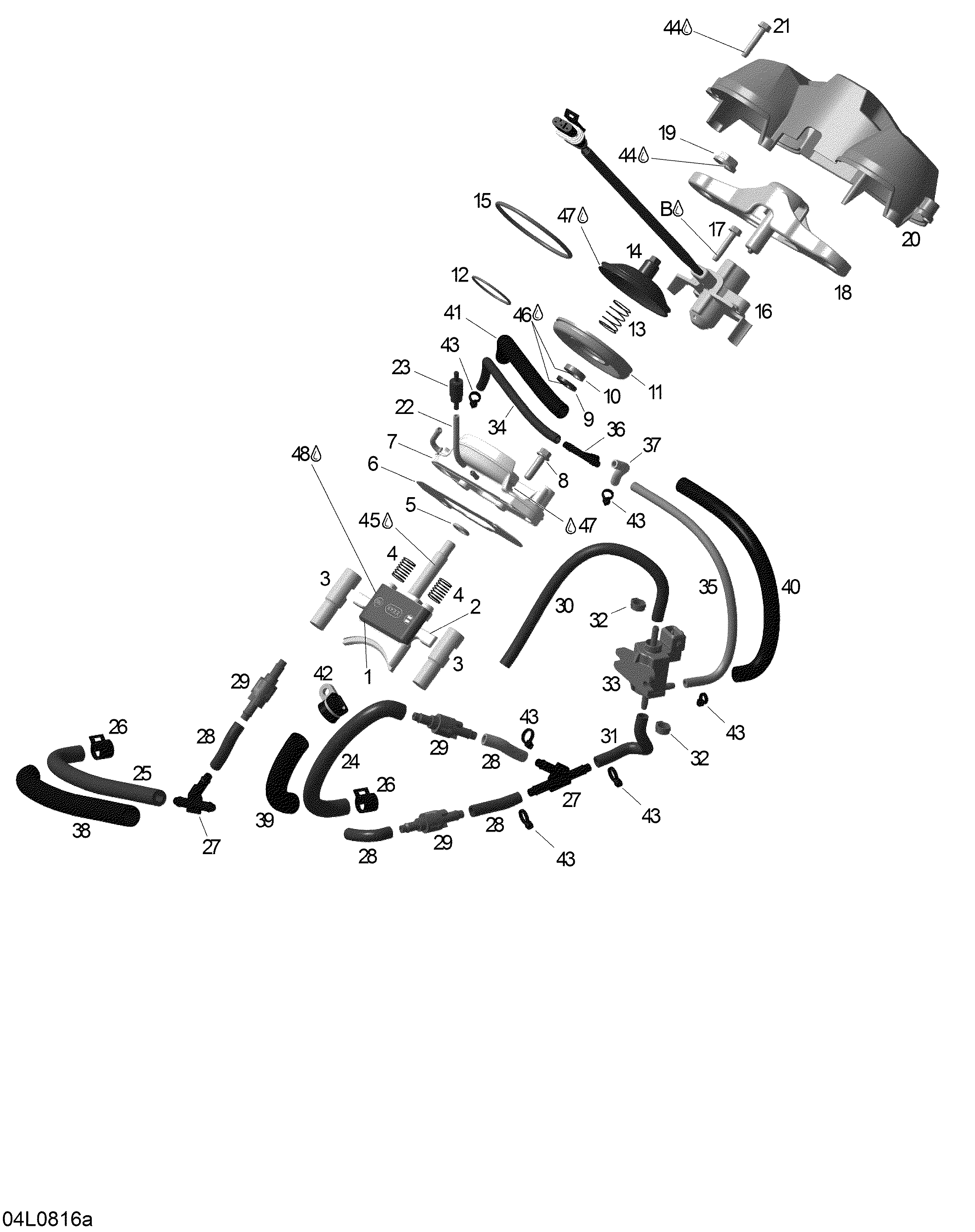

01- Rave valve для BRP Lynx Xtrim SC 600 E-TEC - 2009
-
№АртикулНазвание
-
1420854980 Ehaust valva upperEhaust valva upper
-
2420854972 Ehaust valva lowerEhaust valva lower
-
3420854990 Exhaust valveExhaust valve
-
4420238556 SpringSpring
-
5420931765 O-ringO-ring
-
6420430030 GasketGasket
-
7420854889 Valve rod housing assyValve rod housing assy
-
8420440202 Screw M6 x 20Screw M6 x 20
-
9420431380 Gasket ringGasket ring
-
10420950730 Oil sealOil seal
-
11420260724 BellowsBellows
-
12420939285 Hose springHose spring
-
13420238557 SpringSpring
-
14420854442 Exhaust valve pistonExhaust valve piston
-
15420838255 Hose springHose spring
-
16420665971 Position sensorPosition sensor
-
17420241270 Screw M5 x 25Screw M5 x 25
-
18420854086 Valve barValve bar
-
19420942190 Collar nut M12x1,5Collar nut M12x1,5
-
20420910820 Valve coverValve cover
-
21420241270 Screw M5x25Screw M5x25
-
22414413800 Oil line 50 mmOil line 50 mm
-
23420956515 Checkvalve assyCheckvalve assy
-
24420460782 Molded hoseMolded hose
-
25420460782 Molded hoseMolded hose
-
26420853510 Clamp 24Clamp 24
-
27420460635 Y-nippleY-nipple
-
28420460851 Pressure linePressure line
-
29420660543 Check valveCheck valve
-
30420460854 Pressure line, 205 mmPressure line, 205 mm
-
31420460852 Pressure line, 80 mmPressure line, 80 mm
-
32420853643 ClampClamp
-
33270600005 Solenoid valveSolenoid valve
-
34420660571 Pressure line, 180mmPressure line, 180mm
-
35420660575 Pressure line, 220mmPressure line, 220mm
-
36293710068 T-fittingT-fitting
-
37420660572 Pressure line, 50mmPressure line, 50mm
-
38420460962 Tube NW 13 190mmTube NW 13 190mm
-
39420460961 Tube NW 13 165mmTube NW 13 165mm
-
40420460941 Tube NW 8,5 200mmTube NW 8,5 200mm
-
41415079900 Tube NW 8,5 150mmTube NW 8,5 150mm
-
42420851250 ClampClamp
-
43420866718 Tie wrapTie wrap
-
44293750001 Loctite 243Loctite 243
-
46293550033 Multi purpose greaseMulti purpose grease
