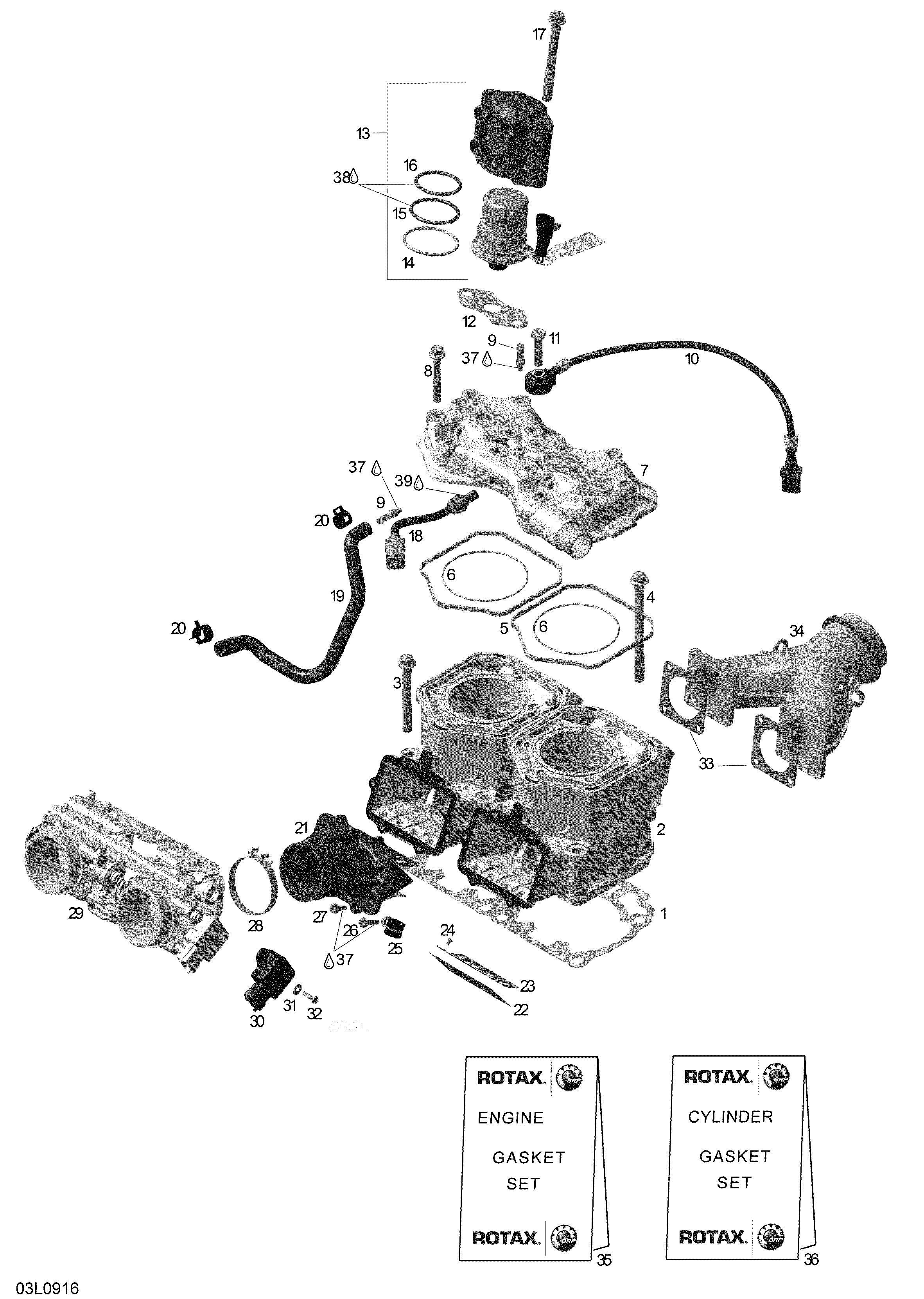

01- Cylinder для BRP Lynx Xtrim SC 600 E-TEC - 2009
-
№АртикулНазвание
-
1420431160 Base gasket 0.5 mmBase gasket 0.5 mm
-
1420431161 Base gasket 0.6 mmBase gasket 0.6 mm
-
1420931894 Base gasket 0.7 mmBase gasket 0.7 mm
-
1420931895 Base gasket 0.8 mmBase gasket 0.8 mm
-
2420623262 CylinderCylinder
-
3420640524 Hex screw M10x80Hex screw M10x80
-
4420640534 Hex. screw M10x120Hex. screw M10x120
-
5420931590 Square ringSquare ring
-
6293300026 O-ringO-ring
-
7420623292 Cylinder haedCylinder haed
-
8420941627 Hex. collar screw M8 x 56.5Hex. collar screw M8 x 56.5
-
9420924720 Hose nippeleHose nippele
-
10270000484 Knock sensor asyKnock sensor asy
-
11207083544 Hex. Screw M8x35Hex. Screw M8x35
-
12420430930 GasketGasket
-
13420874731 Fuel injector asy. Includes 13 to 16Fuel injector asy. Includes 13 to 16
-
14420827330 Crush ringCrush ring
-
15420431560 O-ringO-ring
-
16420431550 O-ringO-ring
-
17420441187 Torx-flange screwM10x90Torx-flange screwM10x90
-
18515176398 Temperature sensorTemperature sensor
-
19420460865 Foem hoseFoem hose
-
20420853510 Spring clampSpring clamp
-
21420667530 Intake socket whit reed valve assyIntake socket whit reed valve assy
-
22420924680 Reed pedalReed pedal
-
23420924695 Pedal stopPedal stop
-
24420941215 Oval-head screw M3x5Oval-head screw M3x5
-
25420851250 Cable clampCable clamp
-
26420841550 Screw M5x22Screw M5x22
-
27420941925 ScrewM5x16ScrewM5x16
-
28420851065 ClampClamp
-
29420889197 Throttle body socket assyThrottle body socket assy
-
30270000251 Throttle position sensorThrottle position sensor
-
31234041600 WasherWasher
-
32208641660 ScrewScrew
-
33420850552 GasketGasket
-
34420673420 Exhaust manifold assyExhaust manifold assy
-
35420889923 Engine gasket setEngine gasket set
-
36420889928 Cylinder gasket setCylinder gasket set
-
37293800060 Loctite 243Loctite 243
-
39420297906 Sealing compountSealing compount
