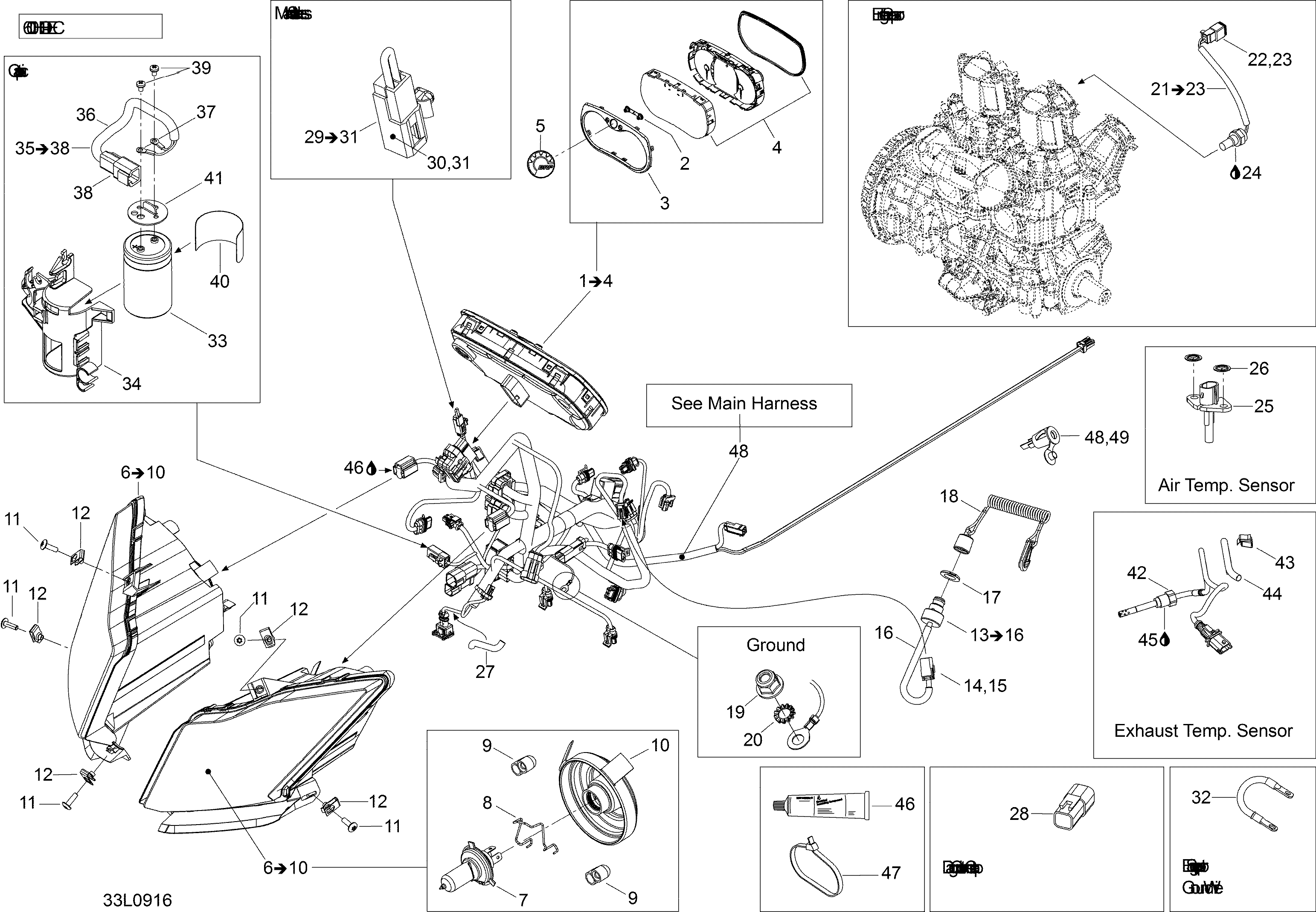

10- Electrical System для BRP Lynx Xtrim SC 600 E-TEC - 2009
-
№АртикулНазвание
-
1515176856 Speedometer Ass'y. Includes 1 to 4Speedometer Ass'y. Includes 1 to 4
-
2415129355 Speedometer ButtonSpeedometer Button
-
3415129370 Gauge RingGauge Ring
-
4415129349 Lens And SealLens And Seal
-
5219902677 Logo, BRP 20 mmLogo, BRP 20 mm
-
6517304194 RH Headlamp. Includes 6 to 10RH Headlamp. Includes 6 to 10
-
6517304195 LH Headlamp. Includes 6 to 10LH Headlamp. Includes 6 to 10
-
7515176274 Halogen Bulb, 60/55 W, 12 VHalogen Bulb, 60/55 W, 12 V
-
8515176493 Bulb HolderBulb Holder
-
9515176498 CapCap
-
10515176499 CoverCover
-
11250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
12250000048 Pannel Nut M6 X 1.0Pannel Nut M6 X 1.0
-
13515176815 Dess Switch. Includes 13 to 16Dess Switch. Includes 13 to 16
-
14515176815 Male TerminalMale Terminal
-
15515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
16409902000 Tubing 12 mmTubing 12 mm
-
17278000508 Safety Switch NutSafety Switch Nut
-
18515176461 DESS CapDESS Cap
-
19233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
20234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
21515176398 Temperature Sensor. Includes 21 to 23Temperature Sensor. Includes 21 to 23
-
22515175670 Female Terminal Housing, 2 CircuitsFemale Terminal Housing, 2 Circuits
-
23278000632 Female TerminalFemale Terminal
-
24293800018 Loctite 592, Pipe Sealant, 50 mlLoctite 592, Pipe Sealant, 50 ml
-
25515176366 Air Temperature SensorAir Temperature Sensor
-
26389804300 Push NutPush Nut
-
27515175442 Tubing 6 mmTubing 6 mm
-
28278002148 Diagnostic Connector CapDiagnostic Connector Cap
-
29515176661 Harness. Includes 29 to 31Harness. Includes 29 to 31
-
30860200237 Male TerminalMale Terminal
-
31710000667 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
32515176358 Ground WireGround Wire
-
33515176349 CapacitorCapacitor
-
34515176607 Capacitor SupportCapacitor Support
-
35515176605 Capacitor Harness. Includes 35 to 38Capacitor Harness. Includes 35 to 38
-
36515175442 Tubing 6 mmTubing 6 mm
-
37515175504 Ring TerminalRing Terminal
-
38278001674 Male Terminal Housing, 2 CircuitsMale Terminal Housing, 2 Circuits
-
39515176542 Screw 10-32 X 5/16''Screw 10-32 X 5/16''
-
40516002976 Capacitor DecalCapacitor Decal
-
41515176351 CapCap
-
42514054641 Temperature SensorTemperature Sensor
-
43414227300 ClipClip
-
44515175442 Tubing 6 mmTubing 6 mm
-
45293800070 Loctite 767, Antiseize Lubricant, 8 OzLoctite 767, Antiseize Lubricant, 8 Oz
-
46293550004 Dielectric Grease, 150 GDielectric Grease, 150 G
-
47293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
47293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
47414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
47293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
48515176602 Frame HarnessFrame Harness
-
48710001248 Power outletPower outlet
-
49515176527 Powe outlet harnessPowe outlet harness
