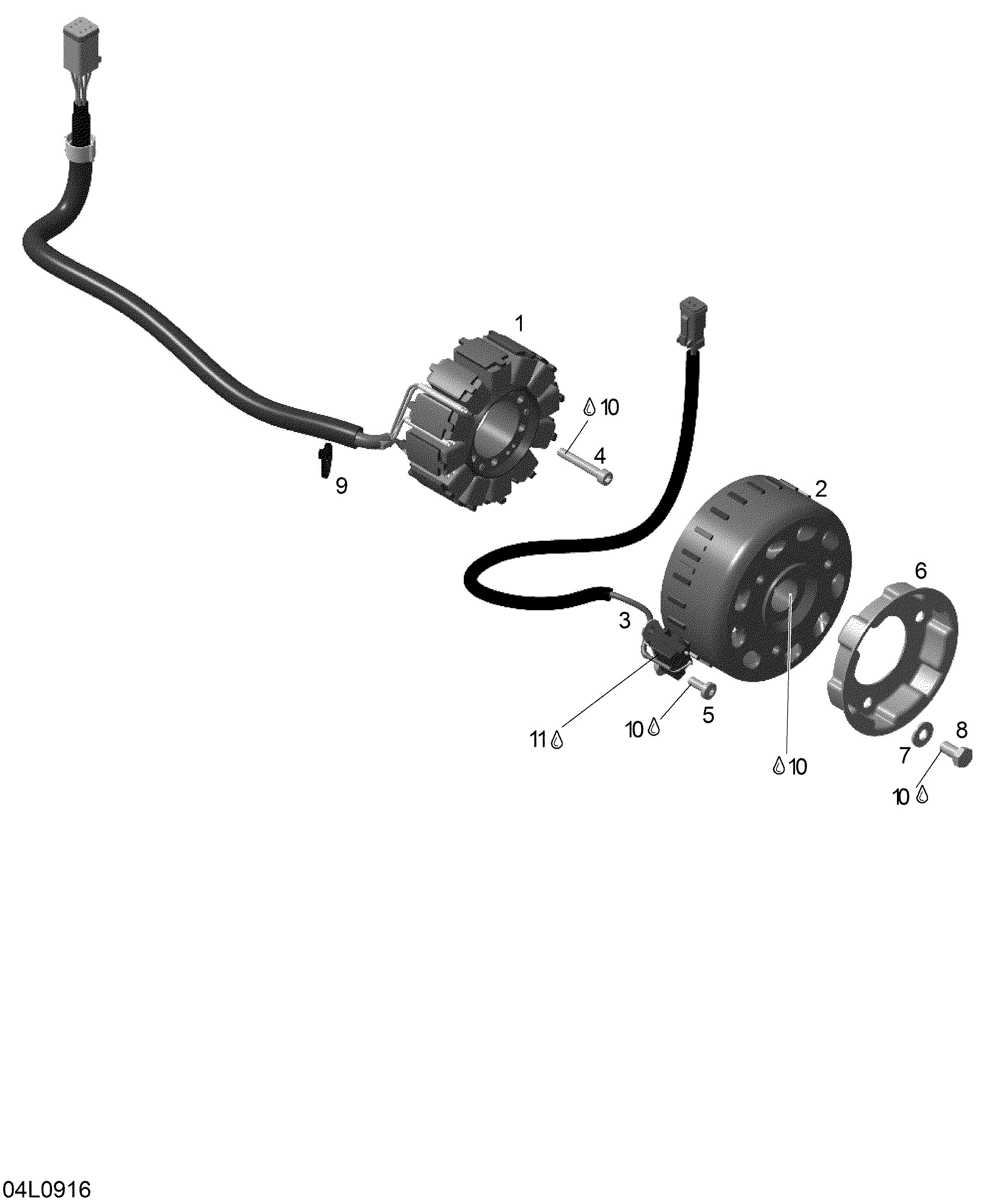

01- Ignition для BRP Lynx Xtrim SC 600 E-TEC - 2009
-
№АртикулНазвание
-
1420665432 Stator ass'yStator ass'y
-
2420665441 Magneto flywheelMagneto flywheel
-
3420996839 Pick up ass'yPick up ass'y
-
4420241816 Allen screw M6 x 40Allen screw M6 x 40
-
5420640321 Taptite screw M5 x 16Taptite screw M5 x 16
-
420866756 Fly wheelFly wheel
-
6420852532 Starting pulleyStarting pulley
-
7420827405 WasherWasher
-
8207181644 Screw M8 x 16Screw M8 x 16
-
9420866714 ClampClamp
-
10293800060 Loctite 243, 10mlLoctite 243, 10ml
-
11293800081 Loctite 5910Loctite 5910
