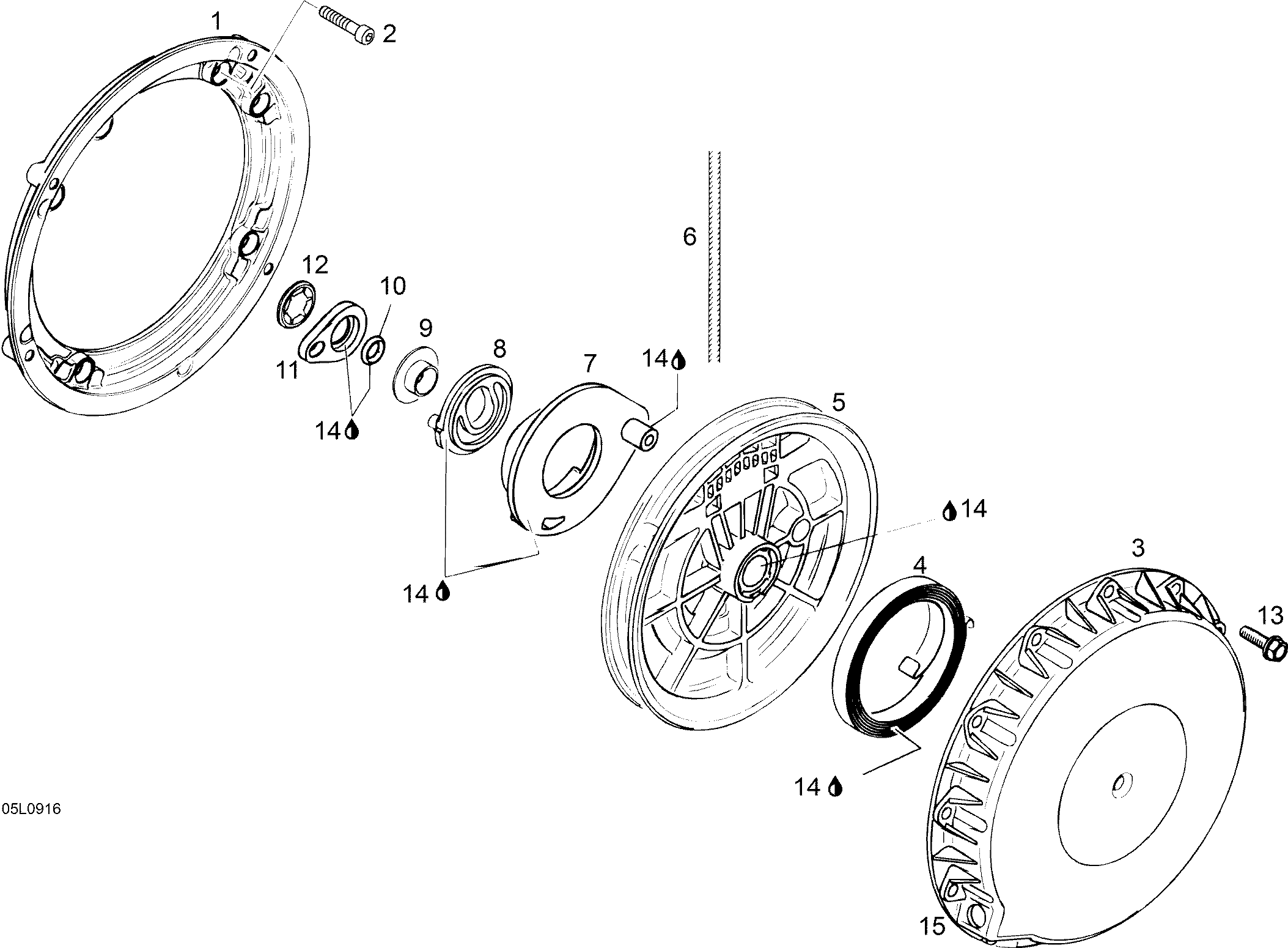

04- Rewind Starter для BRP Lynx Xtrim SC 600 E-TEC - 2009
-
№АртикулНазвание
-
1420810868 Connecting flangeConnecting flange
-
2420241236 Socket head screw M6 x 16Socket head screw M6 x 16
-
-420892612 Rewind starter ass'y. Includes 3 to 13Rewind starter ass'y. Includes 3 to 13
-
3420910253 Starter housingStarter housing
-
4420939115 Rewind spring ass'yRewind spring ass'y
-
5420852288 Rope sheaveRope sheave
-
6412500200 Starter ropeStarter rope
-
7420852630 PawlPawl
-
8420852308 Pawl lockPawl lock
-
9420847926 Stage slleveStage slleve
-
10420250407 O-ringO-ring
-
11420852520 Lock leverLock lever
-
12420845560 Locking elementLocking element
-
13420941256 Torx taptite screw M6 x 20Torx taptite screw M6 x 20
-
14420899763 Molykote PG 54, 10gMolykote PG 54, 10g
-
15420910254 Stater housing whitout rewind staterStater housing whitout rewind stater
