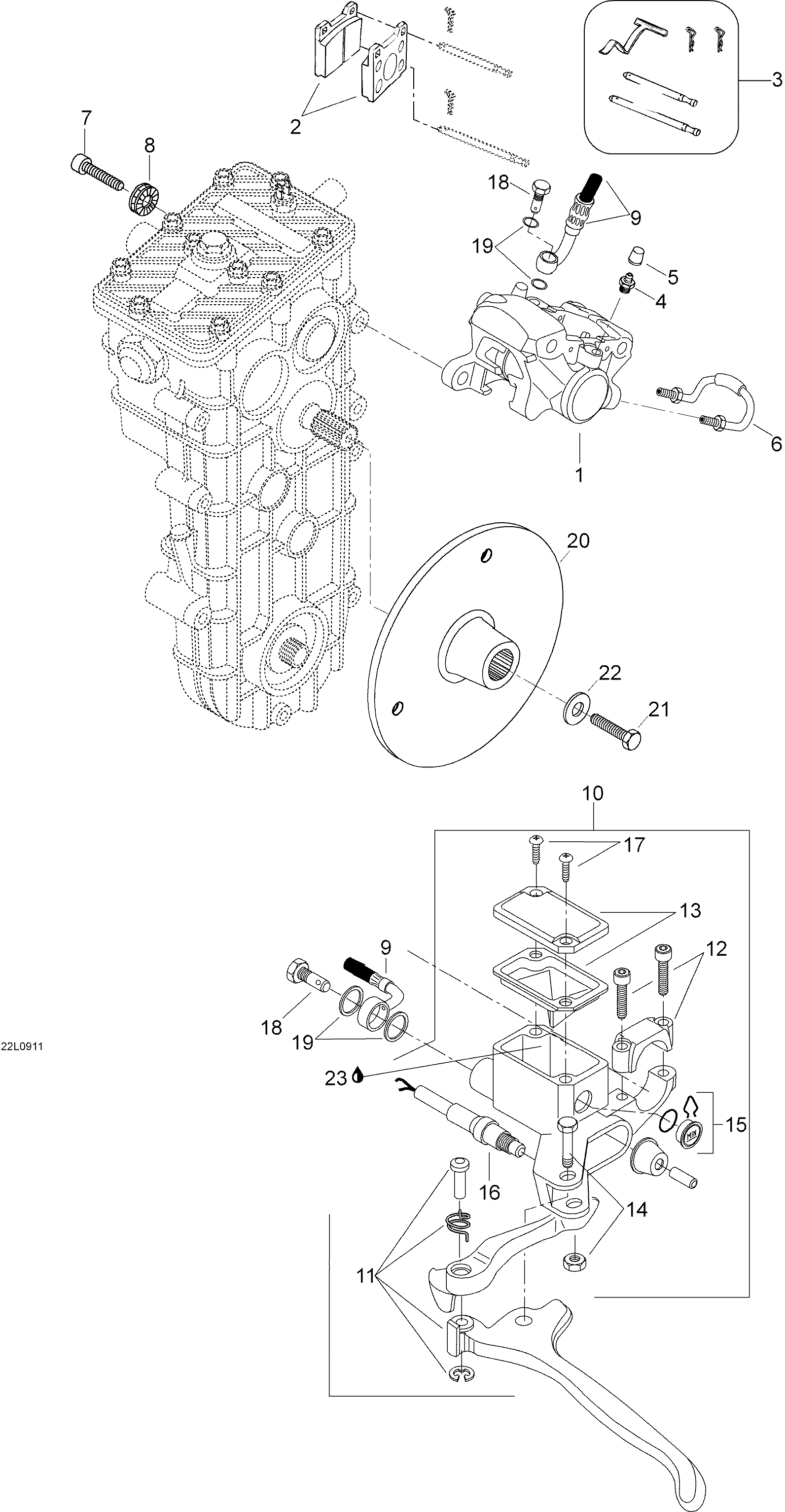

06- Hydraulic Brake для BRP Lynx YETI Pro V-800 (RUS) - 2009
-
№АртикулНазвание
-
1507032409 Caliper. Includes 1 to 6Caliper. Includes 1 to 6
-
2415084600 Brake lining kitBrake lining kit
-
3415128865 Kit (pins, retainers, spring)Kit (pins, retainers, spring)
-
4414989800 Bleeder screwBleeder screw
-
5414989700 BootBoot
-
6414989900 TubeTube
-
740277 Socket head screw M10 x 65Socket head screw M10 x 65
-
820068 Lock washer D10Lock washer D10
-
9507032237 HoseHose
-
10507032408 Master cylinder. Includes 10 to 17Master cylinder. Includes 10 to 17
-
11507032268 Short brake leverShort brake lever
-
12507032477 Clamp ass'yClamp ass'y
-
13415029900 CoverCover
-
14415030000 Pin ass'yPin ass'y
-
16507032366 Microswitch ass'yMicroswitch ass'y
-
17216141260 ScrewScrew
-
18414920500 Banjo boltBanjo bolt
-
19414920600 WasherWasher
-
20605353250 Brake diskBrake disk
-
2140336 Hex. screw M8 x 20Hex. screw M8 x 20
-
22546336 WasherWasher
