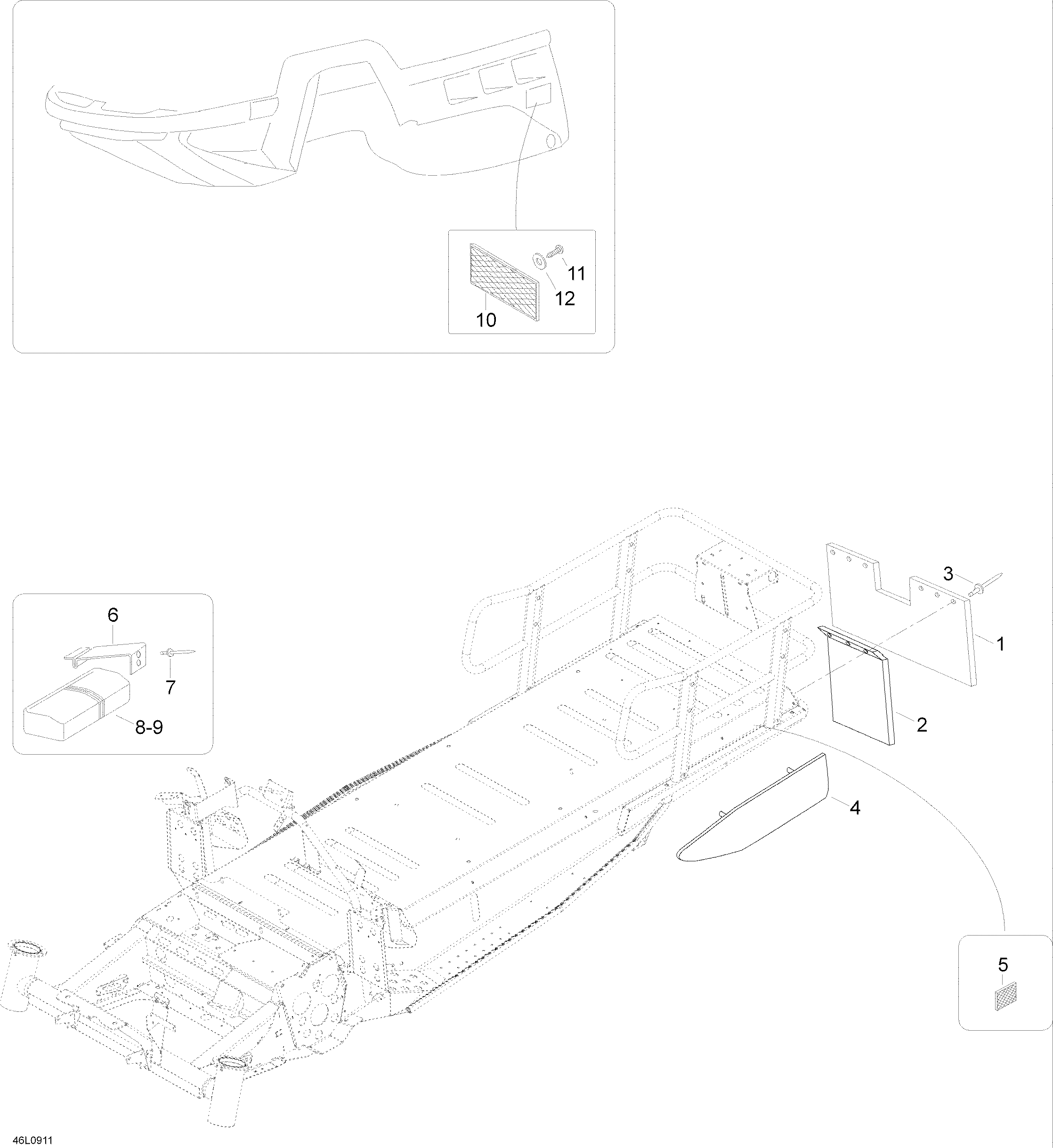

09- Utilities для BRP Lynx YETI Pro V-800 (RUS) - 2009
-
№АртикулНазвание
-
1605354719 Snow guardSnow guard
-
2605355316 SupprotSupprot
-
336037 RivetRivet
-
4605354746 Side snowguard L.HSide snowguard L.H
-
4605354747 Side snowguard R.HSide snowguard R.H
-
521121 Reflector, yellowReflector, yellow
-
65346728 Spring plateSpring plate
-
736108 RivetRivet
-
8605352219 Tool setTool set
-
9708200041 Tool set boxTool set box
-
10414510200 Reflector, AmberReflector, Amber
-
1140070 Screw M5 x 10Screw M5 x 10
-
1220018 Serrated lock washer A5,3Serrated lock washer A5,3
