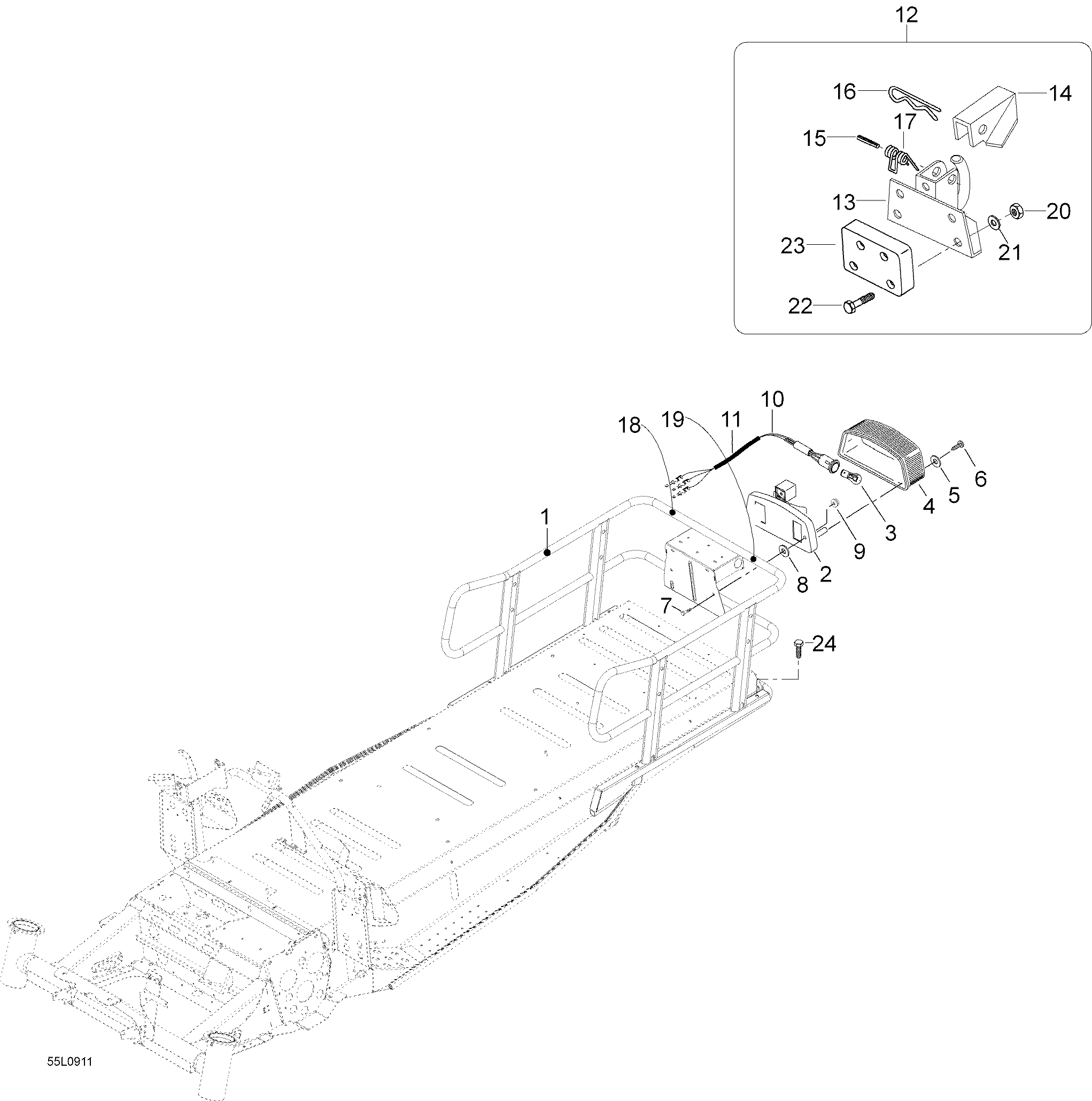

09- Rack для BRP Lynx YETI Pro V-800 (RUS) - 2009
-
№АртикулНазвание
-
1605356205 Rack ass'y, whiteRack ass'y, white
-
2515175397 Taillamp housingTaillamp housing
-
3410504100 BulbBulb
-
4414513700 LensLens
-
5414516400 WasherWasher
-
6209632540 ScrewScrew
-
740064 Locking screw M6 x 40Locking screw M6 x 40
-
820077 Washer A8.4Washer A8.4
-
933200 Elastic flanged nut M6, NylockElastic flanged nut M6, Nylock
-
10605354685 Harness ass'y, rear lampHarness ass'y, rear lamp
-
11409901800 TubingTubing
-
125344156 Hitch ass'y. Includes 13 to 17Hitch ass'y. Includes 13 to 17
-
135344208 HitchHitch
-
145440767 LockLock
-
1541012 Spring PinSpring Pin
-
1641029 Needle PinNeedle Pin
-
17545693 SpringSpring
-
18605448799 Decal, pulling barDecal, pulling bar
-
195447929 Decal, weight/pulling forceDecal, weight/pulling force
-
2033011 Elastic stop nut M8Elastic stop nut M8
-
2120004 Washer A8.4Washer A8.4
-
2240009 Hex. screw M8 x 50Hex. screw M8 x 50
-
23605351510 SpacerSpacer
-
2440316 Screw M8 x 20Screw M8 x 20
