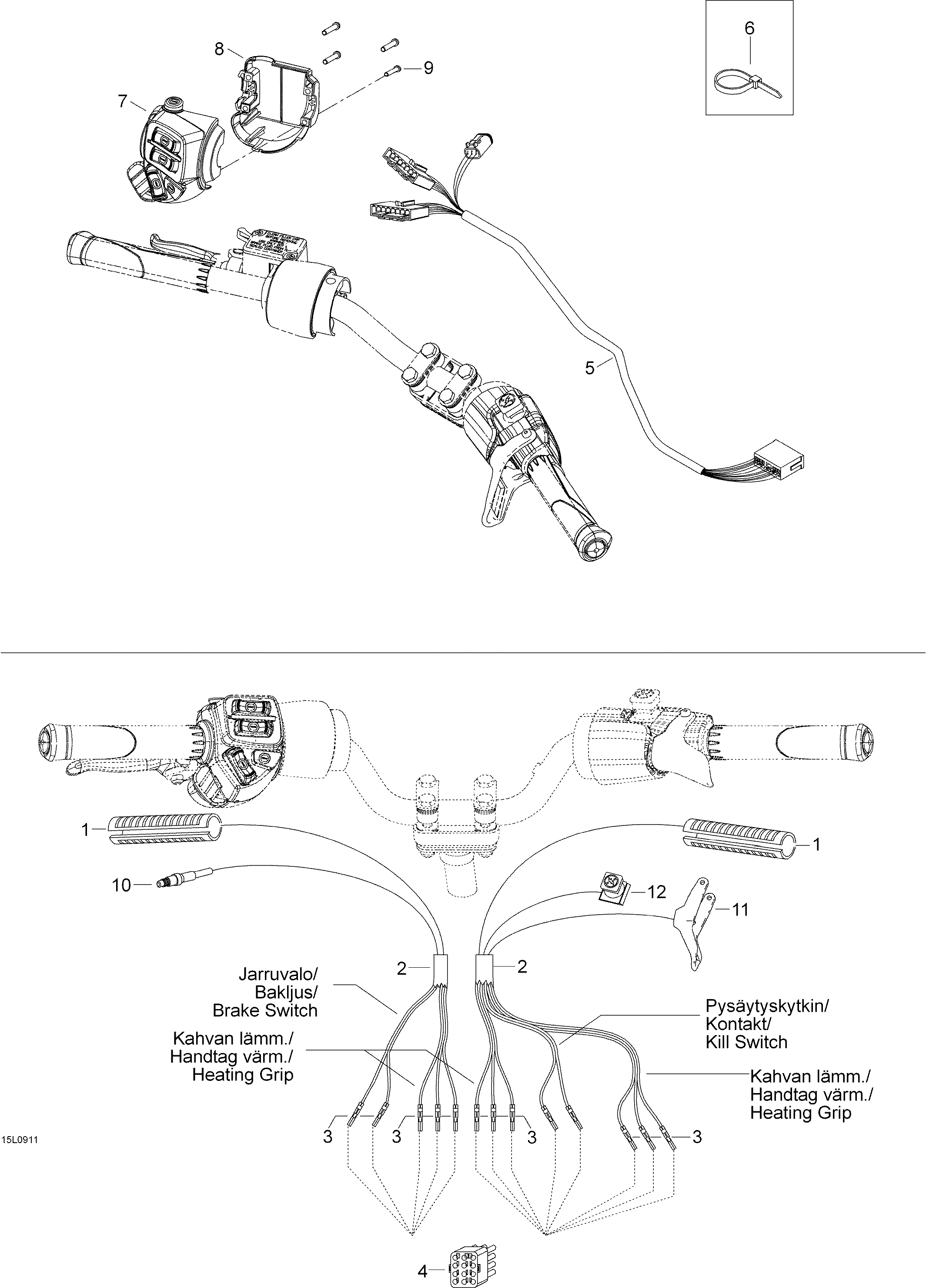

10- Steering harness для BRP Lynx YETI Pro V-800 (RUS) - 2009
-
№АртикулНазвание
-
1515175664 Heater grip elementHeater grip element
-
239023 TubingTubing
-
3605642628 Male connectorMale connector
-
-605154615 Main harness ass'y. Not shown in pictureMain harness ass'y. Not shown in picture
-
442617 Male terminal housing (15 circuits)Male terminal housing (15 circuits)
-
5605354616 Harness ass'yHarness ass'y
-
627026 Tie-rapTie-rap
-
7605354729 Switch housingSwitch housing
-
8515175757 CoverCover
-
940903 Plastofast-screw 3.5 x 25Plastofast-screw 3.5 x 25
-
10507032366 Microswitch ass'yMicroswitch ass'y
-
11512059481 Throttle handleThrottle handle
-
12605355643 Emergency switchEmergency switch
