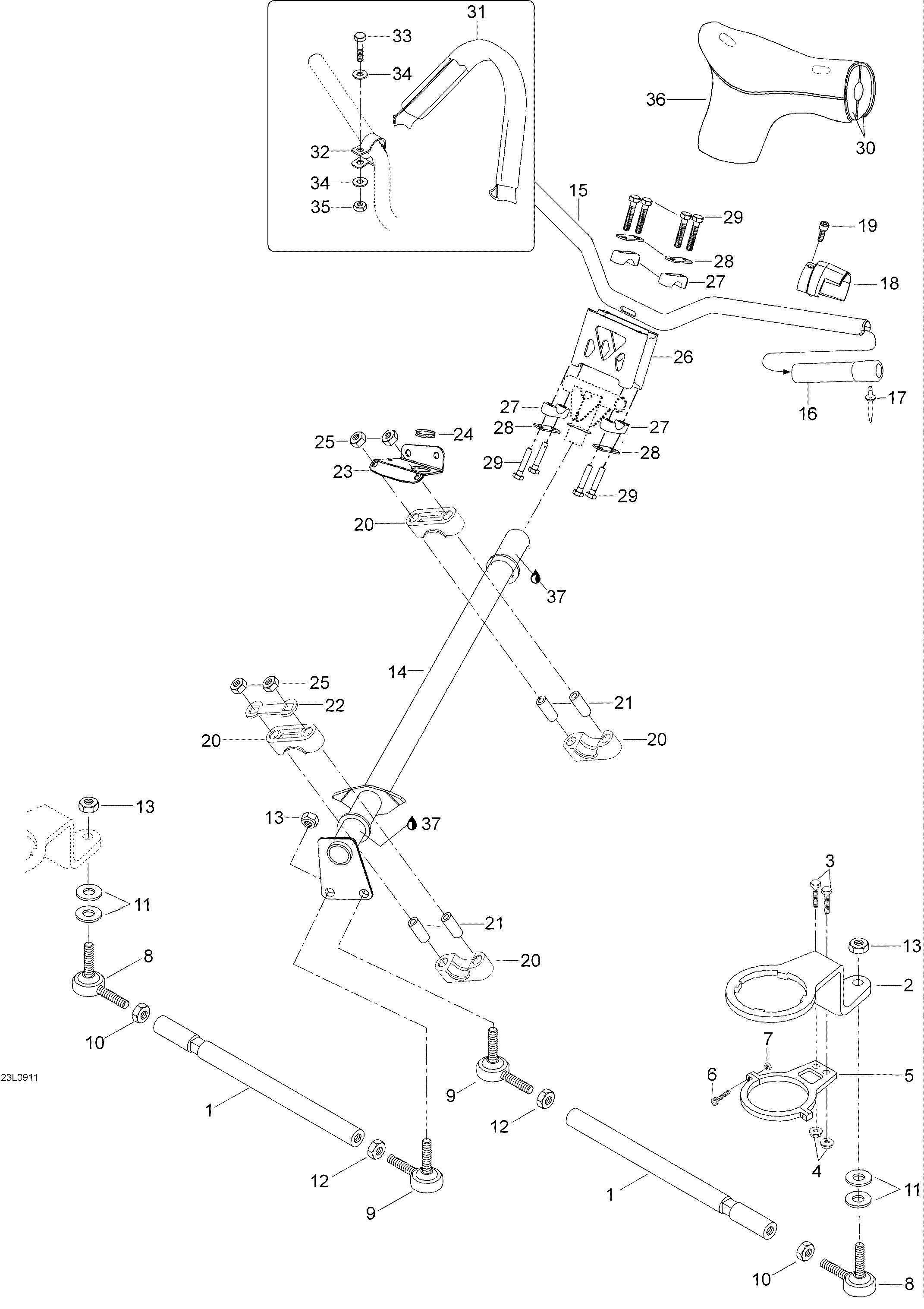

07- Steering System для BRP Lynx YETI Pro V-800 (RUS) - 2009
-
№АртикулНазвание
-
1605454772 R.H Tie rodR.H Tie rod
-
1605454293 L.H Tie rodL.H Tie rod
-
2605353422 R.H. Steering armR.H. Steering arm
-
2605353423 L.H. Steering armL.H. Steering arm
-
340031 Screw M6 x 25Screw M6 x 25
-
433200 Elastic flanged nut M6Elastic flanged nut M6
-
55344180 Support ass'ySupport ass'y
-
640146 Socket head screw M6 x 20Socket head screw M6 x 20
-
733008 Elastic stop nut M4Elastic stop nut M4
-
8506151495 L.H. Ball jointL.H. Ball joint
-
9506151492 R.H. Ball jointR.H. Ball joint
-
1033019 Nut R.H.Nut R.H.
-
1131014 ShimShim
-
1233017 Nut L.H.Nut L.H.
-
1333023 Elastic stop nut M10Elastic stop nut M10
-
14605253421 Main tubeMain tube
-
15605251368 Handle barHandle bar
-
165340464 GripGrip
-
1736005 RivetRivet
-
18506151566 AdaptorAdaptor
-
1940390 Socket head screw M8 x 20Socket head screw M8 x 20
-
20506150400 Half bushingHalf bushing
-
21506150500 Housing bushingHousing bushing
-
22506150600 Stopper plateStopper plate
-
23605351973 Console holderConsole holder
-
2428022 GrommetGrommet
-
2533201 Elastic flanged nut M8Elastic flanged nut M8
-
26860601300 ExtensionExtension
-
27506151622 Steering clampSteering clamp
-
28506151196 ReinforcementReinforcement
-
29250000074 Carriage bolt M8 x 70Carriage bolt M8 x 70
-
30605354907 Foam,Foam,
-
31506152115 Strap ass'yStrap ass'y
-
32506151792 Support plateSupport plate
-
3340031 Hex. screw M6 x 25Hex. screw M6 x 25
-
3420003 WasherWasher
-
3533010 Elastic stop nut M6Elastic stop nut M6
-
36605254571 CoverCover
-
37519700417 Synthetic greaseSynthetic grease
