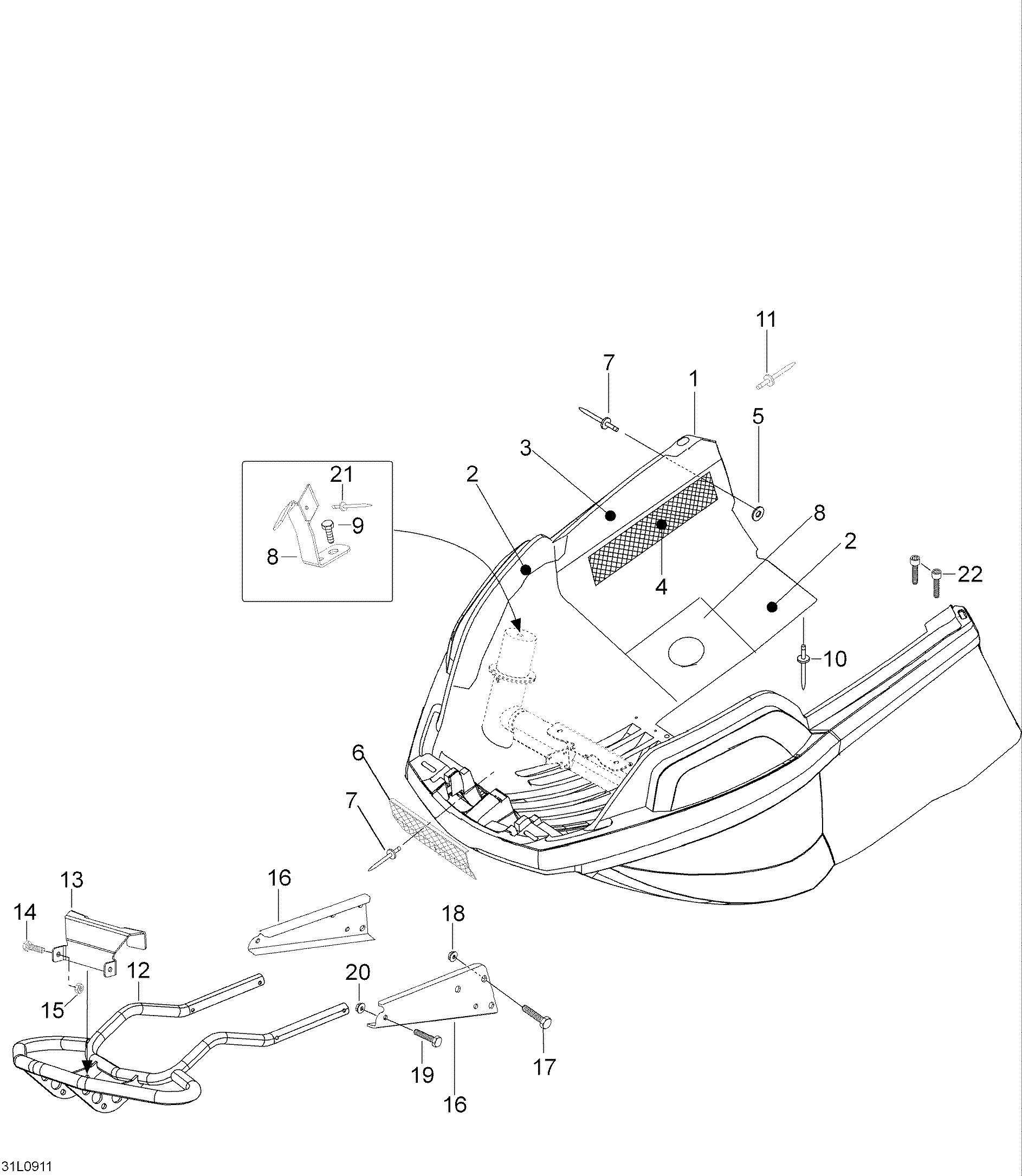

09- Bottom Pan для BRP Lynx YETI Pro V-800 (RUS) - 2009
-
№АртикулНазвание
-
1605254970 Bottom pan ass'y. Include part 1 to 2Bottom pan ass'y. Include part 1 to 2
-
2619690001 Heat protectorHeat protector
-
3605354966 Heat protectorHeat protector
-
4605354968 Side Grill R.HSide Grill R.H
-
4605354969 Side Grill L.HSide Grill L.H
-
520008 Washer A5,3Washer A5,3
-
6605255513 Grill centerGrill center
-
736009 RivetRivet
-
8605354709 L.H. BracketL.H. Bracket
-
8605354710 R.H. BracketR.H. Bracket
-
940401 Hex. screw M6 x 10Hex. screw M6 x 10
-
1036037 RivetRivet
-
1136087 RivetRivet
-
12605155851 BumperBumper
-
13605355848 Bracket, bumperBracket, bumper
-
1440037 Screw M8 x 25Screw M8 x 25
-
1533201 Elastic flanged nut M8Elastic flanged nut M8
-
16605355113 Bumper Fastening Plate L.HBumper Fastening Plate L.H
-
16605355114 Bumper Fastening Plate R.HBumper Fastening Plate R.H
-
1740002 Hex. screw M6 x 40Hex. screw M6 x 40
-
1833200 Elastic flanged nut M6Elastic flanged nut M6
-
1940036 Hex. screw M8 x 20Hex. screw M8 x 20
-
2033201 Elastic flanged nut M8Elastic flanged nut M8
-
2136108 RivetRivet
-
2240332 Allen Screw M6 x 16Allen Screw M6 x 16
