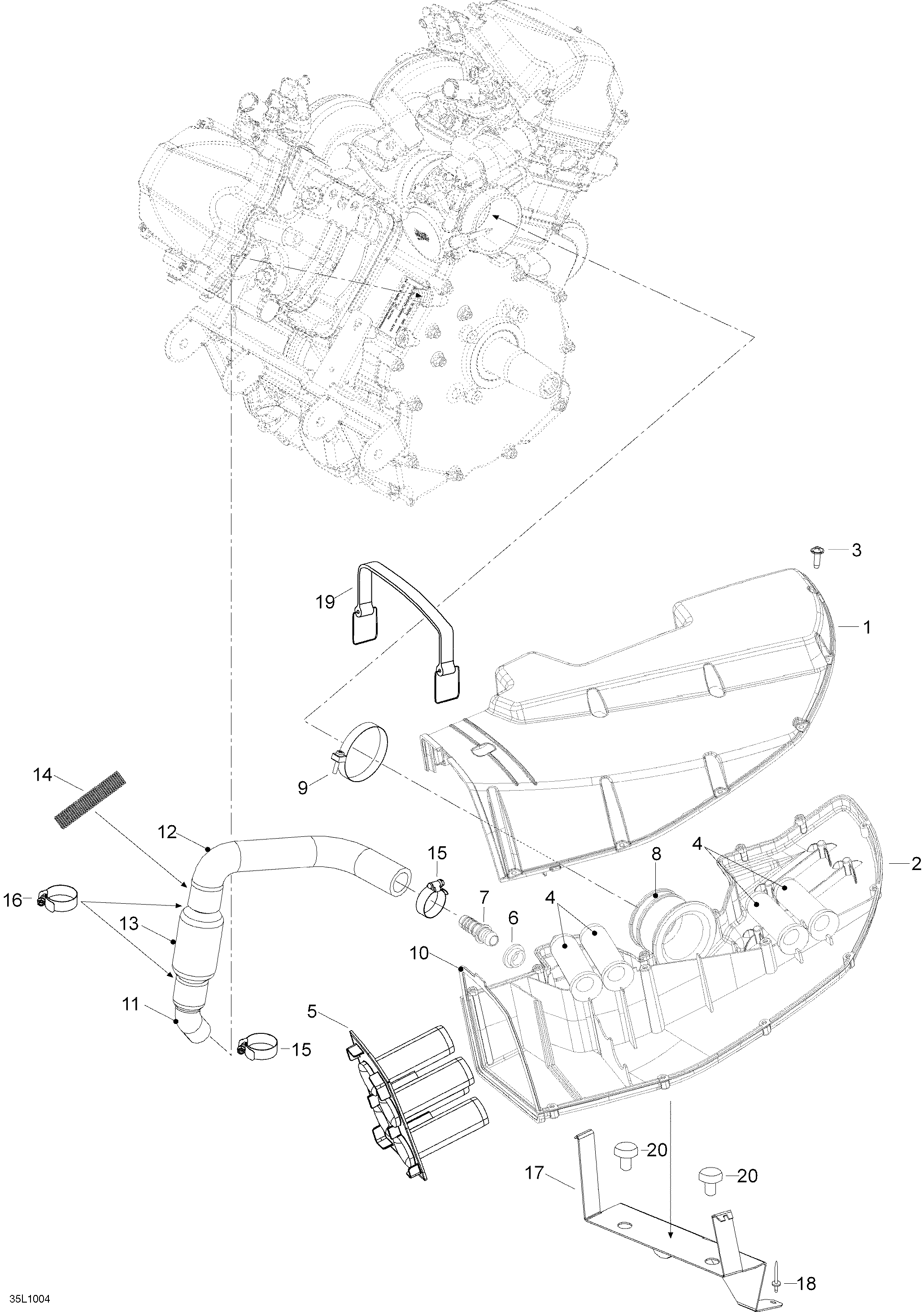

02- Air Intake System (Army) для BRP Lynx YETI Pro Army V-800 - 2010
-
№АртикулНазвание
-
-605154573 Air intake ass'y. Includes 1 to 7Air intake ass'y. Includes 1 to 7
-
1605153098 Air Intake Cover BoxAir Intake Cover Box
-
2605153099 Air intake Bottom BoxAir intake Bottom Box
-
340905 Plastofast-screw M6 x 16Plastofast-screw M6 x 16
-
45444445 PipePipe
-
5605253649 Ventury Tube SetVentury Tube Set
-
6570023000 Insulating RingInsulating Ring
-
7605453846 ConnectorConnector
-
8605353177 Intake AdaptatorIntake Adaptator
-
9508000346 Gemi ClampGemi Clamp
-
10605353517 Air FilterAir Filter
-
11605354128 HoseHose
-
12605354127 HoseHose
-
13605354126 Ventillation ChamberVentillation Chamber
-
1428036 TubingTubing
-
15605627001 ClampClamp
-
16605627004 ClampClamp
-
17605354778 Intake Silencer SupportIntake Silencer Support
-
1836108 RivetRivet
-
19515175955 Battery StrapBattery Strap
-
20570044700 Rubber BumperRubber Bumper
