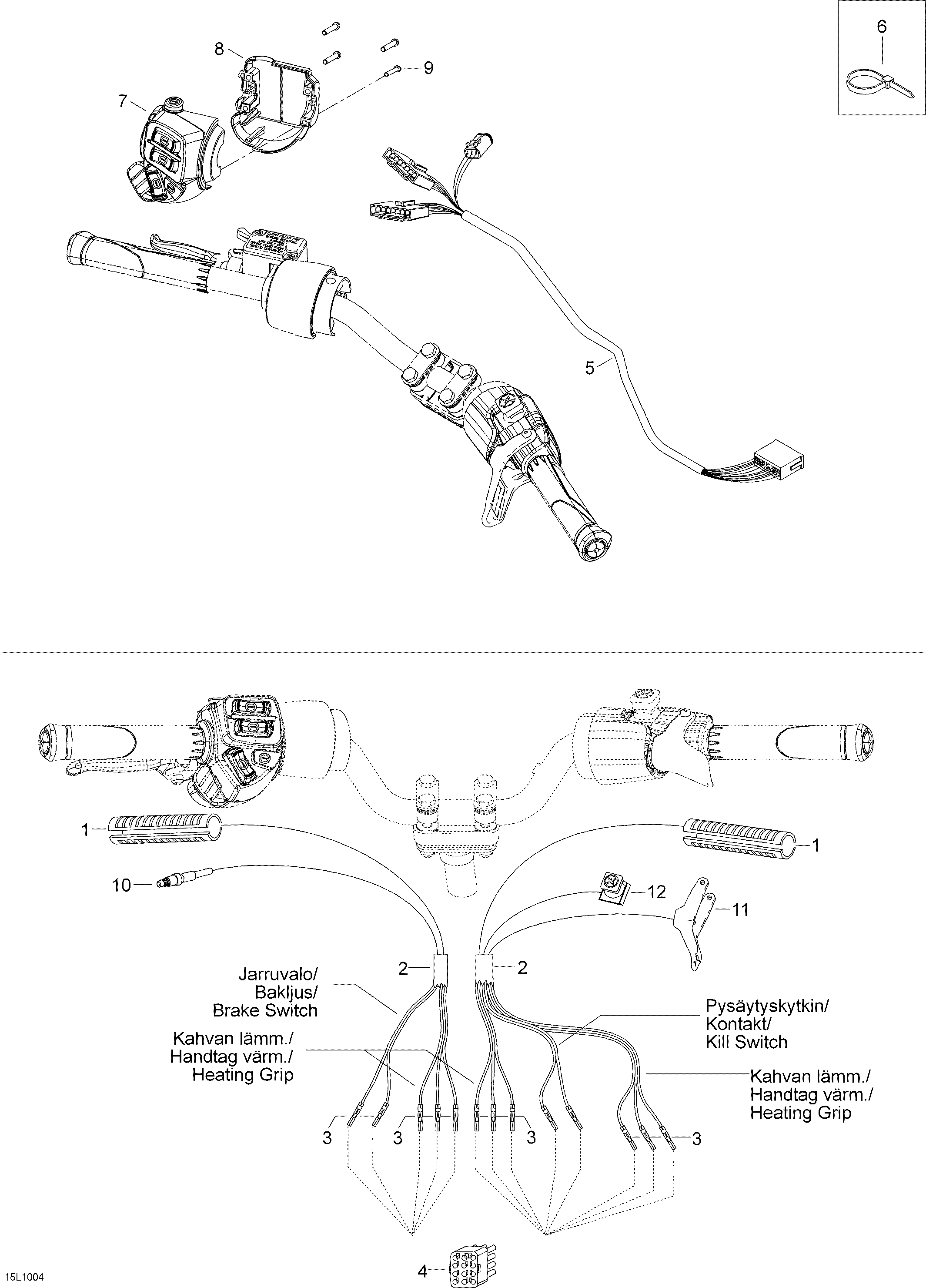

10- Steering harness (Army) для BRP Lynx YETI Pro Army V-800 - 2010
-
№АртикулНазвание
-
1515175664 Heating GripHeating Grip
-
239023 TubingTubing
-
3605642628 ConnectorConnector
-
-605154615 Main Harness. Not shown in pictureMain Harness. Not shown in picture
-
442617 Male connector housing (15-circuit)Male connector housing (15-circuit)
-
5605354616 Steering Harness Ass'ySteering Harness Ass'y
-
6414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
7605354729 LH Switch HousingLH Switch Housing
-
8515175926 Housing Switch PlateHousing Switch Plate
-
940903 Plastofast-screw 3.5 x 25Plastofast-screw 3.5 x 25
-
10507032366 MicroswitchMicroswitch
-
11512059481 Throttle HandleThrottle Handle
-
12605356055 Emergency switchEmergency switch
