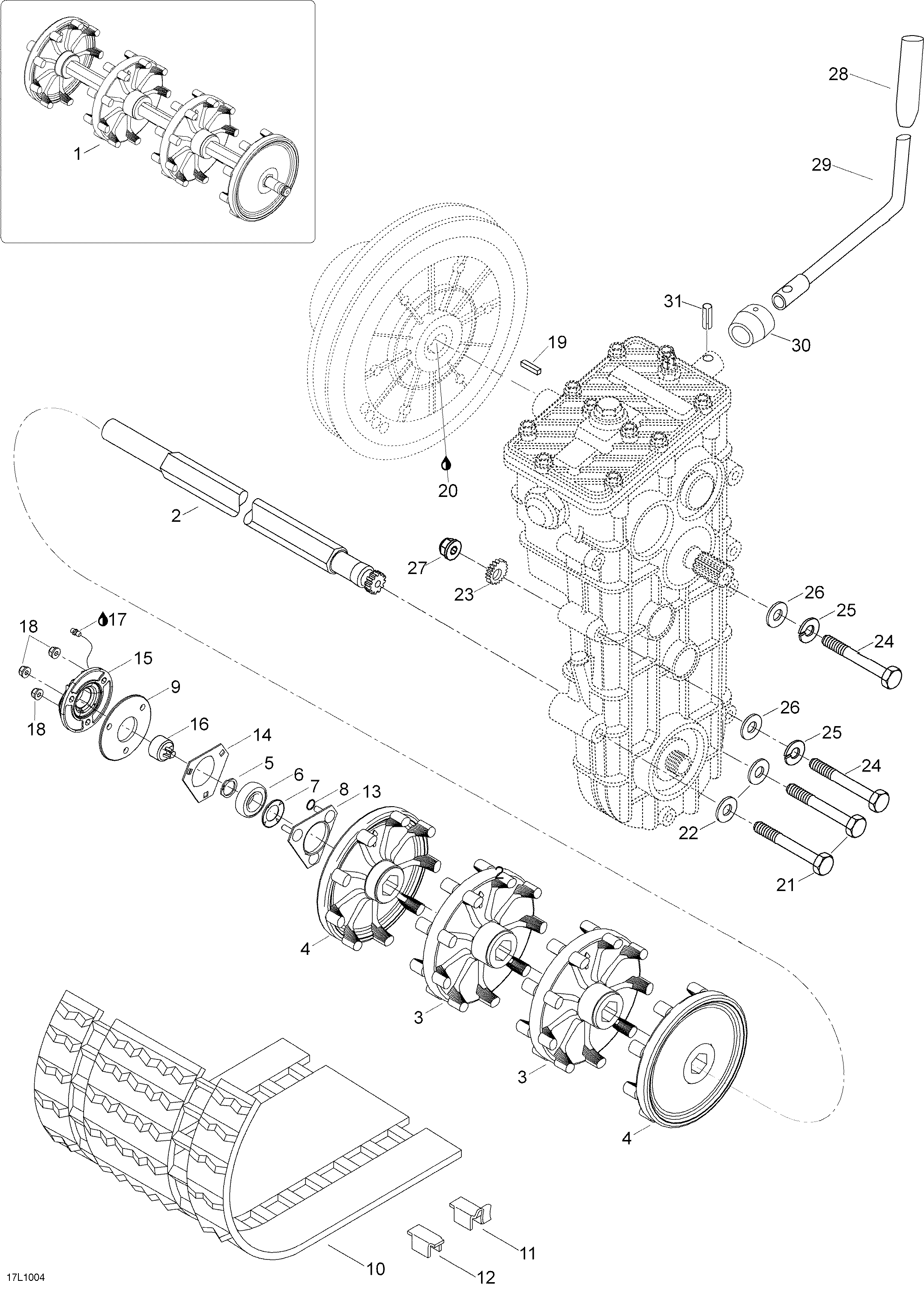

05- Drive System (Army) для BRP Lynx YETI Pro Army V-800 - 2010
-
№АртикулНазвание
-
1605253448 Drive axle ass'y. Includes 1 to 4Drive axle ass'y. Includes 1 to 4
-
2605249972 Drive AxleDrive Axle
-
3414931800 SprocketSprocket
-
4415067400 Half SprocketHalf Sprocket
-
5371910200 CirclipCirclip
-
6293350060 Ball BearingBall Bearing
-
7501017400 Bearing ProtectorBearing Protector
-
8414484400 O-RingO-Ring
-
95446641 SpacerSpacer
-
1013081 Track (31.8). Includes 10 to 12Track (31.8). Includes 10 to 12
-
115318323 Cleat guideCleat guide
-
125318322 Slide guideSlide guide
-
13504151860 Bearing HousingBearing Housing
-
14501025000 FlangeFlange
-
15504152173 Flange, SpeedoFlange, Speedo
-
16504152040 Magnetic AdaptorMagnetic Adaptor
-
17293550033 Suspension Grease, 10 X 400 GSuspension Grease, 10 X 400 G
-
1833201 Elastic flanged nut M8Elastic flanged nut M8
-
19418763 KeyKey
-
20293800070 Loctite 767, Antiseize Lubricant, 8 ozLoctite 767, Antiseize Lubricant, 8 oz
-
2140089 Hex. screw M8 x 75Hex. screw M8 x 75
-
22234081410 Flat Washer 8 mmFlat Washer 8 mm
-
23605454017 ToolsTools
-
2440012 Hex. Screw M8 x 80Hex. Screw M8 x 80
-
2520014 Lock washer M8Lock washer M8
-
26234082410 Flat Washer 8 mmFlat Washer 8 mm
-
2733201 Elastic flanged nut M8Elastic flanged nut M8
-
2828247 ButtonButton
-
29605350153 Shift HandleShift Handle
-
305446699 ConeCone
-
3141008 Spring keySpring key
