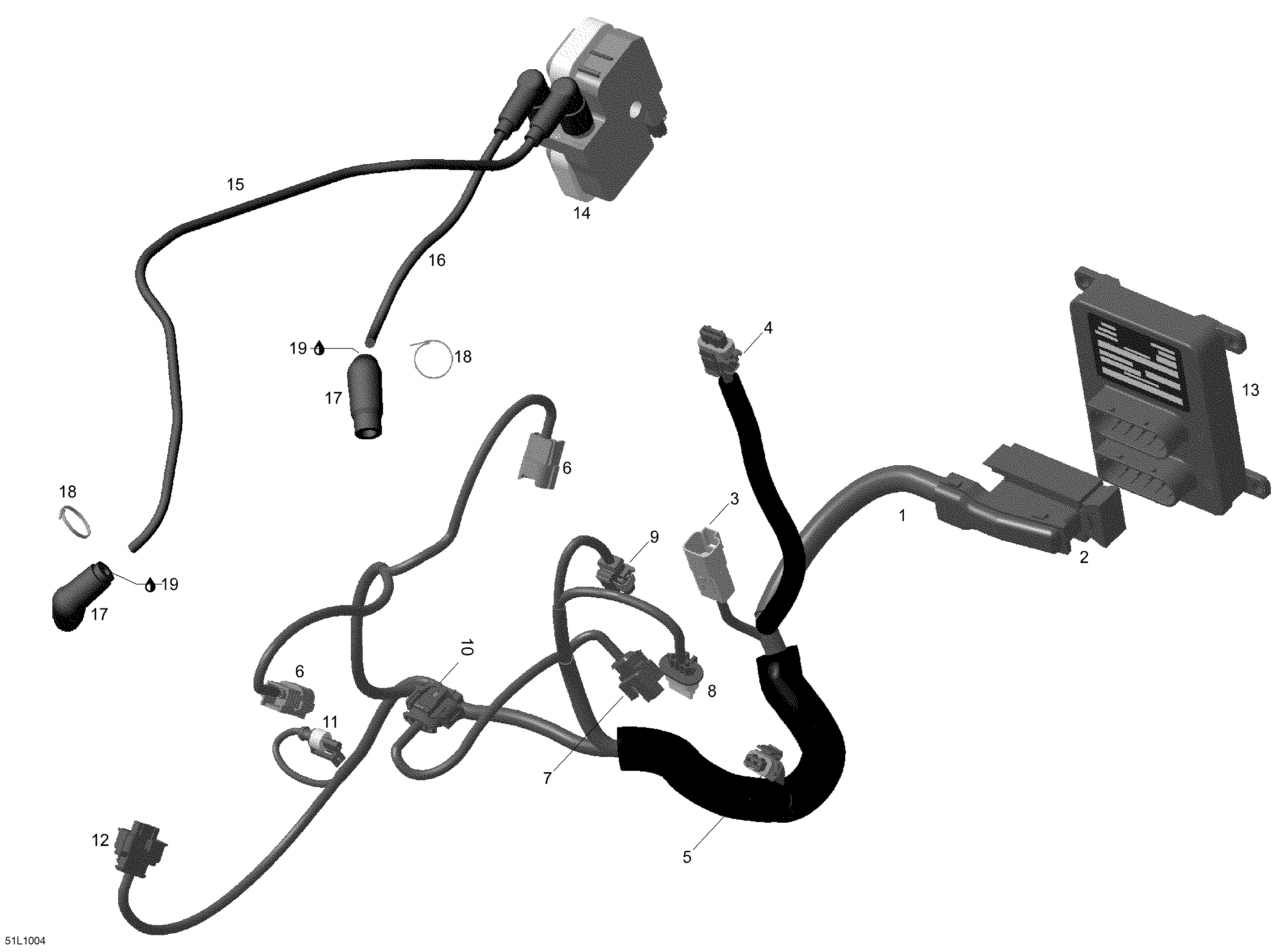

10- Engine harness and Electronic Module (Army) для BRP Lynx YETI Pro Army V-800 - 2010
-
№АртикулНазвание
-
1420665243 Wiring Harness. Includes 1 - 12Wiring Harness. Includes 1 - 12
-
2420664450 ECM ConnectorECM Connector
-
13420666207 Electronic ModuleElectronic Module
-
14278001546 Ignition CoilIgnition Coil
-
15420665330 Spark Plug Cable, 610 mm, PTO SideSpark Plug Cable, 610 mm, PTO Side
-
16420664305 Cable Ass’Y 245 mm PTOCable Ass’Y 245 mm PTO
-
17420265240 Spark Plug ConnectorSpark Plug Connector
-
18420866710 ClampClamp
-
19293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
