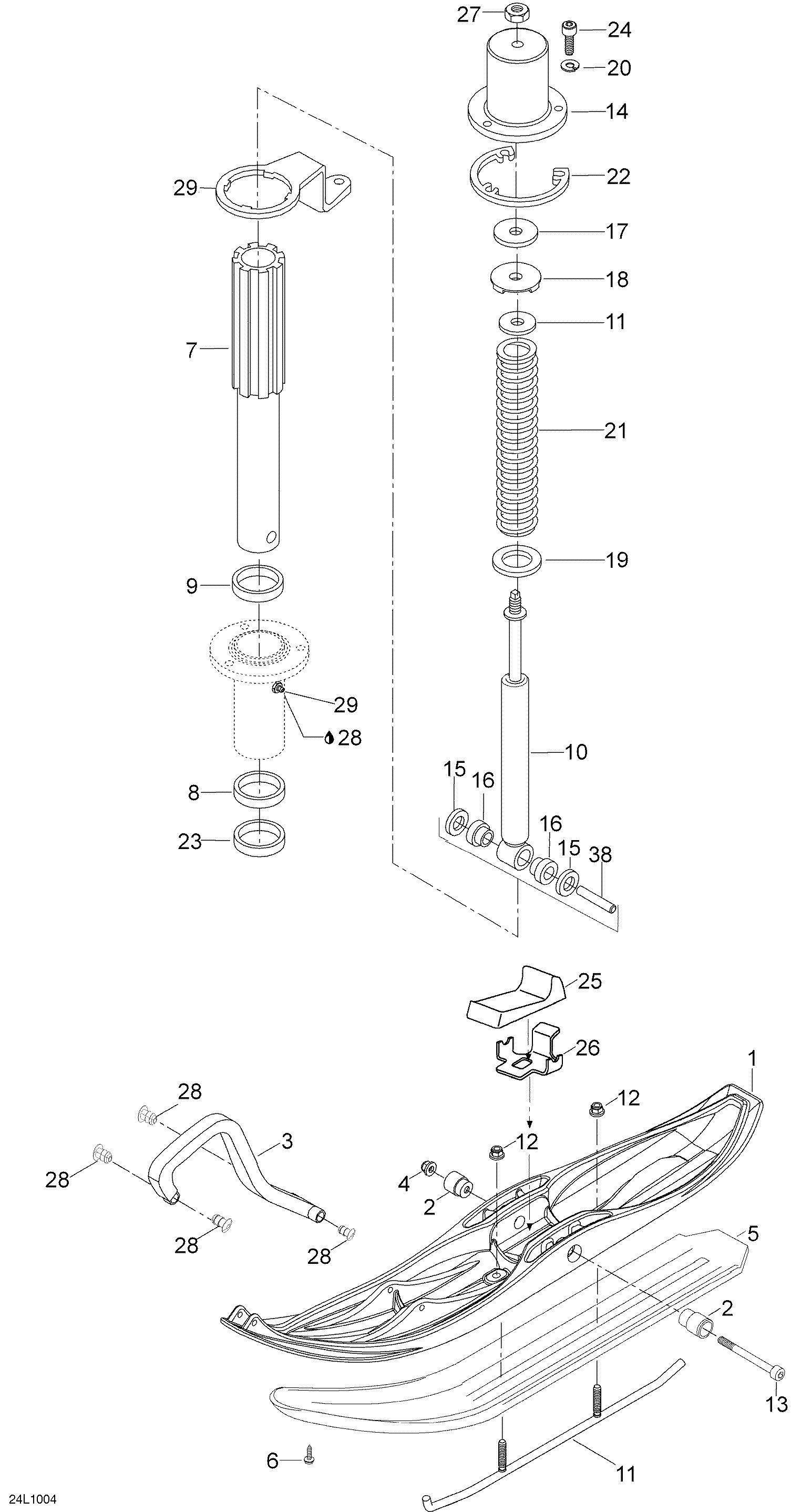

07- Front Suspension And Ski (Army) для BRP Lynx YETI Pro Army V-800 - 2010
-
№АртикулНазвание
-
1605153775 Plastic Ski Ass'y. Includes 1 to 2Plastic Ski Ass'y. Includes 1 to 2
-
2605348392 BushingBushing
-
3505070963 Handle, BlackHandle, Black
-
433074 Elastic flanged nut M10Elastic flanged nut M10
-
5605153964 Ski LinerSki Liner
-
6605640019 Plastofast Screw 6x18Plastofast Screw 6x18
-
75245362 Ski-legSki-leg
-
8414803200 Lower CushionLower Cushion
-
9414803100 Upper CushionUpper Cushion
-
1023134 ShockShock
-
11619400006 Carbide Ski Runner Ass'y. Includes 11 to 12Carbide Ski Runner Ass'y. Includes 11 to 12
-
1233074 Elastic flanged nut M10Elastic flanged nut M10
-
1340225 Socket head screw M10 x 140Socket head screw M10 x 140
-
14605249284 Painted CoverPainted Cover
-
15605448594 BushingBushing
-
16572034500 CushionCushion
-
17605455680 WasherWasher
-
18605354835 Rubber BumberRubber Bumber
-
19549493 Bearing plateBearing plate
-
2020014 Lock washer A8Lock washer A8
-
21605625001 SpringSpring
-
22503145600 SpacerSpacer
-
23316373 Oil sealOil seal
-
2440305 Socket head screw M8 x 20Socket head screw M8 x 20
-
25605348439 Rubber StopperRubber Stopper
-
26605348437 Plate SupportPlate Support
-
2733023 Elastic stop nut M10Elastic stop nut M10
-
28293550033 Suspension Grease, 10 X 400 GSuspension Grease, 10 X 400 G
-
29605353422 Steering Arm RHSteering Arm RH
-
29605353423 Steering Arm LHSteering Arm LH
