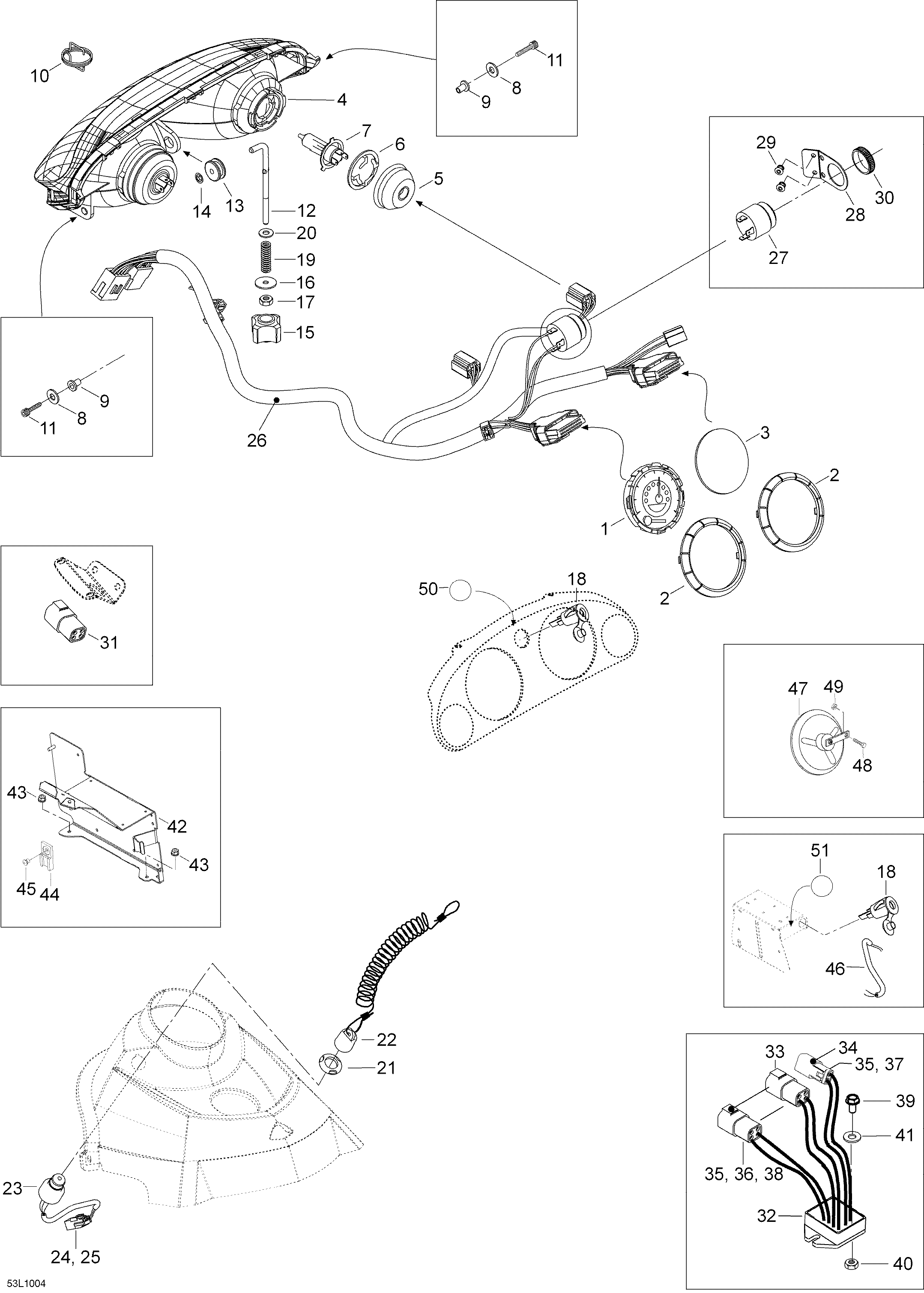

10- Electrical Acessories (Army) для BRP Lynx YETI Pro Army V-800 - 2010
-
№АртикулНазвание
-
1515176477 SpeedometerSpeedometer
-
2515176242 Gauge RingGauge Ring
-
3515175901 Bottom RingBottom Ring
-
4515176311 Halogen Headlamp Ass'y. Includes 4 to 7Halogen Headlamp Ass'y. Includes 4 to 7
-
5515175911 CoverCover
-
6515176385 Bulb HolderBulb Holder
-
7515176274 Halogen Bulb, 60/55 W, 12 VHalogen Bulb, 60/55 W, 12 V
-
820008 Washer 5,3 mmWasher 5,3 mm
-
9250100018 Nut M5Nut M5
-
105447238 SpringSpring
-
1140235 Hex. screw M5 x 35Hex. screw M5 x 35
-
12605450023 Adjuster RodAdjuster Rod
-
13415100800 GrommetGrommet
-
1436084 Nut PushNut Push
-
15515175548 HandleHandle
-
1620038 WasherWasher
-
1733010 Elastic stop nut M6Elastic stop nut M6
-
18605352915 Power outlet kit (Revo)Power outlet kit (Revo)
-
19415100600 SpringSpring
-
2020003 Washer A6,4Washer A6,4
-
21278000508 Safety Switch NutSafety Switch Nut
-
22515176936 DESS CapDESS Cap
-
23515176815 Dess Switch. Includes 23 to 25Dess Switch. Includes 23 to 25
-
24515175232 Male TerminalMale Terminal
-
25515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
26605355923 Harness Ass'yHarness Ass'y
-
27515176035 HornHorn
-
285447941 BracketBracket
-
2936005 RivetRivet
-
30414805101 Plastic NutPlastic Nut
-
31605355837 CapacitorCapacitor
-
32515176243 Voltage Regulator. Includes 32 to 38Voltage Regulator. Includes 32 to 38
-
33278001477 Female Housing, 4 CircuitsFemale Housing, 4 Circuits
-
34278001674 Male Terminal Housing, 2 CircuitsMale Terminal Housing, 2 Circuits
-
35515175568 Male TerminalMale Terminal
-
36278001478 Male Wedge, 4 CircuitsMale Wedge, 4 Circuits
-
37278001672 Male Lock, 2 CircuitsMale Lock, 2 Circuits
-
38293000052 Sealing CapSealing Cap
-
3940030 Screw M6 x 20Screw M6 x 20
-
4033010 Elastic stop nut M6Elastic stop nut M6
-
41234062410 Flat Washer 6 mmFlat Washer 6 mm
-
42605353300 Device PlateDevice Plate
-
43233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
44515175917 ClipClip
-
4536005 RivetRivet
-
46605354674 Power Outlet HarnessPower Outlet Harness
-
47515176035 HornHorn
-
4840029 Hex. Screw M6 x 16Hex. Screw M6 x 16
-
49233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
50605456007 Instruction label (power outlet front)Instruction label (power outlet front)
-
51605456008 Instruction label (power outlet rear)Instruction label (power outlet rear)
