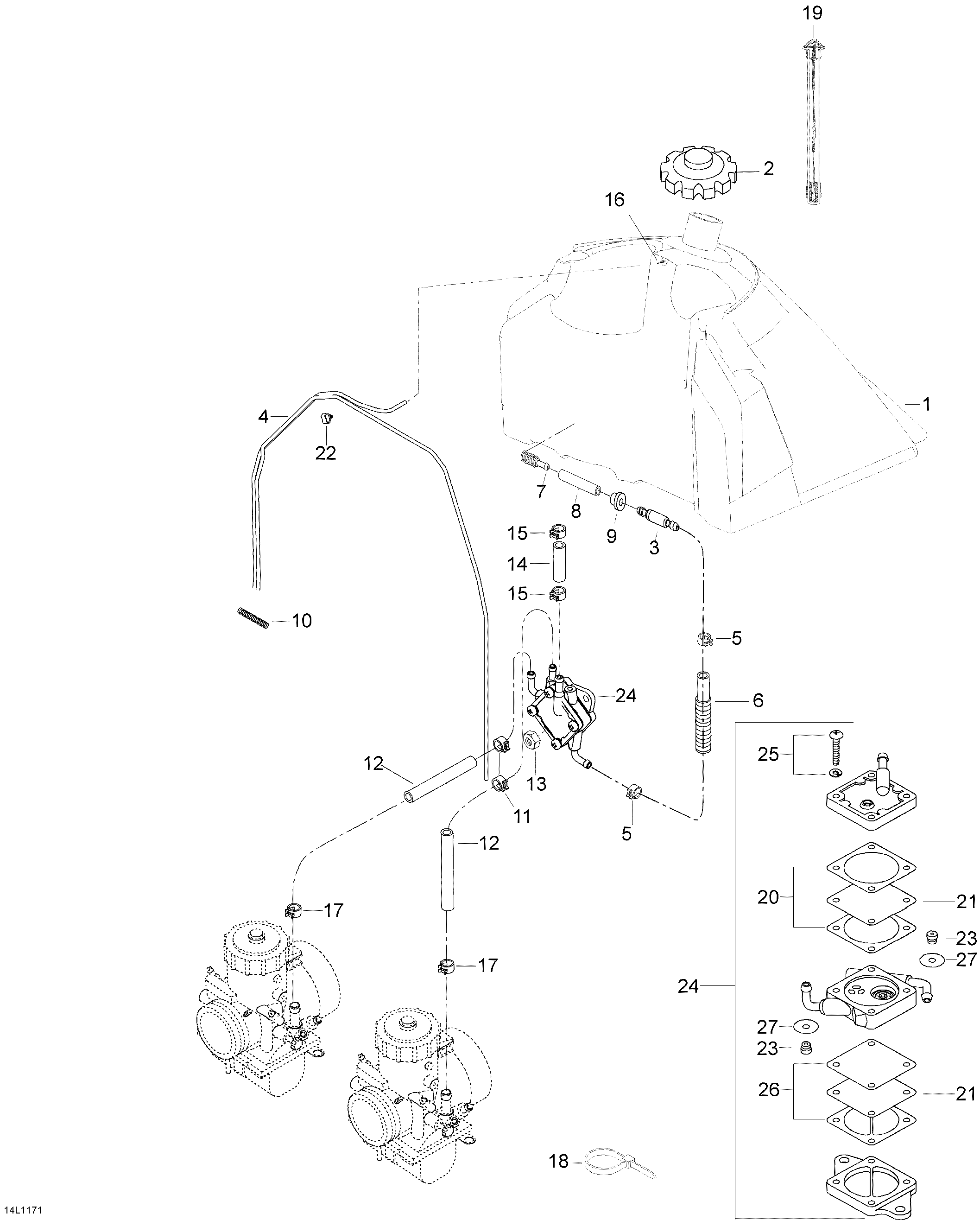

02- Fuel System для BRP Lynx YETI 550 - 2011
-
№АртикулНазвание
-
1605154804 Fuel TankFuel Tank
-
2580259400 CapCap
-
3414872700 Male ConnectorMale Connector
-
439035 Vent hoseVent hose
-
5513032923 Tube ClampTube Clamp
-
627127 TubingTubing
-
7414872100 Fuel FilterFuel Filter
-
8513033332 Tank hoseTank hose
-
9707800347 GrommetGrommet
-
1025003 SpringSpring
-
11414420700 Spring ClipSpring Clip
-
12415080200 Hose, PolyurethaneHose, Polyurethane
-
1333010 NutNut
-
14605355647 Hose 1/4, 350 mmHose 1/4, 350 mm
-
15513032979 Spring ClampSpring Clamp
-
16404127600 NippleNipple
-
17414655700 Spring ClampSpring Clamp
-
18414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
19605351982 Fuel GaugeFuel Gauge
-
20404902400 GasketGasket
-
22707800347 GrommetGrommet
-
23275500042 ValveValve
-
2419113 Fuel pump ass'yFuel pump ass'y
-
26404902300 GasketGasket
-
27404902100 GrommetGrommet
