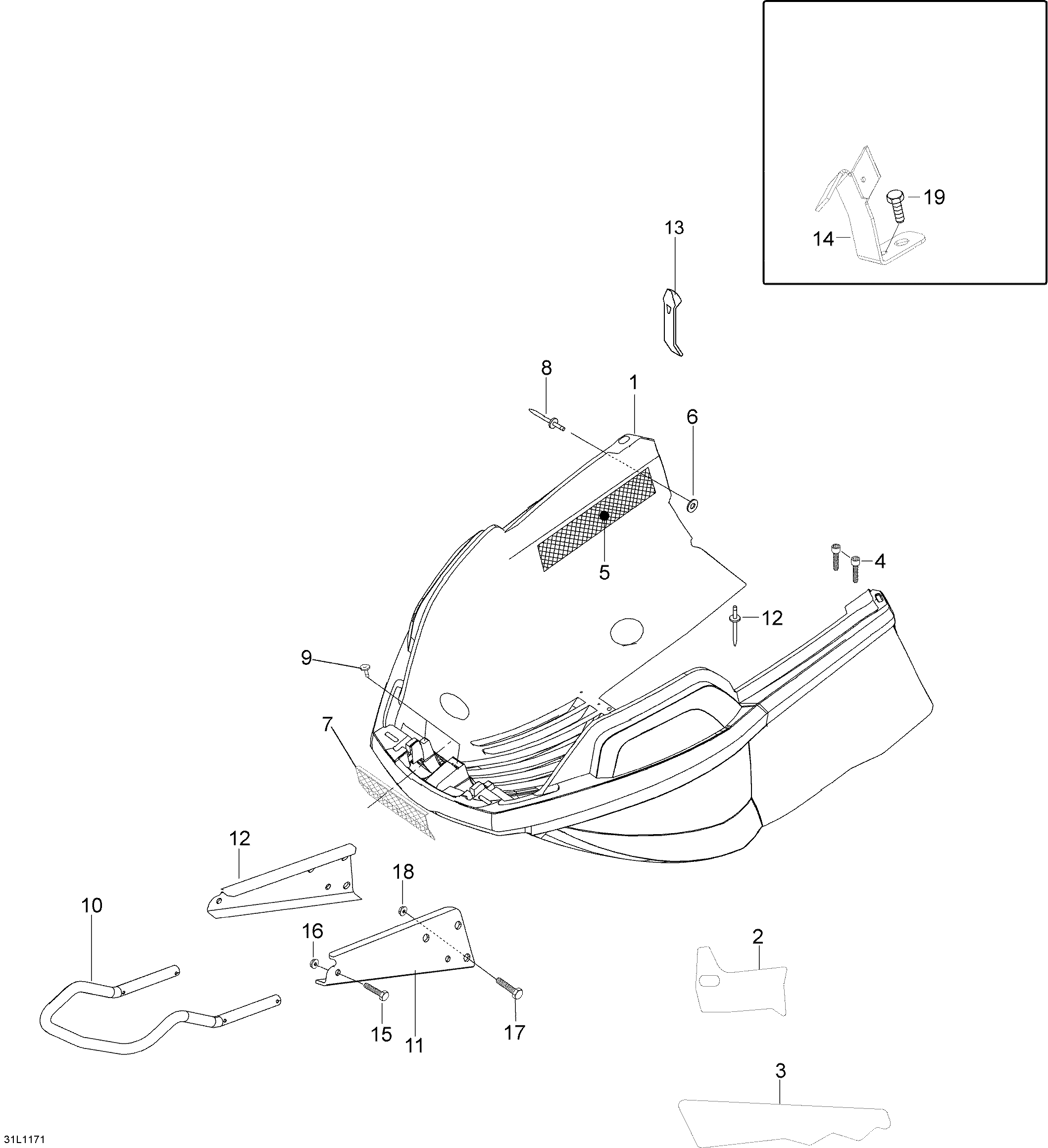

09- Bottom Pan для BRP Lynx YETI 550 - 2011
-
№АртикулНазвание
-
1605255777 Bottom Pan Ass'yBottom Pan Ass'y
-
2605255744 Bottom Pan Isolation RHBottom Pan Isolation RH
-
2605255746 Bottom Pan Isolation LHBottom Pan Isolation LH
-
3605255745 Bottom Pan Isolation RHBottom Pan Isolation RH
-
440332 Screw M6 x 16Screw M6 x 16
-
5605354969 LH Side GrillLH Side Grill
-
620008 Washer 5,3 mmWasher 5,3 mm
-
7605255513 Front GrillFront Grill
-
836009 RivetRivet
-
940847 Wronic-ruuvi MUP 4,2x13Wronic-ruuvi MUP 4,2x13
-
10605255112 BumperBumper
-
11605355113 LH Bumper PlateLH Bumper Plate
-
12605355114 RH Bumper PlateRH Bumper Plate
-
13517302152 Hood LatchHood Latch
-
14605354709 LH BracketLH Bracket
-
14605354710 RH BracketRH Bracket
-
1540002 Hex. screw M6 x 40Hex. screw M6 x 40
-
16233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
1740036 Hex. screw M8 x 20Hex. screw M8 x 20
-
18233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
1940401 ScrewScrew
