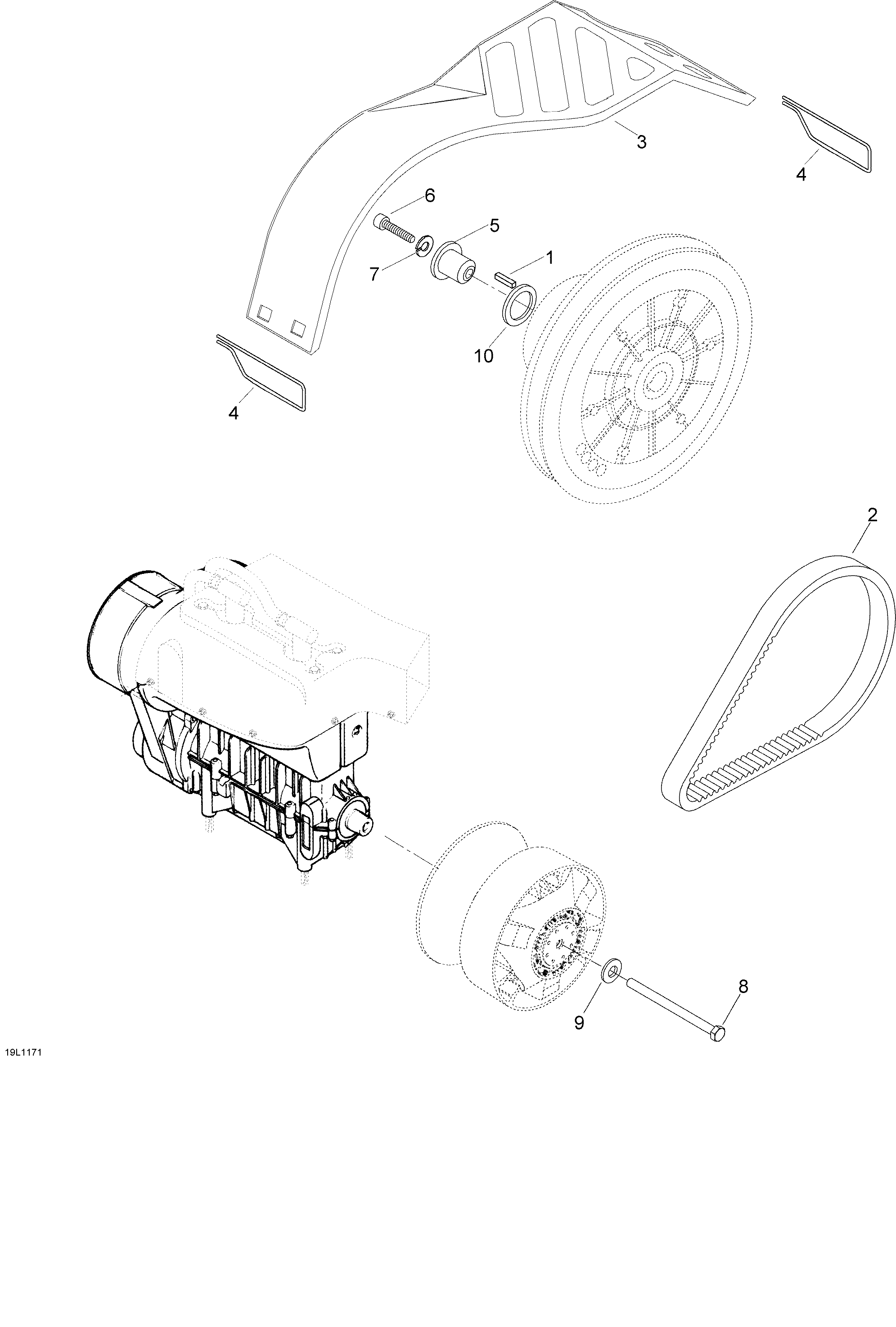

05- Pulley System для BRP Lynx YETI 550 - 2011
-
№АртикулНазвание
-
1418763 KeyKey
-
2605348425 Drive BeltDrive Belt
-
3605149860 Belt GuardBelt Guard
-
45442726 PinPin
-
55443201 Shaft extensionShaft extension
-
6205084544 Socket Head Screw M8 X 45. SWTSocket Head Screw M8 X 45. SWT
-
720014 Lock washer A8Lock washer A8
-
8417113800 BoltBolt
-
9250200005 Conical Spring Washer M12Conical Spring Washer M12
-
103125351 Shim. SWTShim. SWT
