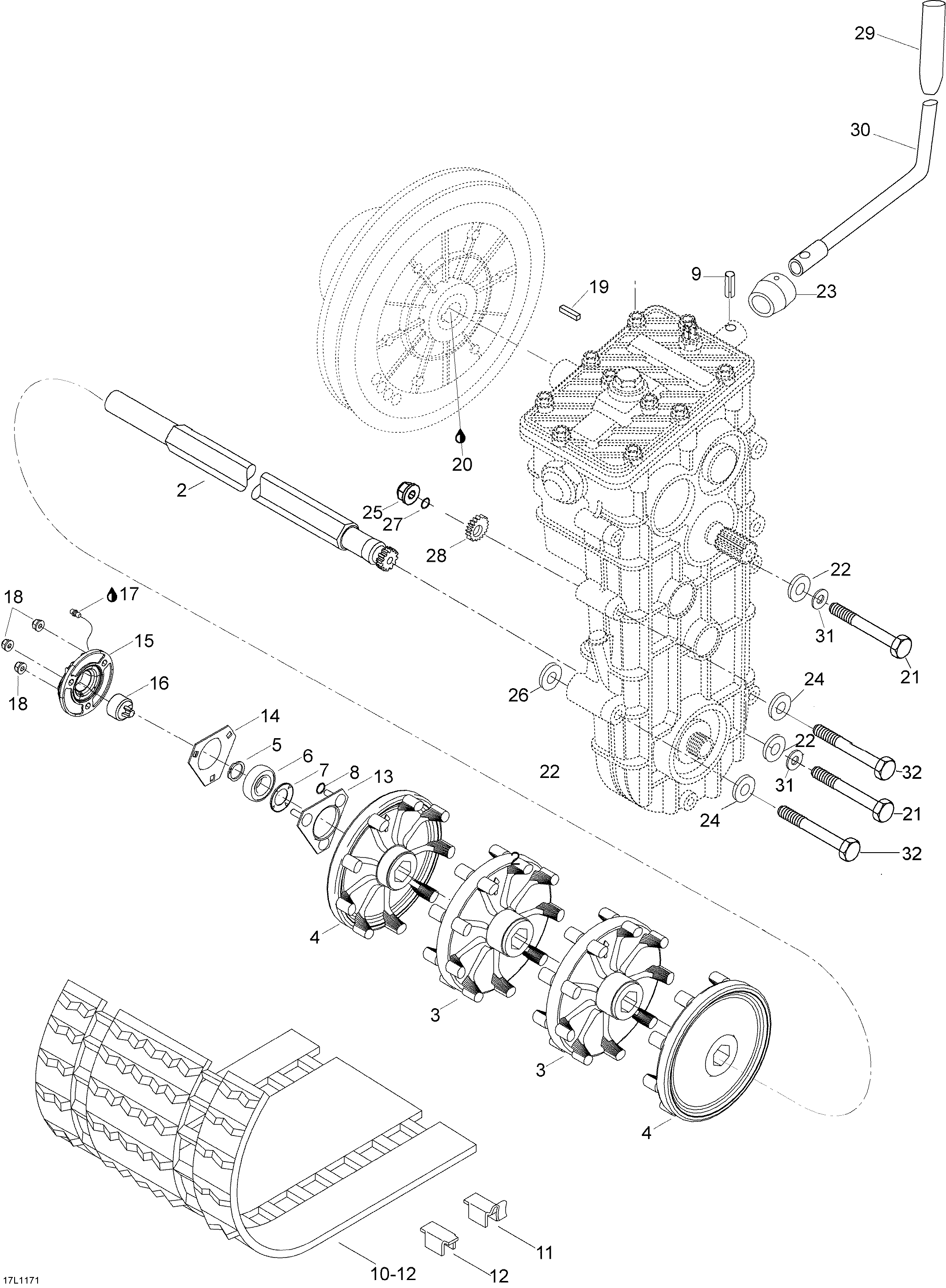

05- Drive Axle And Track для BRP Lynx YETI 550 - 2011
-
№АртикулНазвание
-
1605253105 Drive axle ass'y. Includes 1 to 4Drive axle ass'y. Includes 1 to 4
-
2605253104 Drive AxleDrive Axle
-
3414931800 SprocketSprocket
-
4415067400 Half SprocketHalf Sprocket
-
5371910200 CirclipCirclip
-
6293350060 Ball BearingBall Bearing
-
7501017400 Bearing ProtectorBearing Protector
-
8414484400 O-RingO-Ring
-
941008 Spring keySpring key
-
1013070 Track ass'y. Includes 10 to 12Track ass'y. Includes 10 to 12
-
115318323 Cleat guideCleat guide
-
13504151860 Bearing HousingBearing Housing
-
14501025000 FlangeFlange
-
15504152173 Flange, SpeedoFlange, Speedo
-
16504152040 Magnetic AdaptorMagnetic Adaptor
-
17293550033 Suspension Grease, 10 X 400 GSuspension Grease, 10 X 400 G
-
18233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
19418763 KeyKey
-
20293800070 Loctite 767, Antiseize Lubricant, 8 ozLoctite 767, Antiseize Lubricant, 8 oz
-
2140012 Hex, screw M8 x 80Hex, screw M8 x 80
-
22234081410 Flat Washer 8 mmFlat Washer 8 mm
-
235446699 SleeveSleeve
-
24234082410 Flat Washer 8 mmFlat Washer 8 mm
-
25233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
2620077 WasherWasher
-
27506151140 O-RingO-Ring
-
28605454017 ToolsTools
-
2928247 Shift buttonShift button
-
30605350153 Shift HandleShift Handle
-
3120014 Spring washerSpring washer
-
32207089044 Hex. Screw M8 X 90Hex. Screw M8 X 90
