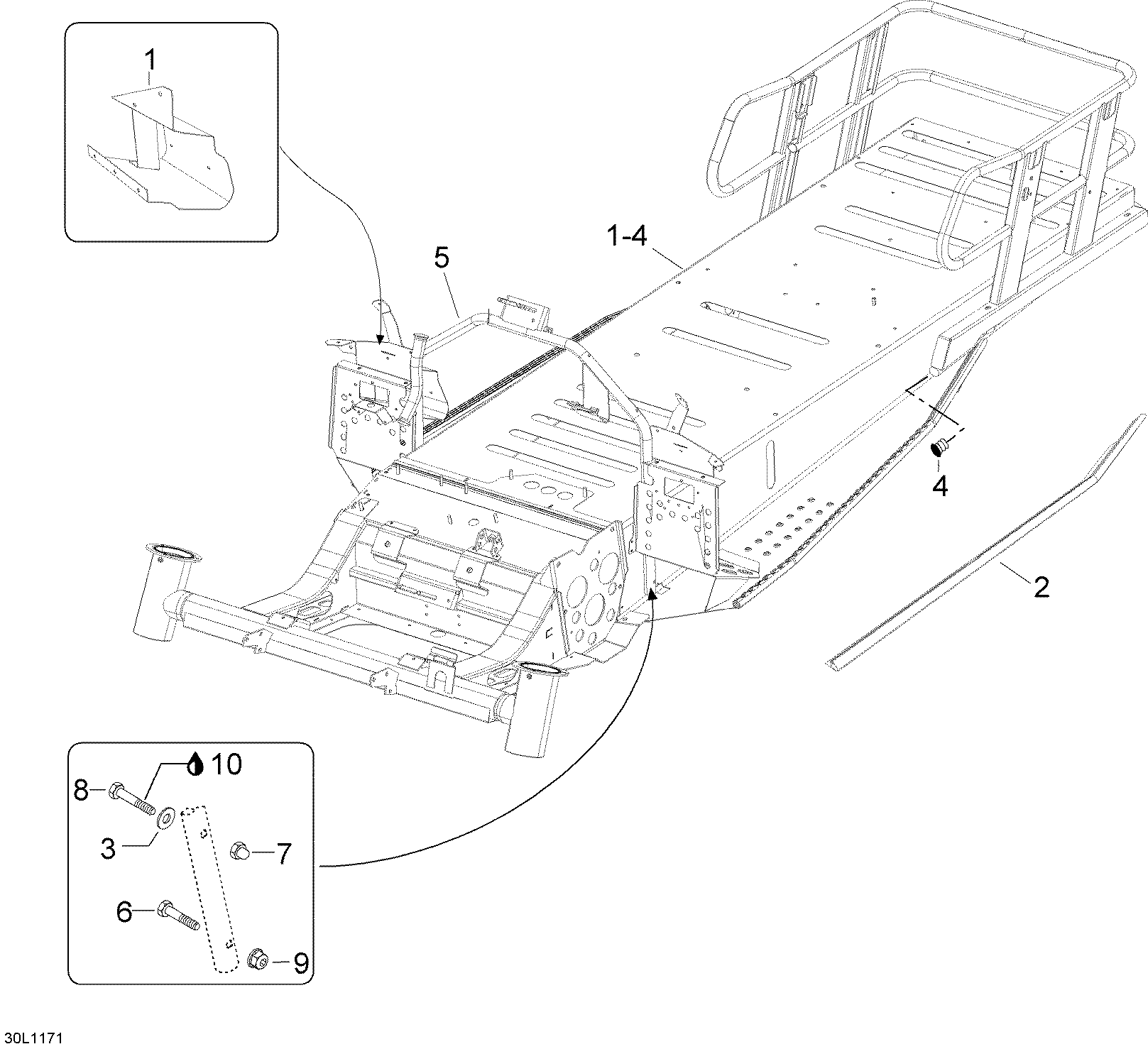

09- Frame для BRP Lynx YETI 550 - 2011
-
№АртикулНазвание
-
-605154831 Frame Ass'y. Includes 1 to 4Frame Ass'y. Includes 1 to 4
-
1605350839 RH Toe RestRH Toe Rest
-
1605350840 LH Toe RestLH Toe Rest
-
2605255625 LH ReinforcementLH Reinforcement
-
2605255626 RH ReinforcementRH Reinforcement
-
320003 Washer A6,4Washer A6,4
-
428210 PlugPlug
-
5605155568 Welded Steering SupportWelded Steering Support
-
640003 Hex. screw M6 x 35Hex. screw M6 x 35
-
733051 Nut M6Nut M6
-
840002 Hex. screw M6 x 40Hex. screw M6 x 40
-
9233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
10293800060 Loctite 243, 10 mlLoctite 243, 10 ml
