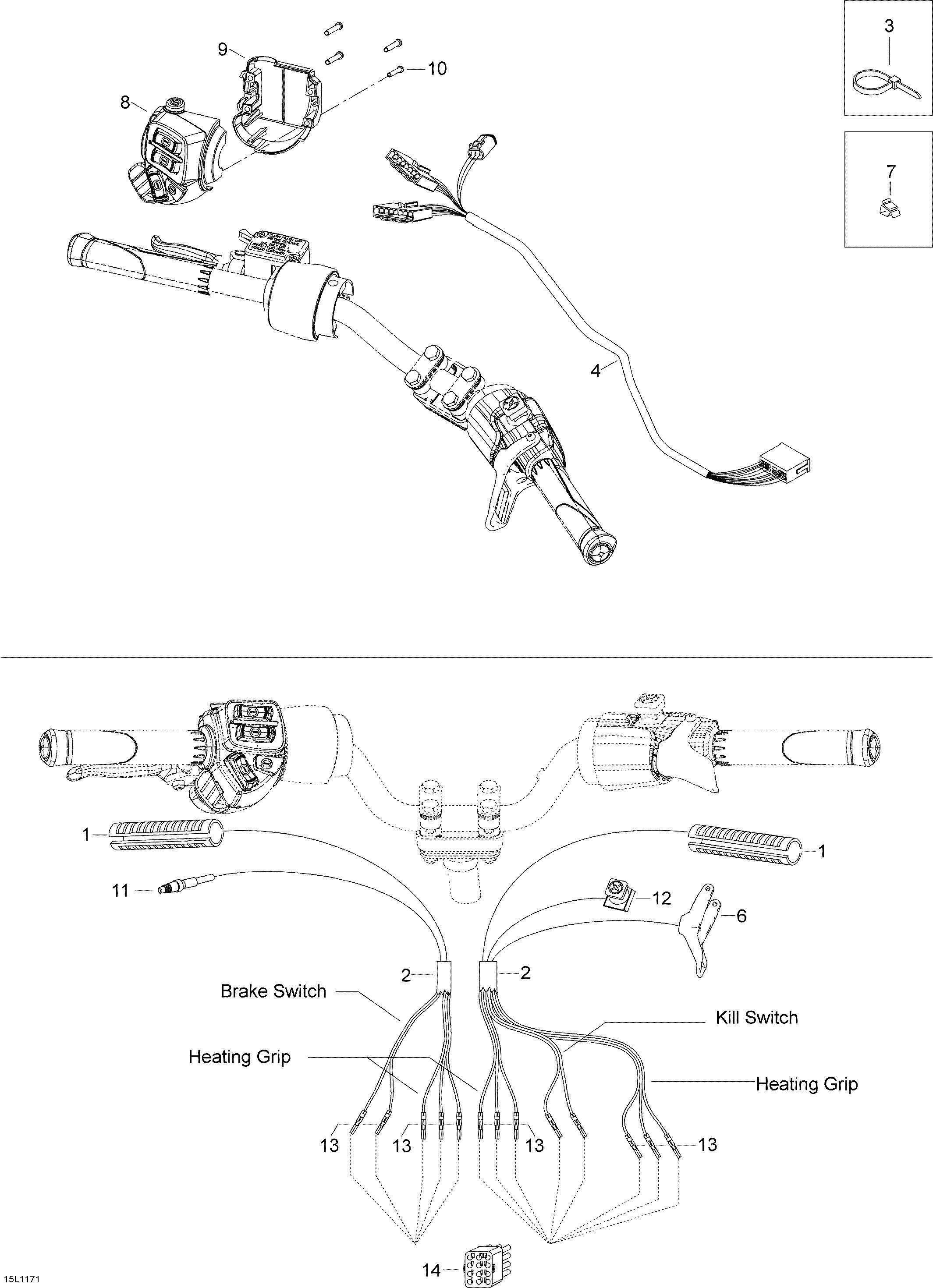

10- Steering Harness для BRP Lynx YETI 550 - 2011
-
№АртикулНазвание
-
1515176139 Heater ElementHeater Element
-
239023 TubingTubing
-
3293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
4605353266 Steering harnessSteering harness
-
5605354843 Main Harness. Not shown in the pictureMain Harness. Not shown in the picture
-
6512060214 Handle AssyHandle Assy
-
7414227300 ClipClip
-
8515177028 Switch housingSwitch housing
-
9515175926 Housing Switch PlateHousing Switch Plate
-
1040903 Plastofast-screw 3.5 x 25Plastofast-screw 3.5 x 25
-
11507032366 MicroswitchMicroswitch
-
12515177061 Kill SwitchKill Switch
-
13605642628 ConnectorConnector
-
1442617 Male connector housing (15-circuit)Male connector housing (15-circuit)
