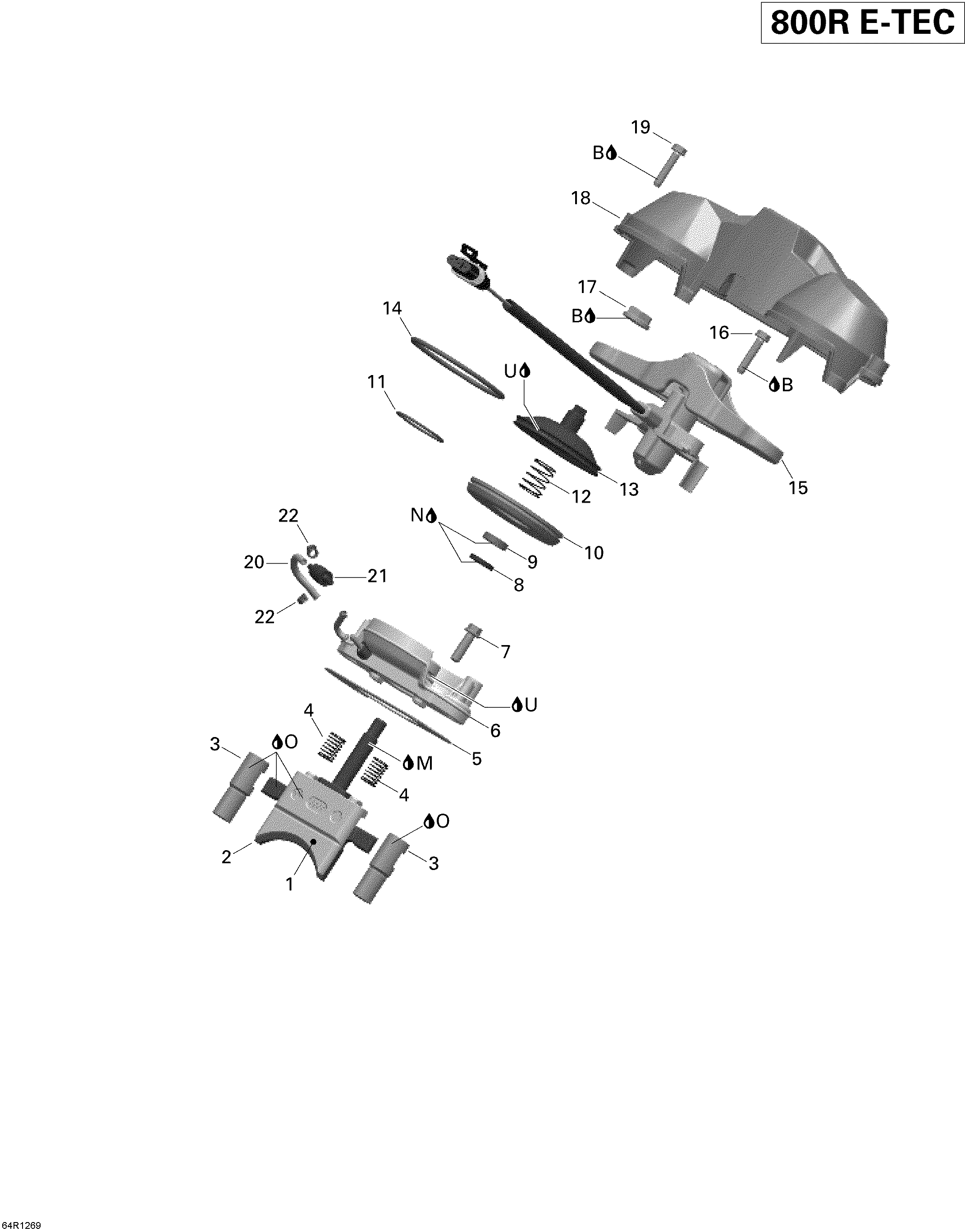

01- 3D Rave для BRP Lynx Rave RE 800R E-TEC - 2012
-
№АртикулНазвание
-
1420854900 Upper Exhaust ValveUpper Exhaust Valve
-
2420854908 Lower Exhaust ValveLower Exhaust Valve
-
3420854890 Exhaust ValveExhaust Valve
-
4420238556 SpringSpring
-
5420430032 GasketGasket
-
6420854888 Valve HousingValve Housing
-
7420440207 Flanged Torx Screw M6 X 20Flanged Torx Screw M6 X 20
-
8420431380 Gasket RingGasket Ring
-
9420950730 Oil SealOil Seal
-
10420260725 BellowsBellows
-
11420838255 Hose SpringHose Spring
-
12420238557 SpringSpring
-
13420854442 Valve CoverValve Cover
-
14420939285 Hose SpringHose Spring
-
15420854088 Position SensorPosition Sensor
-
16420241270 Hex. Taptite Screw M5 X 25Hex. Taptite Screw M5 X 25
-
17420942190 Nut M12 X 1.5Nut M12 X 1.5
-
18420910820 Rave CoverRave Cover
-
19420241270 Hex. Taptite Screw M5 X 25Hex. Taptite Screw M5 X 25
-
20414413800 Oil HoseOil Hose
-
21420956515 Check Valve Ass’yCheck Valve Ass’y
-
22420851508 ClampClamp
-
B293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
U420297906 Sealing Compound, 30mlSealing Compound, 30ml
