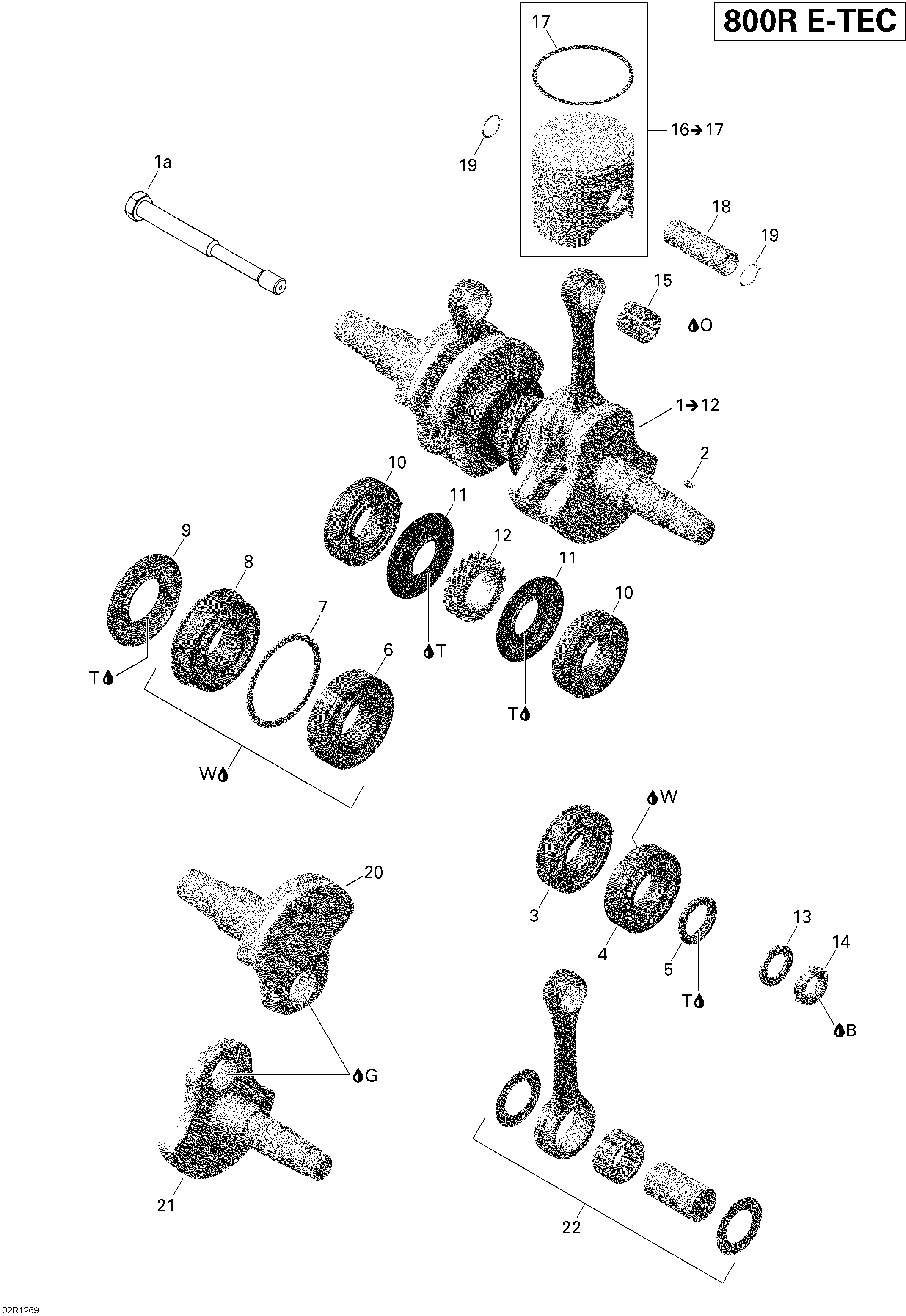

01- Crankshaft And Pistons для BRP Lynx Rave RE 800R E-TEC - 2012
![](/wa-data/public/shop/sheme/bombardier/lynx/9ad868e2-8a96-47bc-8aa0-cc082781aa46.png)
-
№АртикулНазвание
-
1420893099 Crankshaft Ass'y. Includes 1 to 12Crankshaft Ass'y. Includes 1 to 12
-
1a417300409 TRA 7 Bolt (M14 X 153.5 mm)TRA 7 Bolt (M14 X 153.5 mm)
-
2420246015 Woodruff KeyWoodruff Key
-
3420832175 Ball BearingBall Bearing
-
4420832575 Ball BearingBall Bearing
-
5420931793 Oil SealOil Seal
-
6420832602 Ball BearingBall Bearing
-
7420926190 WasherWasher
-
8420832702 Ball BearingBall Bearing
-
9420931284 Oil SealOil Seal
-
10420832175 Ball BearingBall Bearing
-
11420931455 Oil SealOil Seal
-
12420834565 Central GearCentral Gear
-
13420945759 Lock Washer, 22 mmLock Washer, 22 mm
-
14420842239 Hex. Nut, M22 X 1.5Hex. Nut, M22 X 1.5
-
15420832030 Needle BearingNeedle Bearing
-
16420893314 Piston Ass'y, 81.852 mm. Includes 16 to 17Piston Ass'y, 81.852 mm. Includes 16 to 17
-
17420815416 Semi-Trapez RingSemi-Trapez Ring
-
18420916480 Piston PinPiston Pin
-
19420845467 Piston CirclipPiston Circlip
-
20420819308 Crankshaft, PTO SideCrankshaft, PTO Side
-
21420819440 Crankshaft, MAG SideCrankshaft, MAG Side
-
22420892568 Rod Repair Kit, MAG SideRod Repair Kit, MAG Side
-
22420892569 Rod Repair Kit, PTO SideRod Repair Kit, PTO Side
-
B293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
G413711400 Loctite 648, 10 mlLoctite 648, 10 ml
-
T420899271 Petamo Grease, GHY133N, 400 gPetamo Grease, GHY133N, 400 g
-
W293550021 Isoflex Grease, TOPAS NB52, 50 gIsoflex Grease, TOPAS NB52, 50 g
