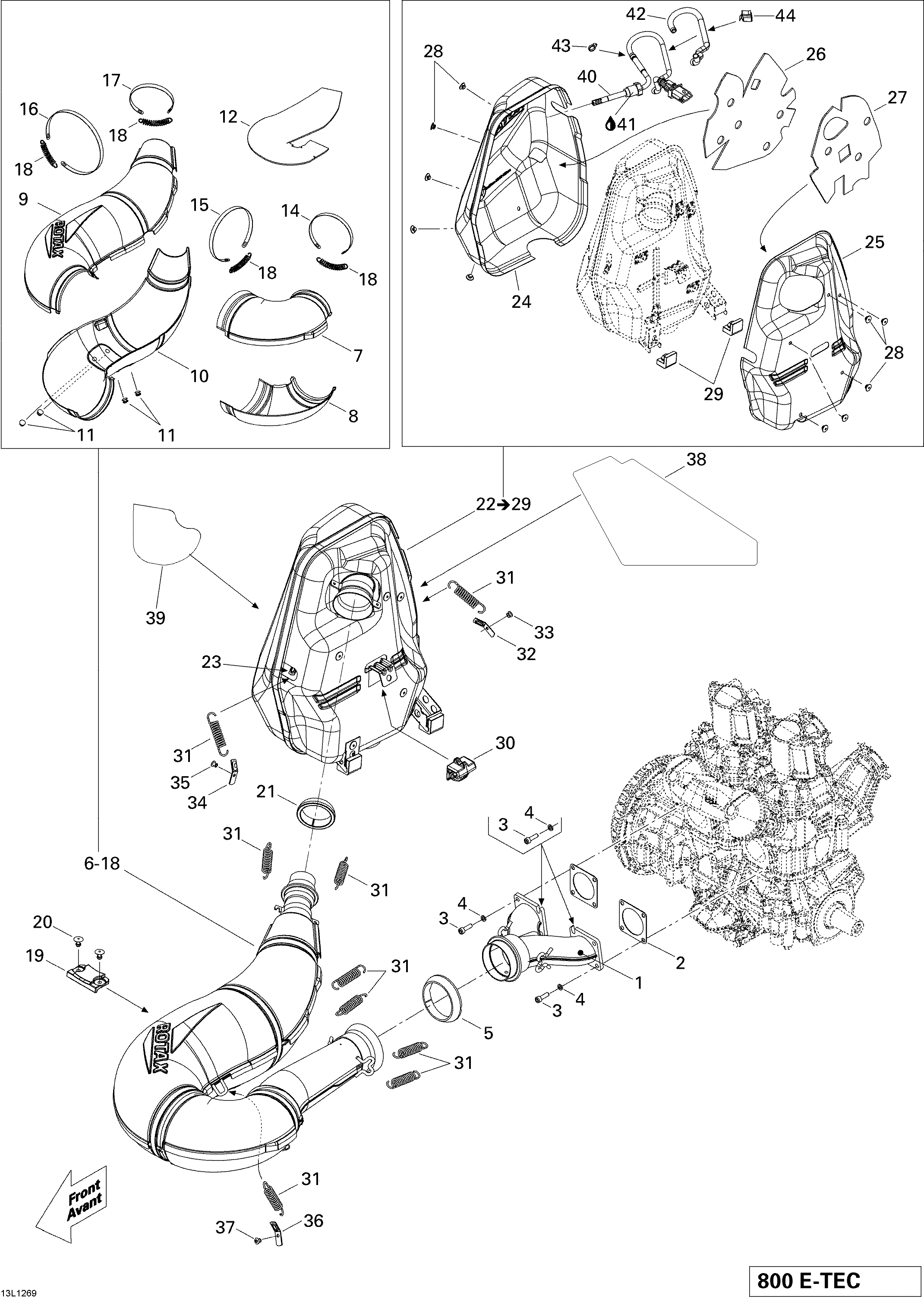

01- Exhaust System для BRP Lynx Rave RE 800R E-TEC - 2012
-
№АртикулНазвание
-
1420673373 Exhaust ManifoldExhaust Manifold
-
2420430482 GasketGasket
-
3250000414 Socket Head Screw M8 X 22Socket Head Screw M8 X 22
-
4250200111 WasherWasher
-
5514053487 Exhaust GasketExhaust Gasket
-
6514054858 Tuned Pipe Ass'y. Includes 6 to 18Tuned Pipe Ass'y. Includes 6 to 18
-
7514054219 Front Upper Half EnvelopeFront Upper Half Envelope
-
8514054220 Front Lower Half EnvelopeFront Lower Half Envelope
-
9514054590 Rear Upper Half EnveloppeRear Upper Half Enveloppe
-
10514054279 Rear Lower Half EnveloppeRear Lower Half Enveloppe
-
12514054273 Insulating WoolInsulating Wool
-
14514054408 Retaining StrapRetaining Strap
-
15514054409 Retaining StrapRetaining Strap
-
16514054410 Retaining StrapRetaining Strap
-
17514053499 Retaining StrapRetaining Strap
-
18514053643 SpringSpring
-
19514054275 BumperBumper
-
20293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
21514054174 Exhaust GasketExhaust Gasket
-
22514054663 Muffler Ass'y. Includes 22 to 29Muffler Ass'y. Includes 22 to 29
-
23514054155 Spring BracketSpring Bracket
-
24514054433 RH DeflectorRH Deflector
-
25514054202 LH DeflectorLH Deflector
-
26514054711 RH Insulating WoolRH Insulating Wool
-
27514054299 LH Insulating WoolLH Insulating Wool
-
28390910000 Pop Rivet 3/16”Pop Rivet 3/16”
-
29514054274 Lower StopperLower Stopper
-
30514054606 Upper StopperUpper Stopper
-
31514054226 SpringSpring
-
32514054391 Spring BracketSpring Bracket
-
33390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
34514054391 Spring BracketSpring Bracket
-
35390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
36514054087 Spring BracketSpring Bracket
-
37293150147 Hemlock RivetHemlock Rivet
-
38514054488 Reflective SheetReflective Sheet
-
39514054817 Heat ShieldHeat Shield
-
40514054641 Temperature SensorTemperature Sensor
-
41293800070 Loctite 767, Antiseize Lubricant, 8 ozLoctite 767, Antiseize Lubricant, 8 oz
-
42514054825 TubingTubing
-
43293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
44414227300 ClipClip
