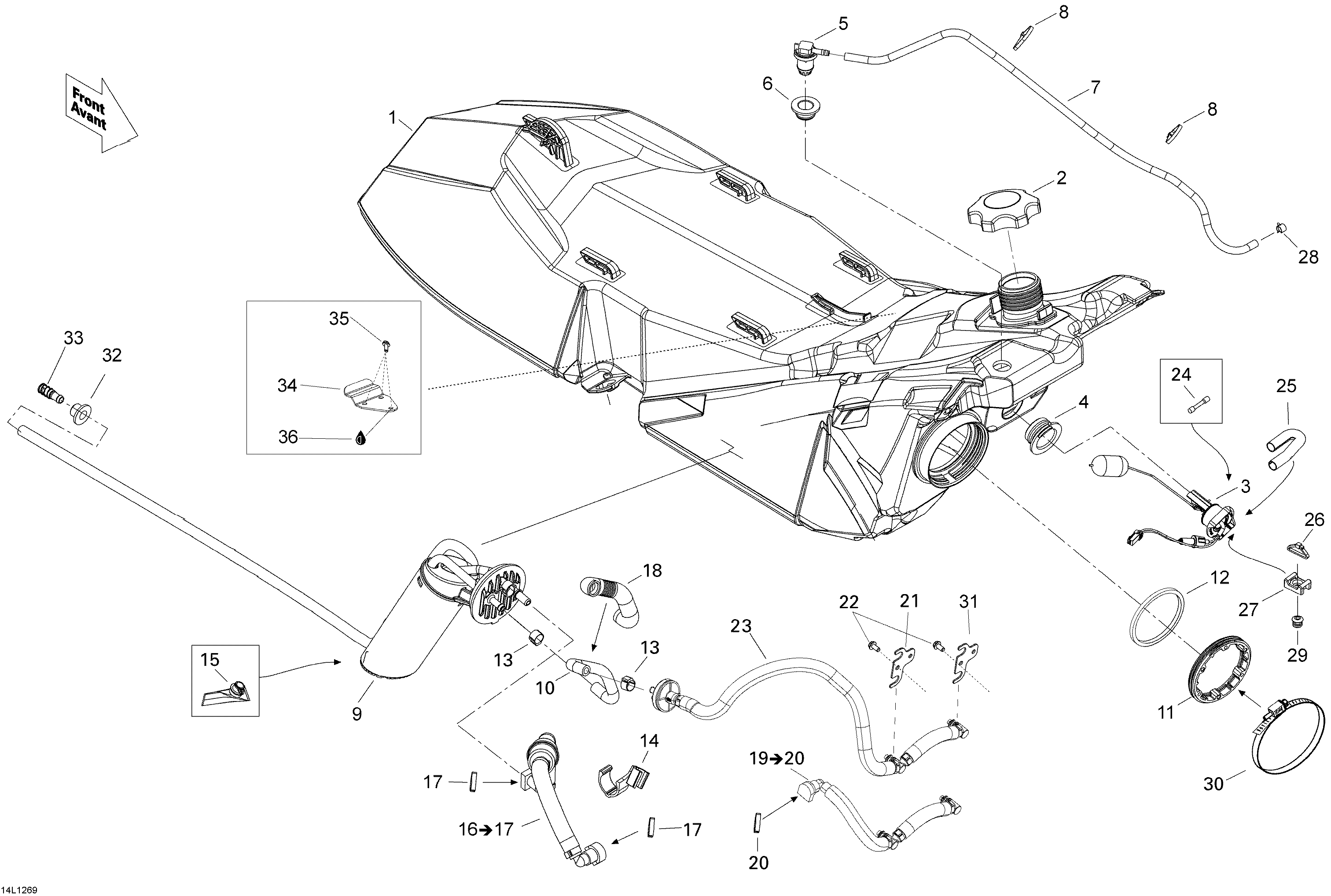

02- Fuel System для BRP Lynx Rave RE 800R E-TEC - 2012
-
№АртикулНазвание
-
1513033700 Fuel TankFuel Tank
-
2513033025 Fuel Tank CapFuel Tank Cap
-
3513033642 Fuel Level Sensor Ass'yFuel Level Sensor Ass'y
-
4513033606 GrommetGrommet
-
5513033188 Check ValveCheck Valve
-
6513033596 GrommetGrommet
-
7415080200 Hose, PolyurethaneHose, Polyurethane
-
8414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
9513033643 Fuel Pump Ass'yFuel Pump Ass'y
-
10513033544 Formed HoseFormed Hose
-
11513033180 RingRing
-
12513033334 GasketGasket
-
13293650047 Crimp ClampCrimp Clamp
-
14513033336 Filter ClipFilter Clip
-
15415129451 Fuel FilterFuel Filter
-
16513033560 Hose Ass'y. Includes 16 to 17Hose Ass'y. Includes 16 to 17
-
17513033135 Locking ClipLocking Clip
-
18415080000 Tubing 16 mmTubing 16 mm
-
19513033594 Hose Ass'y. Includes 19 to 20Hose Ass'y. Includes 19 to 20
-
20513033135 Locking ClipLocking Clip
-
21513033542 BracketBracket
-
22207551044 Flanged Hex. Screw M5 X 10Flanged Hex. Screw M5 X 10
-
23513033637 Hose Ass'y. Includes 23 to 24Hose Ass'y. Includes 23 to 24
-
24710001995 Fuse, 0.5 AmpereFuse, 0.5 Ampere
-
25415079900 Tubing 10 mmTubing 10 mm
-
26293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
27515176795 ClipClip
-
28414554800 Spring ClampSpring Clamp
-
29390402000 Pop Rivet 3/16''Pop Rivet 3/16''
-
3027048 Clamp Zebra 90-110/9Clamp Zebra 90-110/9
-
31513033593 BracketBracket
-
3228037 GrommetGrommet
-
33414872100 Fuel FilterFuel Filter
-
34510005129 Seat front fastening plateSeat front fastening plate
-
35205461046 Screw socket M6 x 10Screw socket M6 x 10
-
36293800060 Loctite 243, 10 mlLoctite 243, 10 ml
