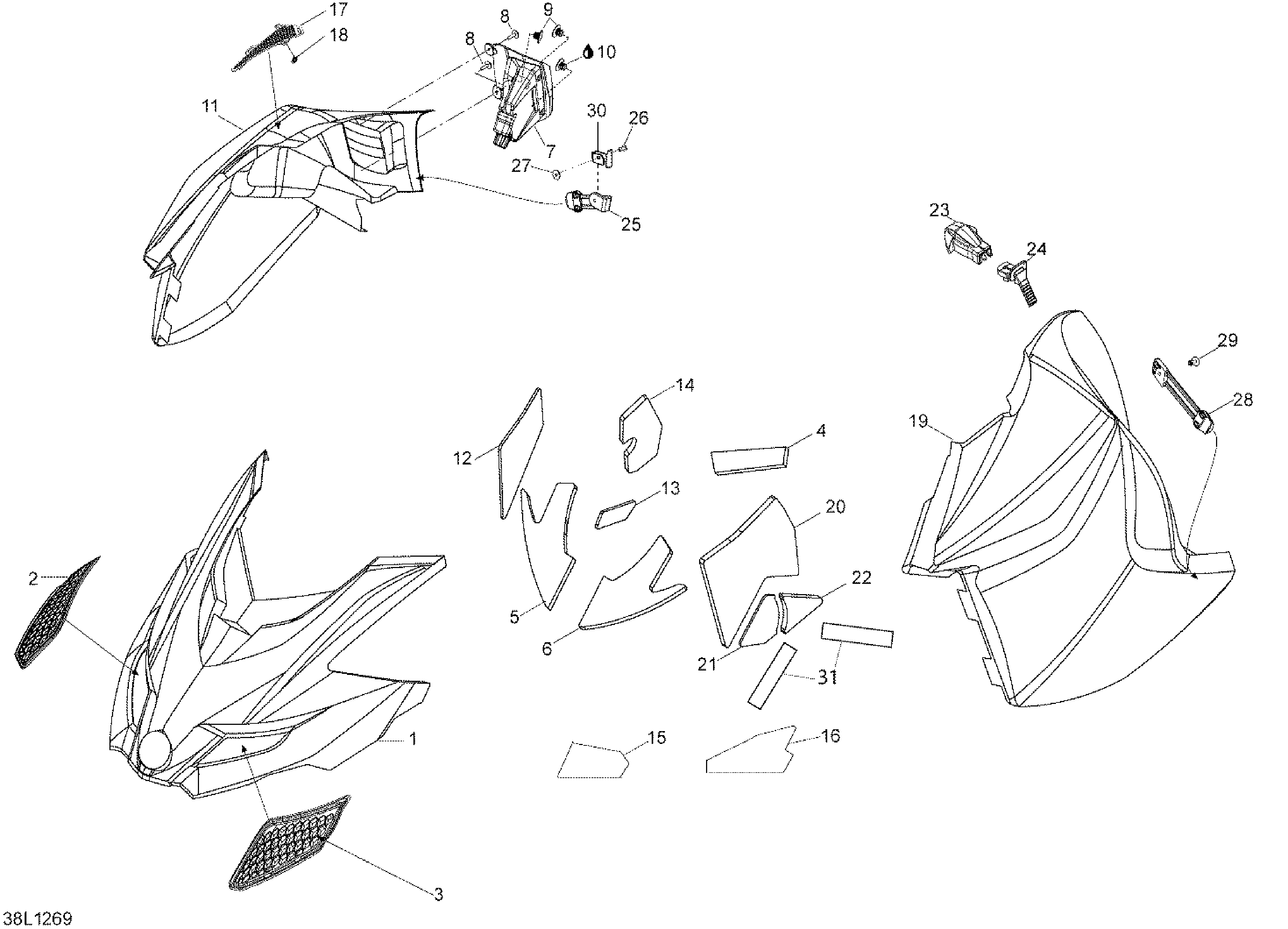

09- Hood для BRP Lynx Rave RE 800R E-TEC - 2012
-
№АртикулНазвание
-
1517303962 HoodHood
-
2517304141 R.H. Hood grillR.H. Hood grill
-
3517304008 L.H. Hood grillL.H. Hood grill
-
4517304845 FoamFoam
-
5517304263 FoamFoam
-
6517304321 FoamFoam
-
7517304322 RH ConsoleRH Console
-
8250000113 Screw M4 X 16, Type K-40Screw M4 X 16, Type K-40
-
9275500241 Cap, BlackCap, Black
-
10413408300 Loctite, Black Max, 3 mlLoctite, Black Max, 3 ml
-
11517304980 Side panel RHSide panel RH
-
12517304220 FoamFoam
-
13517304306 FoamFoam
-
14517304339 FoamFoam
-
15517304264 Aluminum FoilAluminum Foil
-
16517304265 Aluminum FoilAluminum Foil
-
17517304007 GrillGrill
-
18517302785 ClipClip
-
19517304988 Side panel LHSide panel LH
-
20517304219 FoamFoam
-
21517304305 FoamFoam
-
22517304340 FoamFoam
-
23860200239 Latch Kit, BlackLatch Kit, Black
-
24517303981 Panel LatchPanel Latch
-
25517303612 RH Panel LatchRH Panel Latch
-
26390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
27517124300 WasherWasher
-
28517303808 LH Panel LatchLH Panel Latch
-
29293150108 Pop Rivet 3/16”Pop Rivet 3/16”
-
30517304221 Latch SupportLatch Support
-
31517305108 FoamFoam
