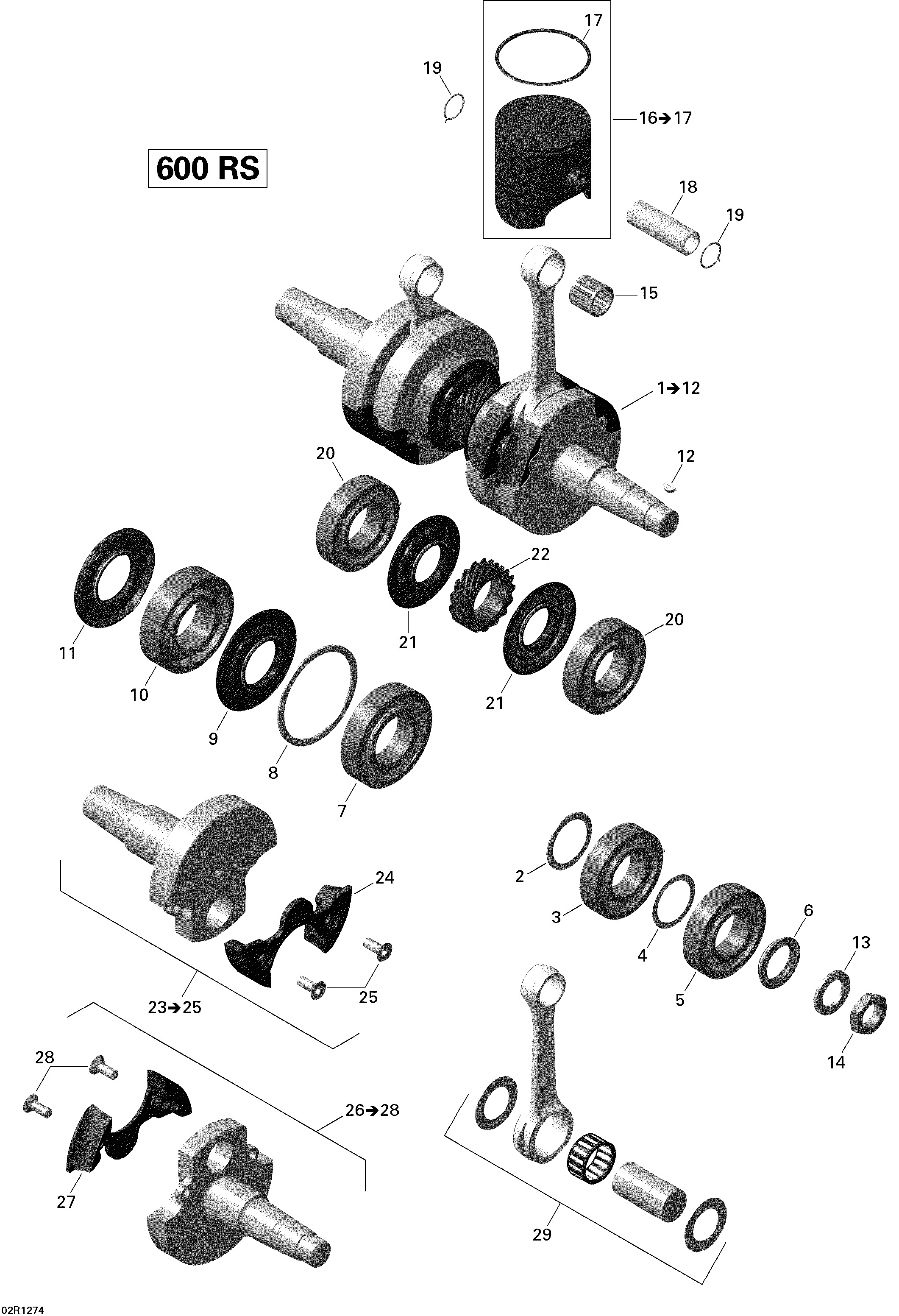

01- Crankshaft And Pistons для BRP Lynx Rave RS 600 - 2012
-
№АртикулНазвание
-
1420891636 Crankshaft Ass'y. Includes 1 to 12Crankshaft Ass'y. Includes 1 to 12
-
2420827767 ShimShim
-
3420832575 Ball BearingBall Bearing
-
4420427502 Adjustment WasherAdjustment Washer
-
5420832575 Ball BearingBall Bearing
-
6420931793 Oil SealOil Seal
-
7420832600 Ball Bearing 6208Ball Bearing 6208
-
8420926190 WasherWasher
-
9420931910 Oil SealOil Seal
-
10420832603 Ball BearingBall Bearing
-
11420931284 Oil SealOil Seal
-
12420246015 Woodruff KeyWoodruff Key
-
13420945759 Lock Washer, 22 mmLock Washer, 22 mm
-
14420842239 Hex. Nut, M22 X 1.5Hex. Nut, M22 X 1.5
-
15420832445 Needle BearingNeedle Bearing
-
16420893301 Piston Ass'y, 71.87 mm. Includes 16 to 17Piston Ass'y, 71.87 mm. Includes 16 to 17
-
17420815295 Semi-Trapez RingSemi-Trapez Ring
-
18420916412 Piston PinPiston Pin
-
19420845106 Piston CirclipPiston Circlip
-
20420832575 Ball BearingBall Bearing
-
21420931455 Oil SealOil Seal
-
22420834355 Central GearCentral Gear
-
23420819811 Crankshaft Ass'y, PTO Side. Includes 23 to 25Crankshaft Ass'y, PTO Side. Includes 23 to 25
-
24420819850 Volume Compensation AdapterVolume Compensation Adapter
-
25420641406 Screw M8 X 20Screw M8 X 20
-
26420819841 Crankshaft Ass'y, MAG Side. Includes 26 to 28Crankshaft Ass'y, MAG Side. Includes 26 to 28
-
27420819857 Volume Compensation AdapterVolume Compensation Adapter
-
28420641406 Screw M8 X 20Screw M8 X 20
-
29420890958 Rod Repair Kit, PTO SideRod Repair Kit, PTO Side
-
29420890959 Rod Repair Kit, MAG SideRod Repair Kit, MAG Side
