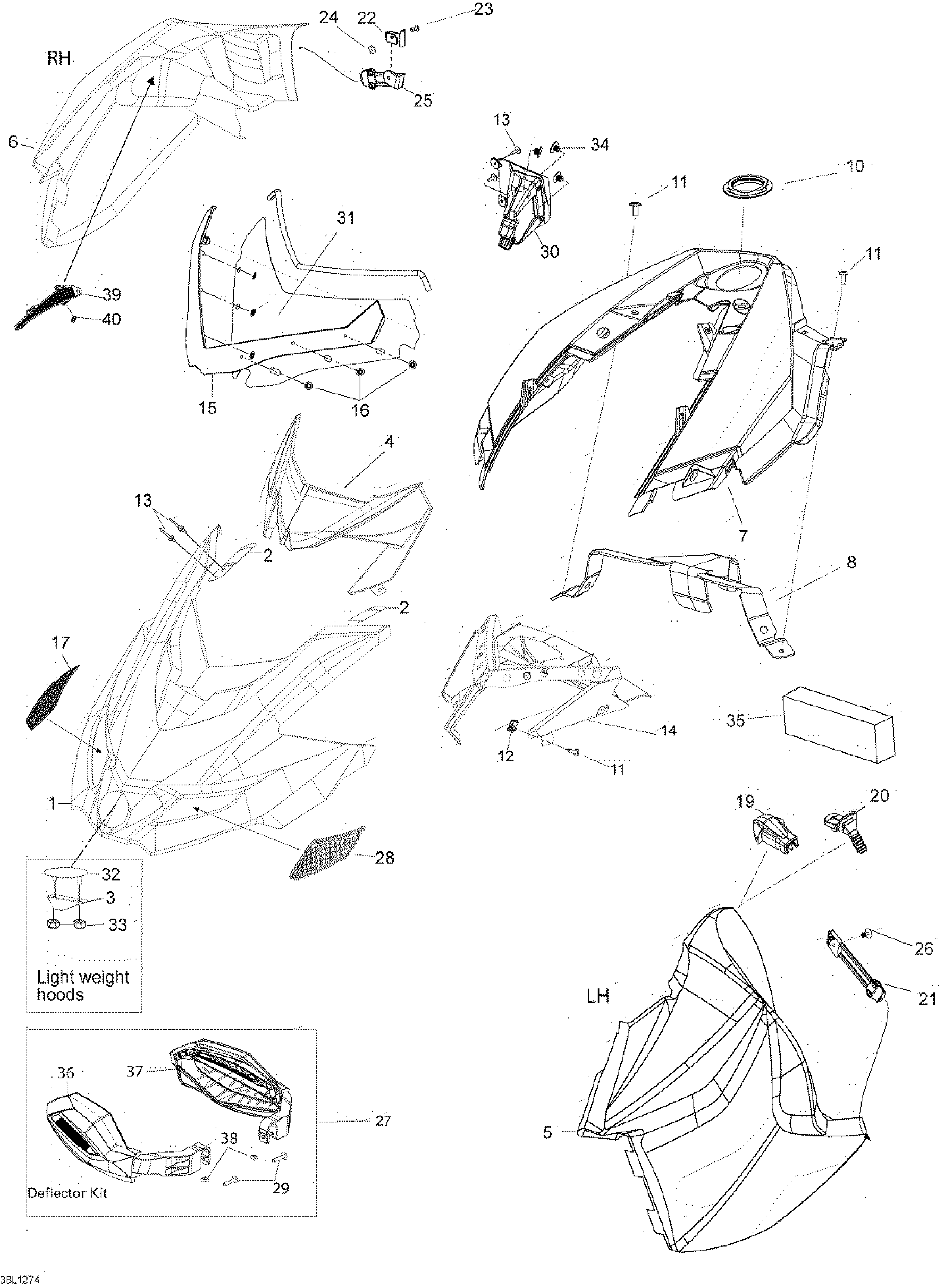

09- Hood для BRP Lynx Rave RS 600 - 2012
-
№АртикулНазвание
-
1517303962 Hood/console BlackHood/console Black
-
2517304152 Rear fastening plate. Only for light weight hoodsRear fastening plate. Only for light weight hoods
-
3517304153 Front fastening plate. Only for light weight hoodsFront fastening plate. Only for light weight hoods
-
4517303979 Headlamp coverHeadlamp cover
-
5517304990 L.H.Side panel BlackL.H.Side panel Black
-
6517304981 R.H.Side panel BlackR.H.Side panel Black
-
7517304129 Console WhiteConsole White
-
8517304230 Console support blackConsole support black
-
936037 Rivet black 4.8x16Rivet black 4.8x16
-
10517304518 Console NutConsole Nut
-
11250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
12250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
13293150170 Pop Rivet 5/32''Pop Rivet 5/32''
-
14517304699 Indicator SupportIndicator Support
-
15860200089 Windshield Support KitWindshield Support Kit
-
16517303756 GrommetGrommet
-
17517304141 Grill RHGrill RH
-
18517302785 ClipClip
-
19860200239 Latch Kit, BlackLatch Kit, Black
-
21517303612 RH Panel LatchRH Panel Latch
-
22517304221 Latch SupportLatch Support
-
23207652044 Flanged Hex. Screw M5 X 20Flanged Hex. Screw M5 X 20
-
24233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
25517303808 LH Panel LatchLH Panel Latch
-
26293150108 Pop Rivet 3/16”Pop Rivet 3/16”
-
27517305053 Deflector packDeflector pack
-
28517304008 Grill LHGrill LH
-
29250000501 Phillips Screw M6 X 35Phillips Screw M6 X 35
-
30517304322 RH ConsoleRH Console
-
31517304293 Wind shieldWind shield
-
32605455262 Logo spacer. Only for light weight hoodsLogo spacer. Only for light weight hoods
-
33233261414 Hex. Flanged Elastic Nut M6. Only for light weight hoodsHex. Flanged Elastic Nut M6. Only for light weight hoods
-
34275500241 Cap, BlackCap, Black
-
35517304186 Support foam air intake silencerSupport foam air intake silencer
-
36517305054 RH deflectorRH deflector
-
37517305055 LH deflectorLH deflector
-
38250000498 Square Nut M6Square Nut M6
-
39517304007 GrillGrill
-
40517302785 ClipClip
