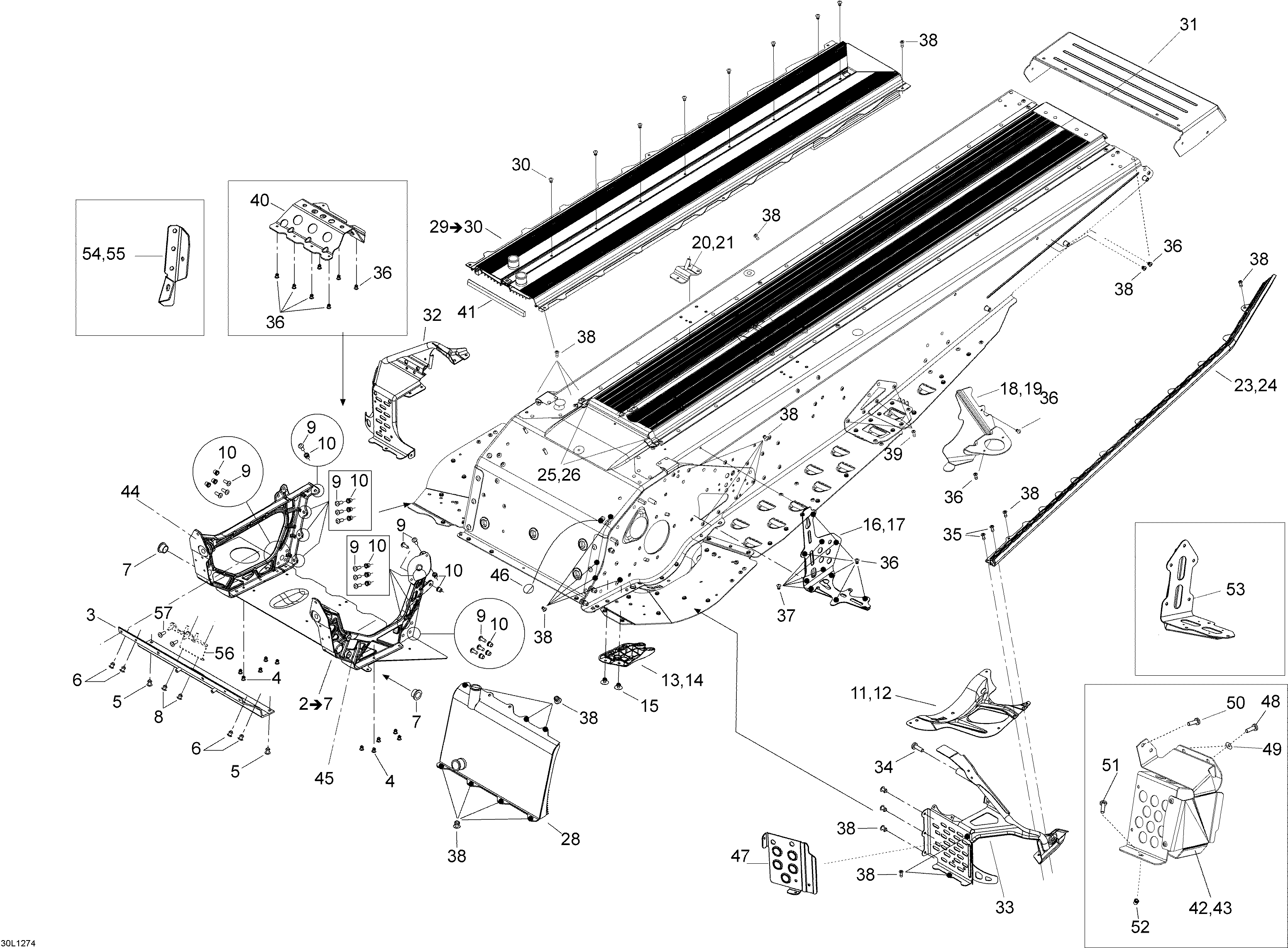

09- Frame для BRP Lynx Rave RS 600 - 2012
-
№АртикулНазвание
-
1518327019 Frame Assy. Includes 1 to 39Frame Assy. Includes 1 to 39
-
2518326077 E ModuleE Module
-
3518325995 Front MemberFront Member
-
4390909100 Avex RivetAvex Rivet
-
5293150120 Hemlock Rivet 6.5 mmHemlock Rivet 6.5 mm
-
6293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
7505072690 Leg CushionLeg Cushion
-
8293150174 Hemlock Rivet, 6.4 mmHemlock Rivet, 6.4 mm
-
9207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
10233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
11518324874 RH ReinforcementRH Reinforcement
-
12518324875 LH ReinforcementLH Reinforcement
-
13518325782 RH DeflectorRH Deflector
-
14518325783 LH DeflectorLH Deflector
-
15293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
18518326766 RH Rear SupportRH Rear Support
-
19518326767 LH Rear SupportLH Rear Support
-
20518326421 RH Rear BaseRH Rear Base
-
21518326443 LH Rear BaseLH Rear Base
-
23518325693 LH rollerLH roller
-
24518325694 RH rollerRH roller
-
25518325653 RH SealRH Seal
-
26518325654 LH SealLH Seal
-
28518326486 Front RadiatorFront Radiator
-
29518326786 Rear RadiatorRear Radiator
-
30390909100 Avex RivetAvex Rivet
-
31518326362 Rear CapRear Cap
-
32518326216 RH StirupRH Stirup
-
33518326021 LH StirrupLH Stirrup
-
34250000248 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
35390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
36390909200 Avex RivetAvex Rivet
-
37390909100 Avex RivetAvex Rivet
-
38390909200 Avex RivetAvex Rivet
-
39390908600 RivetRivet
-
40518327285 Link CrossLink Cross
-
41293200105 Neoprene SealNeoprene Seal
-
42518326803 Footrest L.H.Footrest L.H.
-
43518326804 Footrest R.H.Footrest R.H.
-
44518326795 RH MemberRH Member
-
45518326796 LH MemberLH Member
-
46518325560 Adhesive PatchAdhesive Patch
-
47518325905 Protection plateProtection plate
-
48207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
49234061410 Flat Washer 6 mmFlat Washer 6 mm
-
50250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
51207161244 Hex. Screw M6 X 12Hex. Screw M6 X 12
-
5233010 Nut M6Nut M6
-
53518326038 L - Support for footboardL - Support for footboard
-
54518326639 Reinf. bracket for upper A-arm, leftReinf. bracket for upper A-arm, left
-
55518326640 Reinf. bracket for upper A-arm, rightReinf. bracket for upper A-arm, right
-
56518325943 MAG Engine SupportMAG Engine Support
-
57207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
