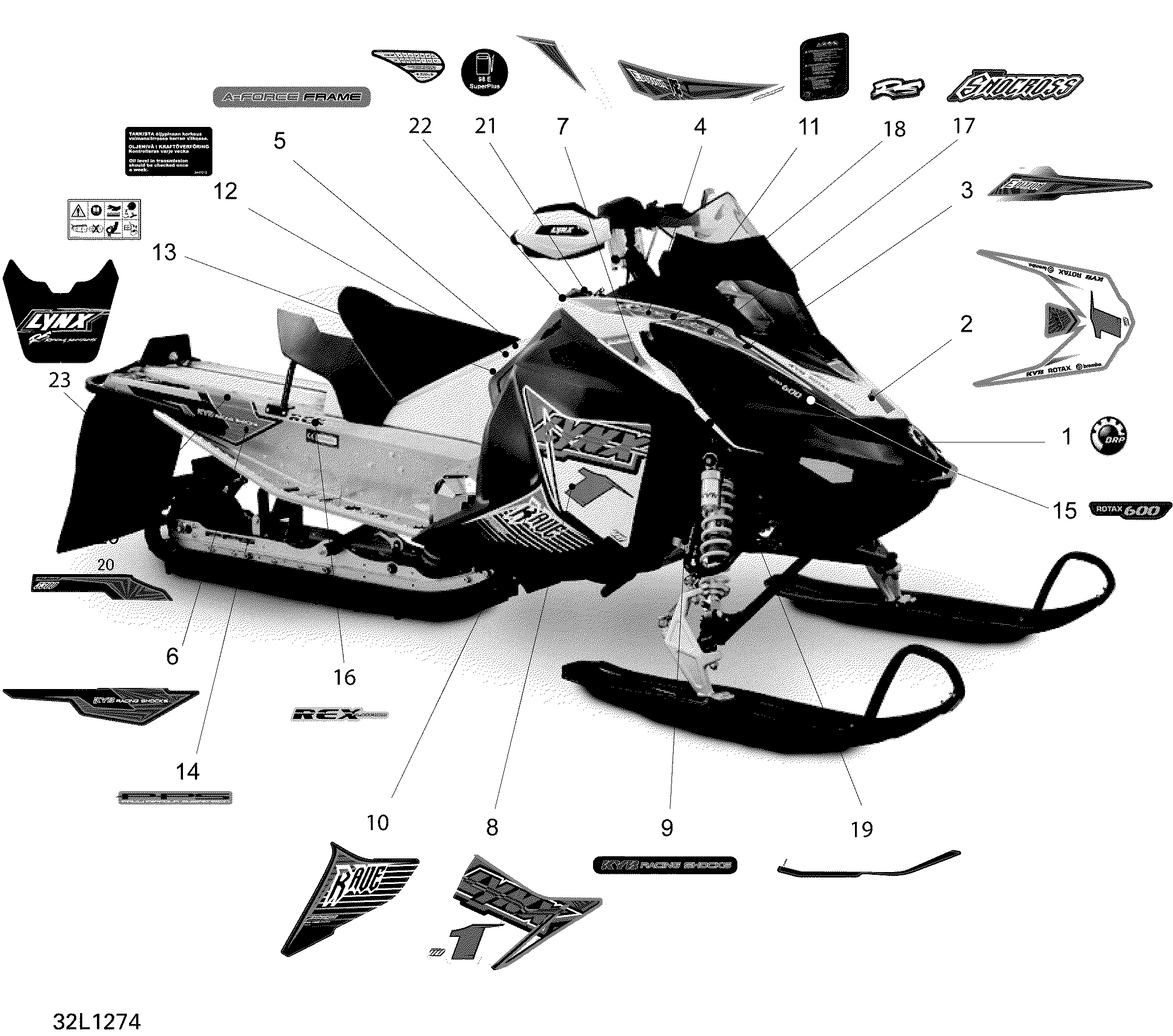

09- Decals для BRP Lynx Rave RS 600 - 2012
-
№АртикулНазвание
-
1219902469 Logo BRP, 68 mmLogo BRP, 68 mm
-
2516005000 DECAL, HOOD, RE-RSDECAL, HOOD, RE-RS
-
3516005001 DECAL, HOOD LEFT, REDECAL, HOOD LEFT, RE
-
3516005002 DECAL, HOOD RIGHT, REDECAL, HOOD RIGHT, RE
-
4516005003 DECAL, CONSOL LEFT, RE-RSDECAL, CONSOL LEFT, RE-RS
-
4516005004 DECAL, CONSOL RIGHT, RE 800DECAL, CONSOL RIGHT, RE 800
-
5516003824 DECAL, A-FORCE FRAME TECH. RE-XCDECAL, A-FORCE FRAME TECH. RE-XC
-
6516004996 Decal, tunnel LHDecal, tunnel LH
-
6516004998 Decal, tunnel RHDecal, tunnel RH
-
7516005009 DECAL, SIDEPANEL LEFT UP, RE-RSDECAL, SIDEPANEL LEFT UP, RE-RS
-
7516005010 DECAL, SIDEPANEL RIGHT UP, RE-RSDECAL, SIDEPANEL RIGHT UP, RE-RS
-
8516005005 DECAL, SIDEPANEL LEFT UP, RE-RSDECAL, SIDEPANEL LEFT UP, RE-RS
-
8516005006 DECAL, SIDEPANEL RIGHT UP, RE-RSDECAL, SIDEPANEL RIGHT UP, RE-RS
-
9516004170 DECAL, KYB- RACING SHOCKSDECAL, KYB- RACING SHOCKS
-
10516005011 Decal, sidepanel LH downDecal, sidepanel LH down
-
10516005012 Decal, sidepanel RH downDecal, sidepanel RH down
-
11516004607 LABEL EN/FI/SWELABEL EN/FI/SWE
-
125447012 Checking label, oil FI/SE/ENGChecking label, oil FI/SE/ENG
-
13516003919 Warning DecalWarning Decal
-
14605454883 PPS- decalPPS- decal
-
15516004345 Hood decal Rotax 600Hood decal Rotax 600
-
16516004307 Decal, rex platformDecal, rex platform
-
17516005015 Decal, Hood RSDecal, Hood RS
-
18516005013 Consol LH, RSConsol LH, RS
-
18516005014 Consol RH, RSConsol RH, RS
-
19516005016 Hood decal, stripe LHHood decal, stripe LH
-
19516005017 Hood decal, stripe RHHood decal, stripe RH
-
20516004997 Decal, tunnel LH topDecal, tunnel LH top
-
20516004999 Decal, tunnel RH topDecal, tunnel RH top
-
215447019 Fuel decal 98E/Super plusFuel decal 98E/Super plus
-
22516004555 Fuel decal ratio 3%Fuel decal ratio 3%
-
23516003818 Decal, snow guardDecal, snow guard
