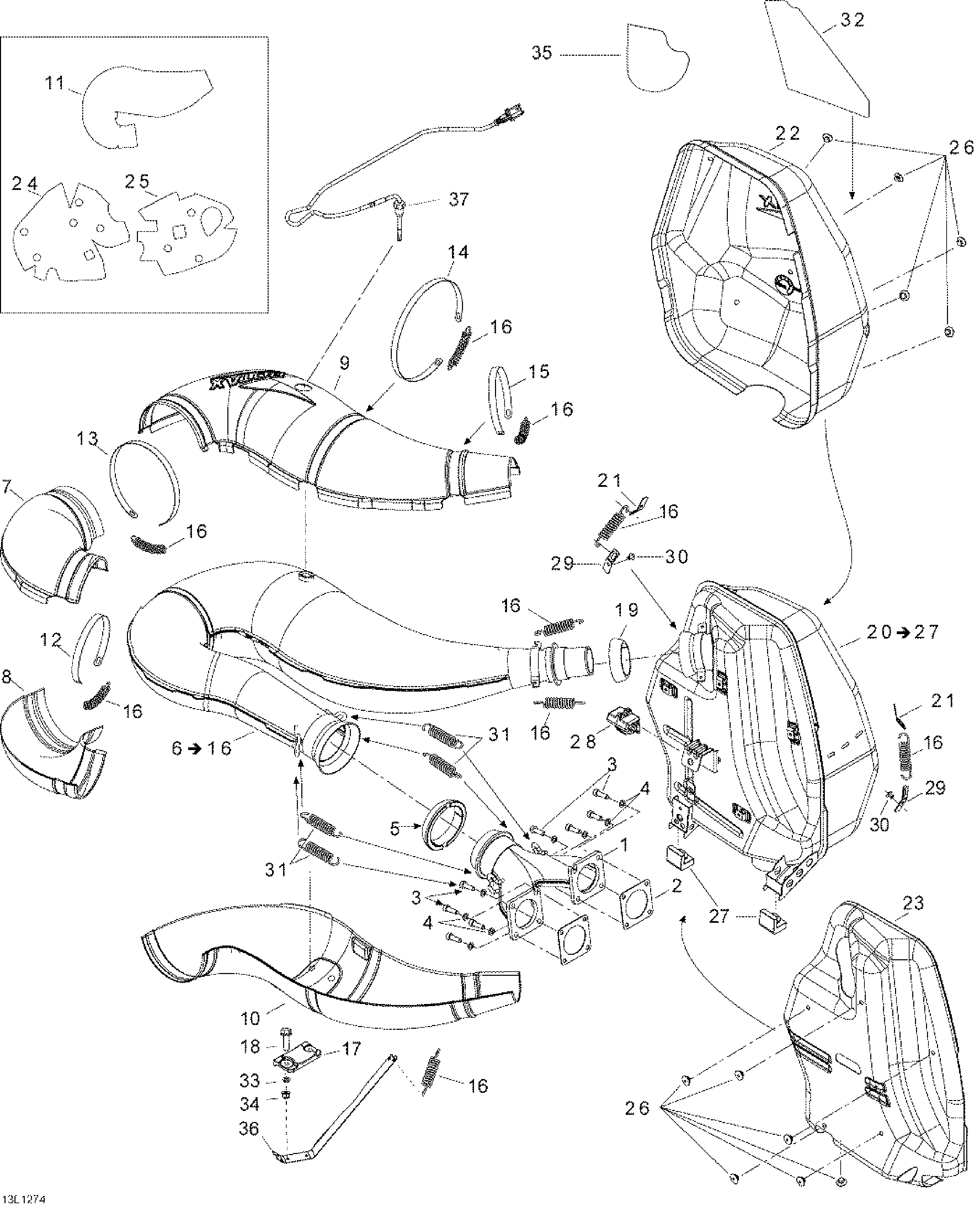

01- Exhaust System для BRP Lynx Rave RS 600 - 2012
-
№АртикулНазвание
-
1420673422 Exhaust ManifoldExhaust Manifold
-
2420850552 GasketGasket
-
3514054626 Socket Screw M6 X 22, Scotch GripSocket Screw M6 X 22, Scotch Grip
-
4514053953 WasherWasher
-
5514053487 Exhaust GasketExhaust Gasket
-
6514054752 Calibrated Tube Ass'y. Includes 7 to 17Calibrated Tube Ass'y. Includes 7 to 17
-
7514054485 Front Upper EnveloppeFront Upper Enveloppe
-
8514054486 Front Lower EnveloppeFront Lower Enveloppe
-
9514054591 Rear Upper Half EnveloppeRear Upper Half Enveloppe
-
10514054279 Rear Lower Half EnveloppeRear Lower Half Enveloppe
-
11514054487 Insulating WoolInsulating Wool
-
12514054408 Retaining StrapRetaining Strap
-
13514054409 Retaining StrapRetaining Strap
-
14514054410 Retaining StrapRetaining Strap
-
15514053499 Retaining StrapRetaining Strap
-
16514054226 SpringSpring
-
17514054275 BumperBumper
-
18250000130 Torx Screw M5 X 20Torx Screw M5 X 20
-
19514053812 Exhaust GasketExhaust Gasket
-
20514054515 Muffler Ass'y. Includes 21 to 28Muffler Ass'y. Includes 21 to 28
-
21514054155 Spring BracketSpring Bracket
-
22514054433 RH DeflectorRH Deflector
-
23514054202 LH DeflectorLH Deflector
-
24514054298 RH Insulating WoolRH Insulating Wool
-
25514054299 LH Insulating WoolLH Insulating Wool
-
26390910000 Pop Rivet 3/16”Pop Rivet 3/16”
-
27514054274 Lower StopperLower Stopper
-
28514054606 Upper StopperUpper Stopper
-
29514054391 Spring BracketSpring Bracket
-
30390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
31415107100 SpringSpring
-
32514054488 Reflective SheetReflective Sheet
-
33224060201 Flat WasherFlat Washer
-
34233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
35514054817 Heat ShieldHeat Shield
-
36514054637 Retaining StrapRetaining Strap
-
37514054641 Temperature SensorTemperature Sensor
