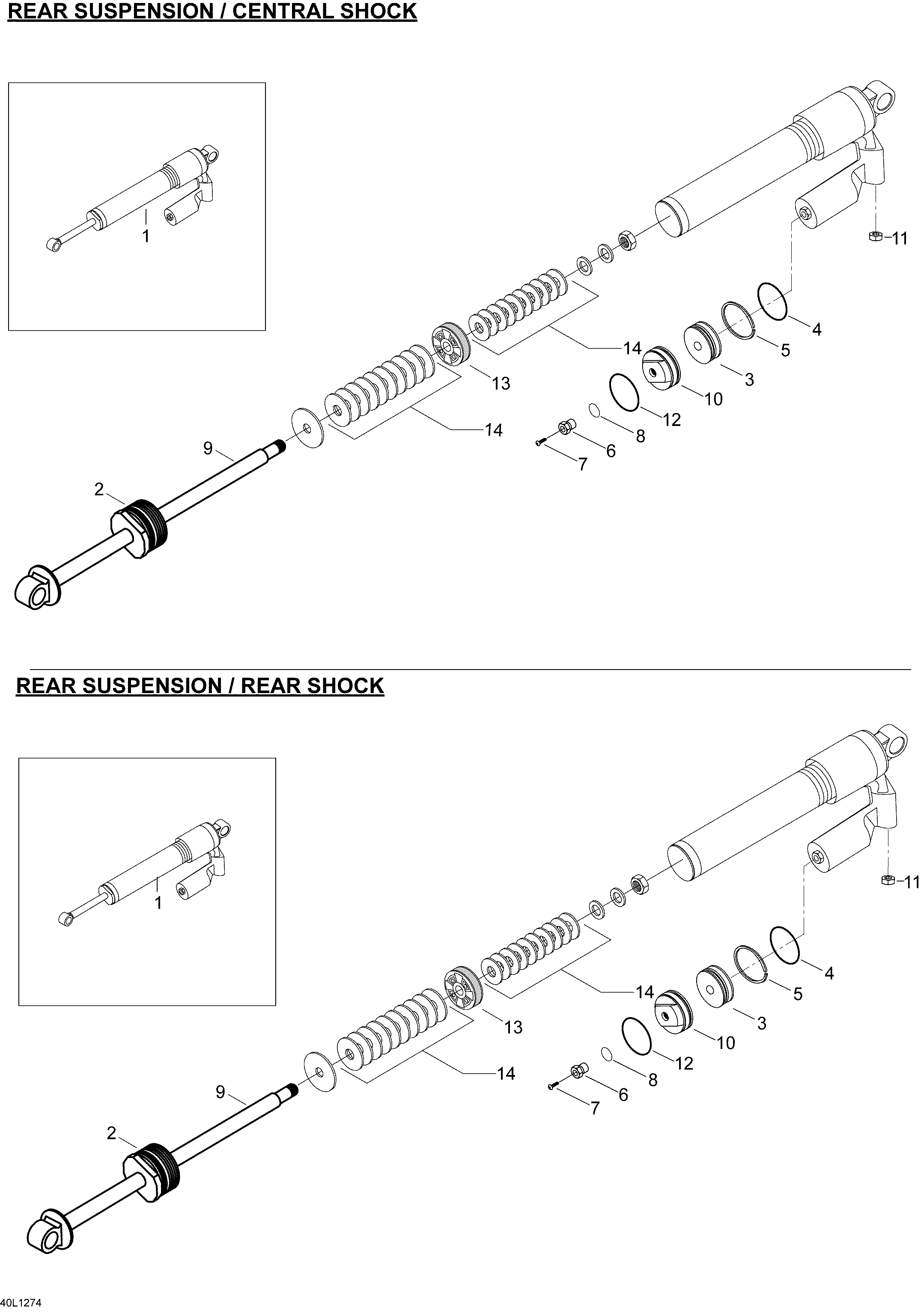

08- Rear Shocks для BRP Lynx Rave RS 600 - 2012
-
№АртикулНазвание
-
1619330003 Shock, front arm (cal.503193134). VOIR 589032532Shock, front arm (cal.503193134). VOIR 589032532
-
1619330005 Shock, rear arm (cal. 503193136). VOIR 589032532Shock, rear arm (cal. 503193136). VOIR 589032532
-
4415093807 O-RingO-Ring
-
5503189006 Piston RingPiston Ring
-
6505070398 Air ValveAir Valve
-
7505070399 ScrewScrew
-
8505070400 O-RingO-Ring
-
10619300009 Seal carrier assySeal carrier assy
-
11619300015 Valve ass'yValve ass'y
-
12415093804 O-RingO-Ring
-
13503189003 Piston, O1.2 (C46)Piston, O1.2 (C46)
-
13503189002 Piston, O1.7 (C46)Piston, O1.7 (C46)
-
13230039 Piston 2.0 mmPiston 2.0 mm
-
13230043 Piston 0 mm.Piston 0 mm.
-
14619300060 Shim 46 mm. 17 X 0,114Shim 46 mm. 17 X 0,114
-
14619300069 Shim 46 mm. 17 X 0,203Shim 46 mm. 17 X 0,203
-
14619300068 Shim 46 mm. 18 X 0,114Shim 46 mm. 18 X 0,114
-
14619300067 Shim 46 mm. 18 X 0,152Shim 46 mm. 18 X 0,152
-
14230029 Shim 46 mm. 20 X 0,114Shim 46 mm. 20 X 0,114
-
14230030 Shim 46 mm. 20 X 0,152Shim 46 mm. 20 X 0,152
-
14230031 Shim 46 mm. 20 X 0,203Shim 46 mm. 20 X 0,203
-
14230032 Shim 46 mm. 20 X 0,254Shim 46 mm. 20 X 0,254
-
14619300097 Shim 46 mm. 20 X 0,305Shim 46 mm. 20 X 0,305
-
14619300133 Shim 46 mm. 22 X 0,114Shim 46 mm. 22 X 0,114
-
14619300140 Shim 46 mm. 22 X 0,152Shim 46 mm. 22 X 0,152
-
14619300098 Shim 46 mm. 22 X 0,203Shim 46 mm. 22 X 0,203
-
14619300134 Shim 46 mm. 22 X 0,254Shim 46 mm. 22 X 0,254
-
14503189015 Leaf Valve O22 X 0.305 (C46)Leaf Valve O22 X 0.305 (C46)
-
14503189016 Leaf Valve O24 X 0.114 (C46)Leaf Valve O24 X 0.114 (C46)
-
14503189017 Leaf Valve O24 X 0.152 (C46)Leaf Valve O24 X 0.152 (C46)
-
14503189018 Leaf Valve O24 X 0.203 (C46)Leaf Valve O24 X 0.203 (C46)
-
14619300095 Shim 46 mm. 24 X 0,254Shim 46 mm. 24 X 0,254
-
14503189020 Leaf Valve O24 X 0.305 (C46)Leaf Valve O24 X 0.305 (C46)
-
14503189021 Leaf Valve O26 X 0.114 (C46)Leaf Valve O26 X 0.114 (C46)
-
14619300141 Shim 46 mm. 26 X 0,152Shim 46 mm. 26 X 0,152
-
14503189023 Leaf Valve O26 X 0.203 (C46)Leaf Valve O26 X 0.203 (C46)
-
14619300099 Shim 46 mm. 26 X 0,254Shim 46 mm. 26 X 0,254
-
14619300100 Shim 46 mm. 26 X 0,305Shim 46 mm. 26 X 0,305
-
14619300101 Shim 46 mm. 28 X 0,114Shim 46 mm. 28 X 0,114
-
14503189027 Leaf Valve O28 X 0.152 (C46)Leaf Valve O28 X 0.152 (C46)
-
14619300102 Shim 46 mm. 28 X 0,203Shim 46 mm. 28 X 0,203
-
14619300103 Shim 46 mm. 28 X 0,254Shim 46 mm. 28 X 0,254
-
14503189030 Leaf Valve O28 X 0.305 (C46)Leaf Valve O28 X 0.305 (C46)
-
14619300135 Shim 46 mm. 30 X 0,114Shim 46 mm. 30 X 0,114
-
14619300104 Shim 46 mm. 30 X 0,152Shim 46 mm. 30 X 0,152
-
14503189033 Leaf Valve O30 X 0.203 (C46)Leaf Valve O30 X 0.203 (C46)
-
14619300113 Shim 46 mm. 30 X 0,254Shim 46 mm. 30 X 0,254
-
14619300056 Shim 46 mm. 30 X 0,305Shim 46 mm. 30 X 0,305
-
14230082 Shim 46 mm. 32 X 0,114Shim 46 mm. 32 X 0,114
-
14619300137 Shim 46 mm. 32 X 0,152Shim 46 mm. 32 X 0,152
-
14619300138 Shim 46 mm. 32 X 0,203Shim 46 mm. 32 X 0,203
-
14619300059 Shim 46 mm. 32 X 0,254Shim 46 mm. 32 X 0,254
-
14619300022 Shim 46 mm. 32 X 0,305Shim 46 mm. 32 X 0,305
-
14230033 Shim 46 mm. 34 X 0,114Shim 46 mm. 34 X 0,114
-
14230034 Shim 46 mm. 34 X 0,152Shim 46 mm. 34 X 0,152
-
14230035 Shim 46 mm. 34 X 0,203Shim 46 mm. 34 X 0,203
-
14230036 Shim 46 mm. 34 X 0,254Shim 46 mm. 34 X 0,254
-
14619300070 Shim 46 mm. 34 X 0,305Shim 46 mm. 34 X 0,305
-
14230037 Shim 46 mm. 36 X 0,114Shim 46 mm. 36 X 0,114
-
14503189036 Leaf Valve O36 X 0.152 (C46)Leaf Valve O36 X 0.152 (C46)
-
14619300142 Shim 46 mm. 36 X 0,203Shim 46 mm. 36 X 0,203
-
14503189038 Leaf Valve O36 X 0.254 (C46)Leaf Valve O36 X 0.254 (C46)
-
14619300105 Shim 46 mm. 36 X 0,305Shim 46 mm. 36 X 0,305
-
14230040 Shim 46 mm. 38 X 0,152Shim 46 mm. 38 X 0,152
-
14230041 Shim 46 mm. 38 X 0,203Shim 46 mm. 38 X 0,203
-
14230042 Shim 46 mm. 38 X 0,254Shim 46 mm. 38 X 0,254
-
14619300106 Shim 46 mm. 38 X 0,305Shim 46 mm. 38 X 0,305
-
14503189039 Leaf Valve O40 X 0.152 (C46)Leaf Valve O40 X 0.152 (C46)
-
14619300112 Shim 46 mm. 40 X 0,203Shim 46 mm. 40 X 0,203
-
14619300136 Shim 46 mm. 40 X 0,254Shim 46 mm. 40 X 0,254
-
14619300107 Shim 46 mm. 40 X 0,305Shim 46 mm. 40 X 0,305
