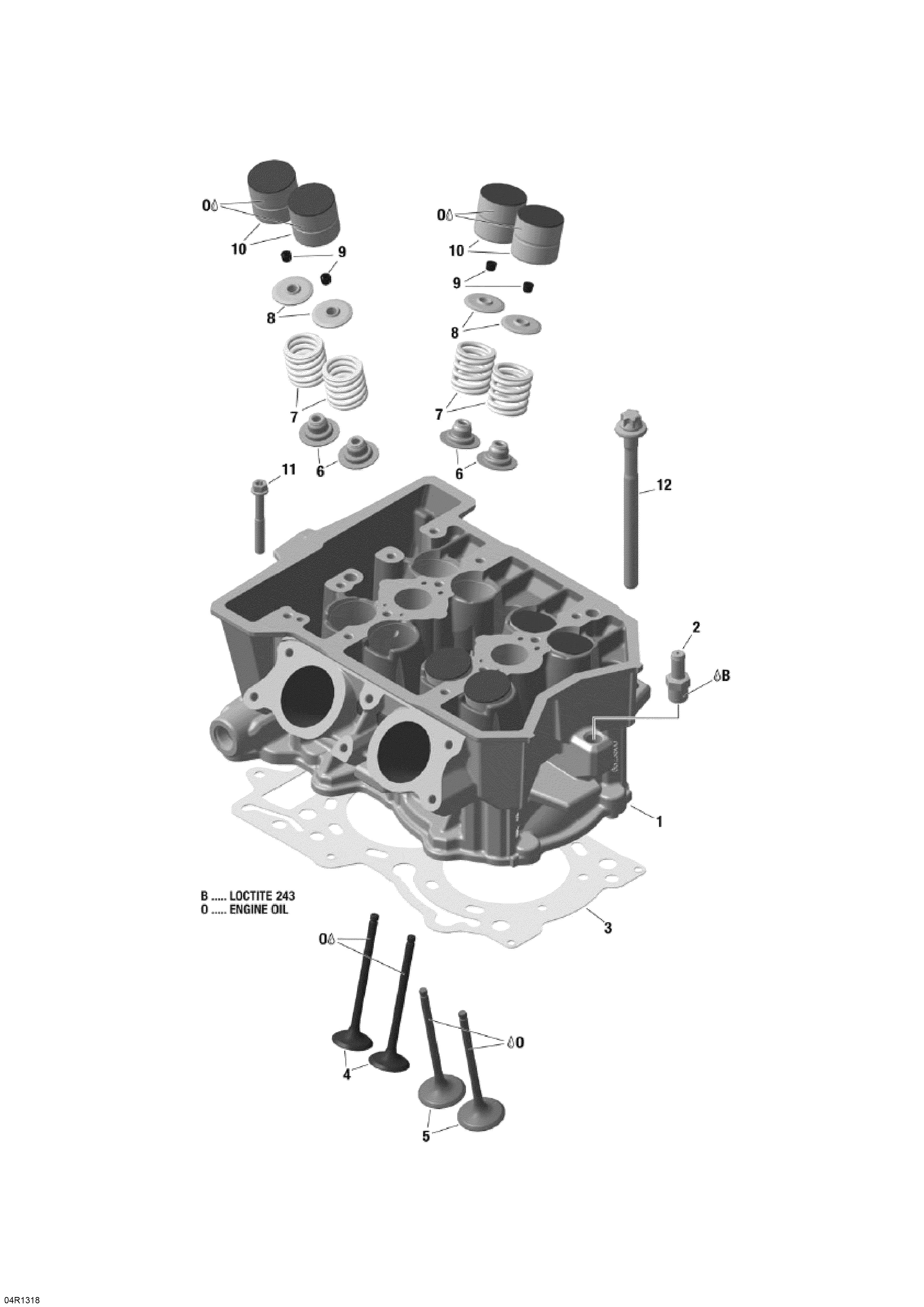

01- Cylinder Head And Exhaust Manifold для BRP Lynx Adventure LX 600 ACE - 2013

№

Артикул

Название
1

420623805 Cylinderhead Ass'y

Cylinderhead Ass'y

72 800 ₽
2

420441420 Hose Nipple M12 x 1,5. Tightening Torque 15 Nm +/- 12%

Hose Nipple M12 x 1,5. Tightening Torque 15 Nm +/- 12%

1 180 ₽
3

420431611 Cylinder Head Gasket. Included In Gasket Kit

Cylinder Head Gasket. Included In Gasket Kit

16 770 ₽
4

420855140 Exhaust Valve 25 mm

Exhaust Valve 25 mm

3 130 ₽
5

420855130 Intake Valve 29 mm

Intake Valve 29 mm

1 900 ₽
6

420431670 Valve Stem Seal. Included In Gasket Kit

Valve Stem Seal. Included In Gasket Kit

370 ₽
7

420939540 Valve Spring

Valve Spring

2 650 ₽
8

420855150 Valve Spring Retainer

Valve Spring Retainer

1 540 ₽
9

420254630 Valve Cotter

Valve Cotter

360 ₽
10

420855161 Valve Lifter Bucket

Valve Lifter Bucket

0 ₽
11

420440324 Hex./Torx Flange Screw M6 x 45. Tightening Torque 11 Nm +/- 12%

Hex./Torx Flange Screw M6 x 45. Tightening Torque 11 Nm +/- 12%

360 ₽
12

420940945 Torx Screw M9 x 113. Tightening Torque 20 Nm +/- 12%, +120? +/- 5?. +120°+/- 5° ROTATION ANGLE

Torx Screw M9 x 113. Tightening Torque 20 Nm +/- 12%, +120? +/- 5?. +120°+/- 5° ROTATION ANGLE

4 240 ₽
B

293800060 Loctite 243, 10 ml

Loctite 243, 10 ml

2 760 ₽
