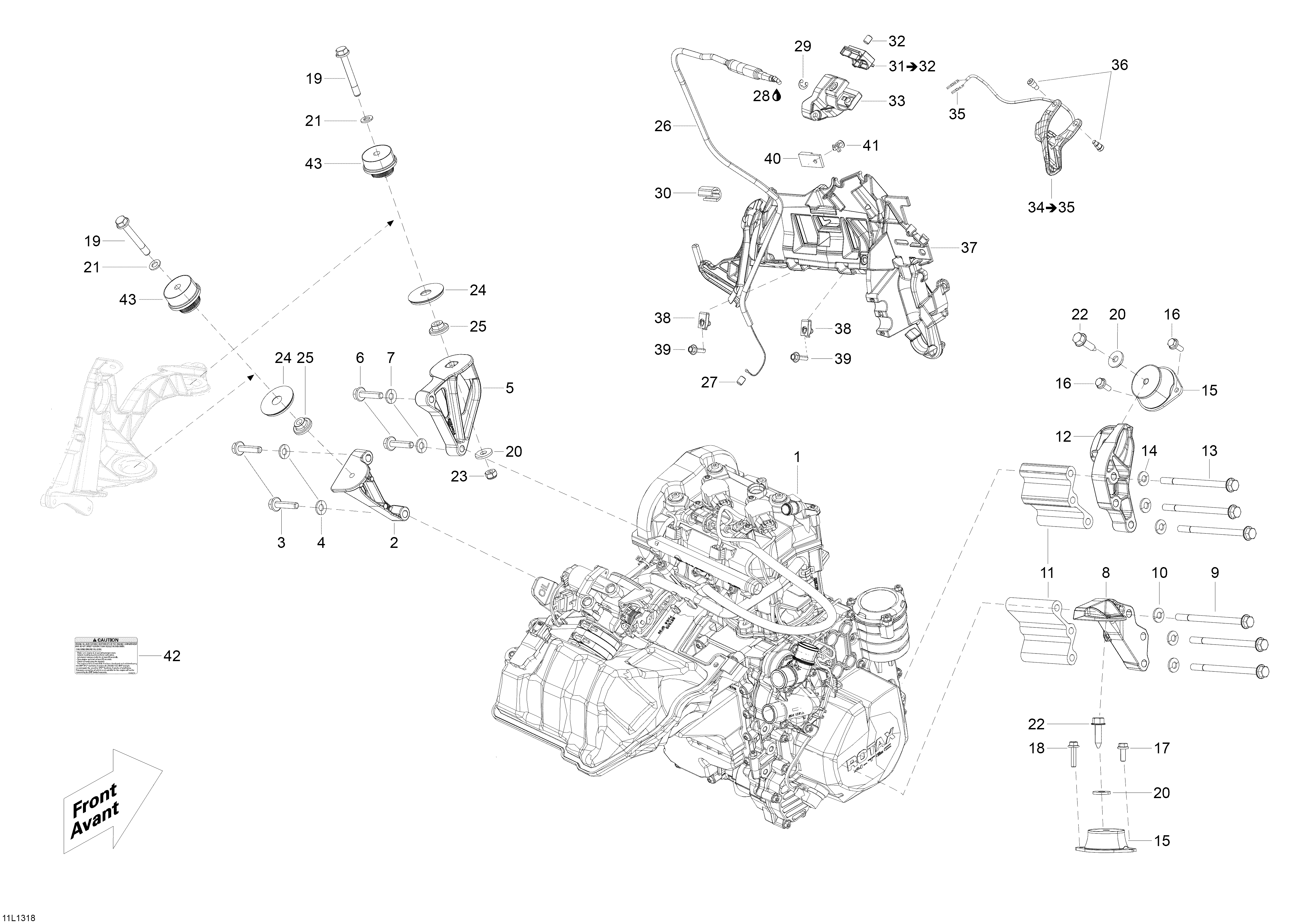

01- Engine And Engine Support для BRP Lynx Adventure LX 600 ACE - 2013
-
№АртикулНазвание
-
1300060201 Engine 602 ACEEngine 602 ACE
-
2512060660 SupportSupport
-
3207583586 Hex. Flanged Screw M8 x 35, Scotch GripHex. Flanged Screw M8 x 35, Scotch Grip
-
4234281474 Conical Spring Washer M8Conical Spring Washer M8
-
5512060661 Front Support, PTOFront Support, PTO
-
6207583586 Hex. Flanged Screw M8 x 35, Scotch GripHex. Flanged Screw M8 x 35, Scotch Grip
-
7234281474 Conical Spring Washer M8Conical Spring Washer M8
-
8512060662 Rear Support, MAGRear Support, MAG
-
9230582544 Hex. Flanged Screw M8 x 125, Scotch GripHex. Flanged Screw M8 x 125, Scotch Grip
-
10234281474 Conical Spring Washer M8Conical Spring Washer M8
-
11512060505 ShimShim
-
12512060663 Front Support, MAGFront Support, MAG
-
13230582544 Hex. Flanged Screw M8 x 125, Scotch GripHex. Flanged Screw M8 x 125, Scotch Grip
-
14234281474 Conical Spring Washer M8Conical Spring Washer M8
-
15512060729 Rubber MountRubber Mount
-
16207561644 Hex. Flanged Screw M6 x 16, Scotch GripHex. Flanged Screw M6 x 16, Scotch Grip
-
17207561644 Hex. Flanged Screw M6 x 16, Scotch GripHex. Flanged Screw M6 x 16, Scotch Grip
-
18207562534 Hex. Flanged Screw M6 x 25, Scotch GripHex. Flanged Screw M6 x 25, Scotch Grip
-
19207586044 Hex. Flanged Screw M8 x 60, Scotch GripHex. Flanged Screw M8 x 60, Scotch Grip
-
20503183200 Washer, YellowWasher, Yellow
-
21250200008 Flat Washer 8 mmFlat Washer 8 mm
-
22250000257 Cone Bolt, M8 x 30Cone Bolt, M8 x 30
-
23232581414 Hex. Elastic Nut M8Hex. Elastic Nut M8
-
24512060647 StopperStopper
-
25512060285 SpacerSpacer
-
26512060606 Throttle CableThrottle Cable
-
27707000434 Cable GuideCable Guide
-
28619600021 Loctite 8104 (Dielectric Grease), 75mlLoctite 8104 (Dielectric Grease), 75ml
-
29414274500 CirclipCirclip
-
30512060313 ProtectorProtector
-
31512060859 Upper Housing Ass'y. Includes 31 To 32Upper Housing Ass'y. Includes 31 To 32
-
32414440800 Set Screw M8 x 10Set Screw M8 x 10
-
33512060860 Lower HousingLower Housing
-
34512060616 Throttle Handle. Includes 34 To 35Throttle Handle. Includes 34 To 35
-
35515175232 Terminal MaleTerminal Male
-
36732601143 Flanged ScrewFlanged Screw
-
37512060509 Module SupportModule Support
-
38250000079 Panel Nut M5Panel Nut M5
-
39207552044 Hex. Flanged Screw M5 x 20, Scotch GripHex. Flanged Screw M5 x 20, Scotch Grip
-
40270000141 ClipClip
-
41293150027 RivetRivet
-
42516005521 Caution Decal, Checking Engine Oil LevelCaution Decal, Checking Engine Oil Level
-
43512060295 Rubber MountRubber Mount
