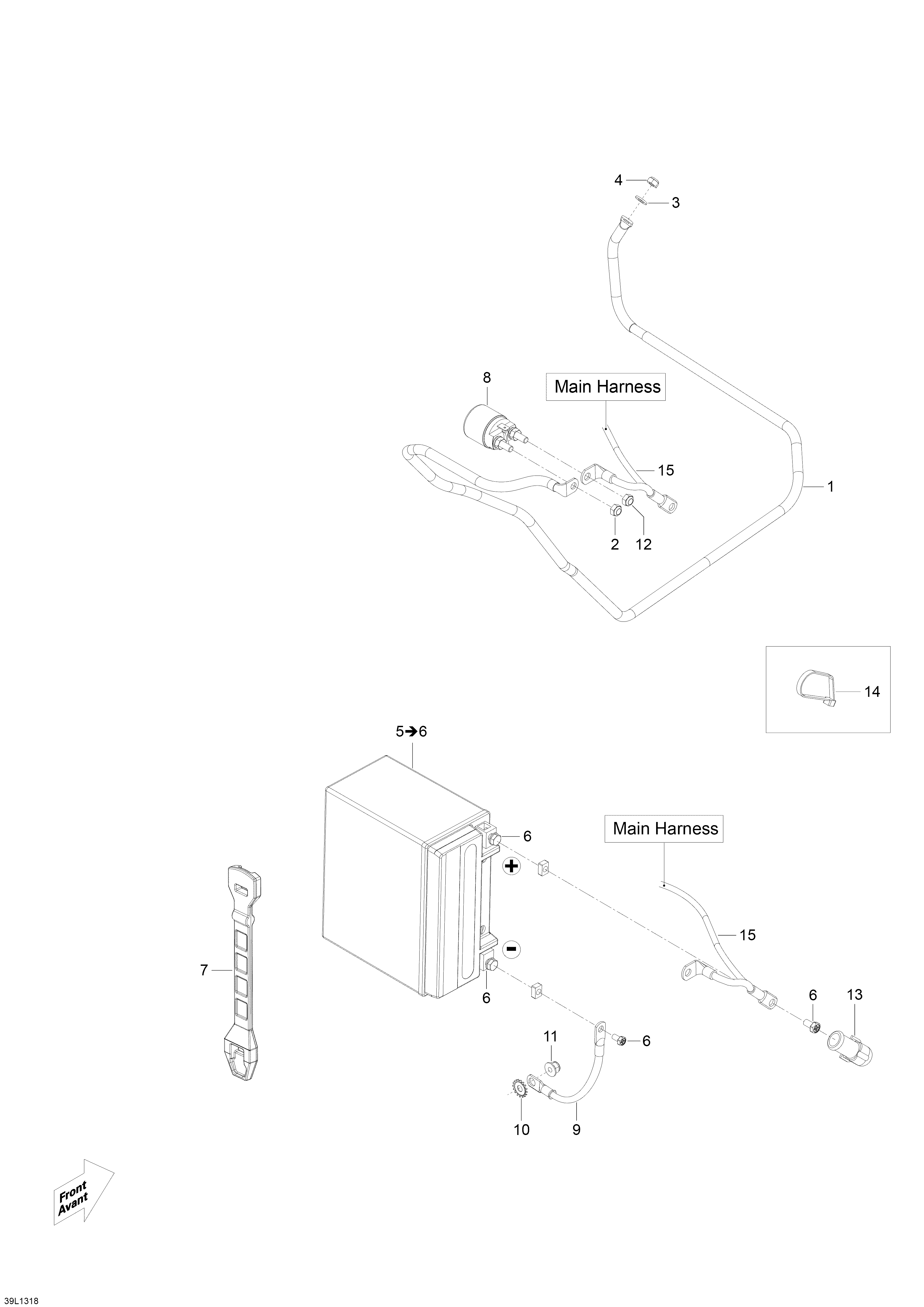

10- Battery And Starter для BRP Lynx Adventure LX 600 ACE - 2013
-
№АртикулНазвание
-
1515176966 Battery WireBattery Wire
-
2232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
3234061410 Flat WasherFlat Washer
-
4232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
5296000295 Battery 18 Amp. Includes 5 To 6Battery 18 Amp. Includes 5 To 6
-
6295500849 Battery Fastener KitBattery Fastener Kit
-
7515176944 StrapStrap
-
8515176942 Starter RelayStarter Relay
-
9515176943 Ground WireGround Wire
-
10250200041 Lock Washer Serrated M6Lock Washer Serrated M6
-
11233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
12232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
13710000495 Protector CapProtector Cap
-
14414115200 Tie Rap 180 mmTie Rap 180 mm
-
14293750002 Tie Rap 142 mmTie Rap 142 mm
-
14293750001 Tie Rap 94 mmTie Rap 94 mm
-
14605627000 Tie RapTie Rap
-
15515177126 Main HarnessMain Harness
