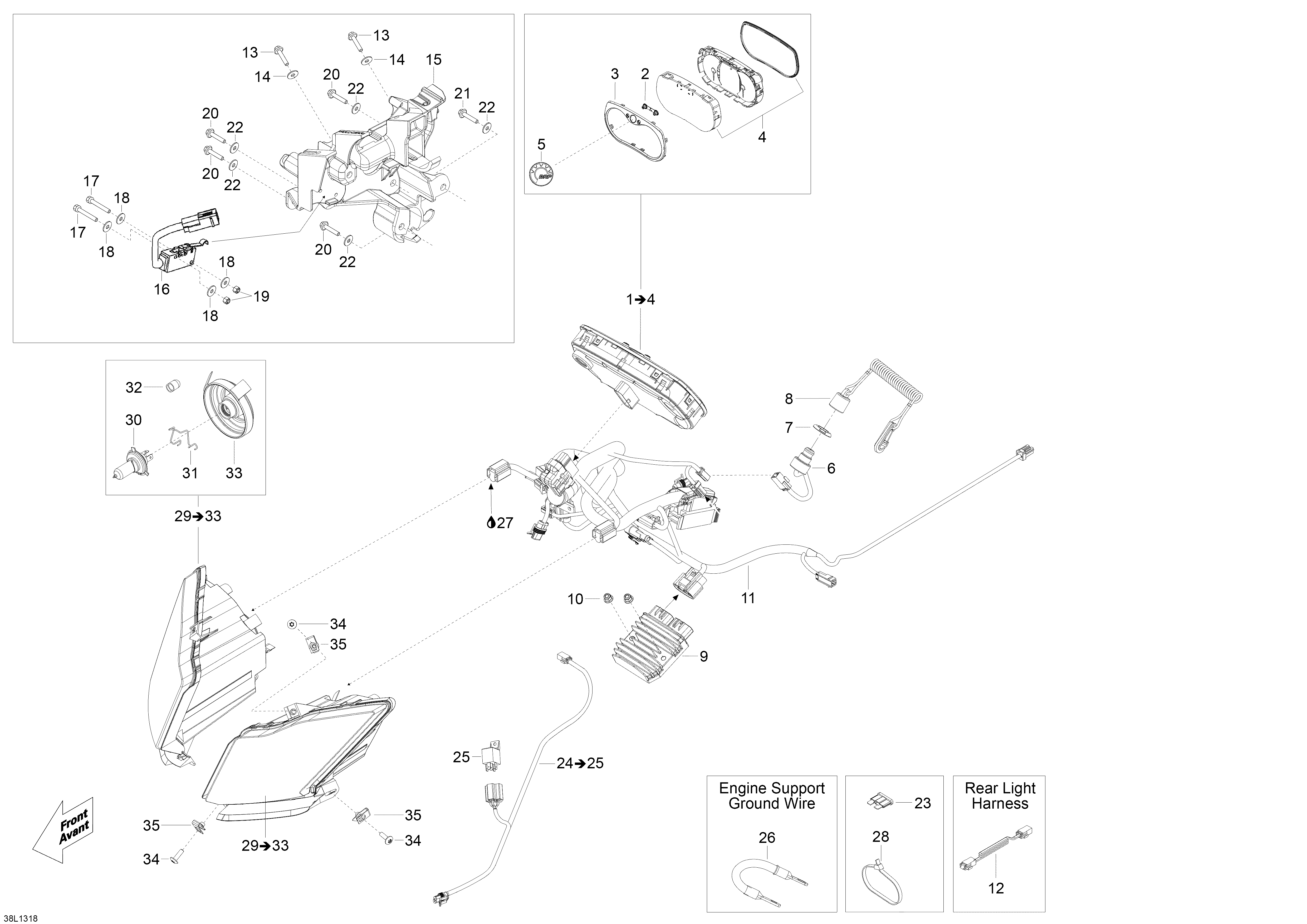

10- Electrical System для BRP Lynx Adventure LX 600 ACE - 2013
-
№АртикулНазвание
-
1515177121 Speedometer. Includes 1 To 4Speedometer. Includes 1 To 4
-
2415129355 Speedometer ButtonSpeedometer Button
-
3415129370 Gauge RingGauge Ring
-
4415129349 LensLens
-
5219902677 BRP LogoBRP Logo
-
6515177249 Dess SwitchDess Switch
-
7278000508 Safety Switch NutSafety Switch Nut
-
8515177057 Dess CapDess Cap
-
9710001103 Voltage RegulatorVoltage Regulator
-
10233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
11515177126 Main HarnessMain Harness
-
12515177032 Rear Light HarnessRear Light Harness
-
13211000023 Hex. Screw 10-14 x 7/8Hex. Screw 10-14 x 7/8
-
14234062600 Flat Washer M6Flat Washer M6
-
15515176866 PlatePlate
-
16515176881 Switch Ass'ySwitch Ass'y
-
17207132044 Hex. Screw M3 x 20Hex. Screw M3 x 20
-
18234032600 Flat Washer M3, StainlessFlat Washer M3, Stainless
-
19232531423 Elastic Stop Nut M3Elastic Stop Nut M3
-
20210262040 Hex. Flanged Screw M6 x 20Hex. Flanged Screw M6 x 20
-
21210262580 Hex. Flanged Forming Screw M6 x 25Hex. Flanged Forming Screw M6 x 25
-
22250200039 Flat WasherFlat Washer
-
23710000742 Little Fuse, 5 ALittle Fuse, 5 A
-
23710000744 Little Fuse, 10 ALittle Fuse, 10 A
-
23710000745 Little Fuse, 15 ALittle Fuse, 15 A
-
23710000746 Little Fuse, 20 ALittle Fuse, 20 A
-
23710000747 Little Fuse, 30 ALittle Fuse, 30 A
-
24515177105 Radiator Fan Harness. Includes 24 To 25Radiator Fan Harness. Includes 24 To 25
-
25410113200 RelayRelay
-
26515177014 Ground WireGround Wire
-
27619600021 Loctite 8104 (Dielectric Grease), 75 mlLoctite 8104 (Dielectric Grease), 75 ml
-
28414115200 Tie Rap 180 mmTie Rap 180 mm
-
28293750002 Tie Rap 142 mmTie Rap 142 mm
-
28293750001 Tie Rap 94 mmTie Rap 94 mm
-
28605627000 Tie RapTie Rap
-
29517304194 Headlamp Ass'y RH. Includes 29 To 33Headlamp Ass'y RH. Includes 29 To 33
-
29517304195 Headlamp Ass'y LH. Includes 29 To 33Headlamp Ass'y LH. Includes 29 To 33
-
30515176274 Halogen Bulb, 60/55 W, 12 VHalogen Bulb, 60/55 W, 12 V
-
32515176498 CapCap
-
33515176499 CoverCover
-
34250000128 Torx Truss Screw M6 x 20Torx Truss Screw M6 x 20
-
35250100113 Panel Nut M6Panel Nut M6
