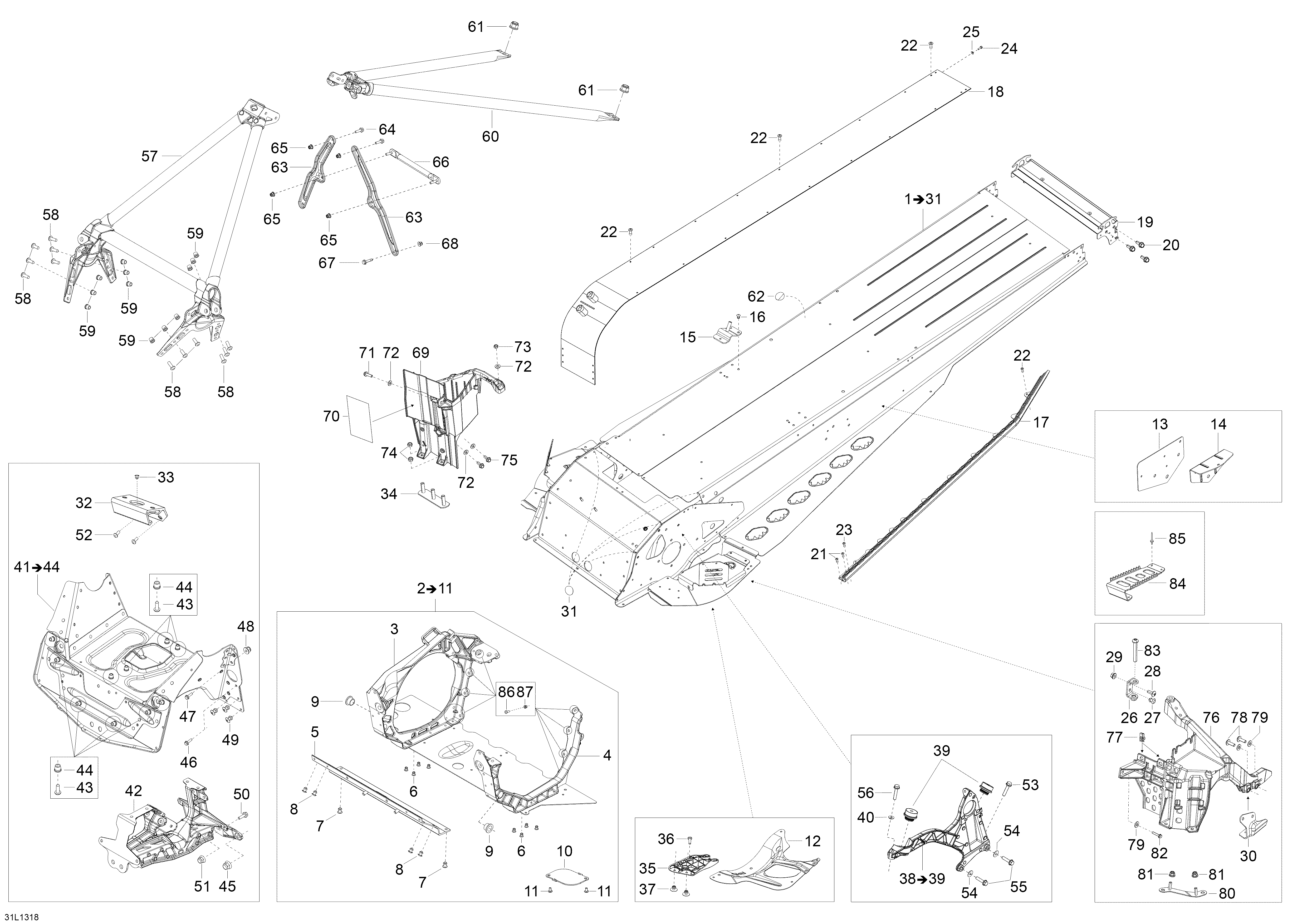

09- Frame для BRP Lynx Adventure LX 600 ACE - 2013
-
№АртикулНазвание
-
1518327079 Frame Ass?y. Includes 1 To 31Frame Ass?y. Includes 1 To 31
-
2518326507 E Module. Includes 2 To 11E Module. Includes 2 To 11
-
3518326328 Member RHMember RH
-
4518326330 Member LHMember LH
-
5518326198 Front MemberFront Member
-
6390909100 RivetRivet
-
7293150120 RivetRivet
-
8293150119 RivetRivet
-
9505073317 CushionCushion
-
10518326757 Oil PlateOil Plate
-
11250000325 Torx-Truss M6 x 12Torx-Truss M6 x 12
-
12518324874 Reinforcement RHReinforcement RH
-
12518324875 Reinforcement LHReinforcement LH
-
13518327086 Rear Arm SupportRear Arm Support
-
14518327087 Angle SupportAngle Support
-
15518326421 Rear Base RHRear Base RH
-
15518326443 Rear Base LHRear Base LH
-
16293150119 RivetRivet
-
17518327068 Roller LHRoller LH
-
17518327069 Roller RHRoller RH
-
18509000701 RadiatorRadiator
-
19518326379 Rear CapRear Cap
-
20207582586 Hex. Flange Screw M8 x 25Hex. Flange Screw M8 x 25
-
21390402300 Pop Rivet 3/16Pop Rivet 3/16
-
22390909200 RivetRivet
-
23390909100 RivetRivet
-
24205061244 Socket HD. Screw M6 x 12Socket HD. Screw M6 x 12
-
26518326961 AttachAttach
-
27293150147 RivetRivet
-
28250000534 Torx Screw M6 x 16Torx Screw M6 x 16
-
29233061414 Hex. Flange Nut M6Hex. Flange Nut M6
-
30518326960 SupportSupport
-
31518325560 Adhesive PatchAdhesive Patch
-
32518326178 Engine SupportEngine Support
-
33293150174 RivetRivet
-
34518326550 AttachAttach
-
35518325782 Deflector RHDeflector RH
-
35518325783 Deflector LHDeflector LH
-
36207561244 Hex. Flange Screw M6 x 12Hex. Flange Screw M6 x 12
-
37293150104 Pop Rivet 3/16Pop Rivet 3/16
-
38518327645 Brace. Includes 38 To 39Brace. Includes 38 To 39
-
39512060295 Rubber MountRubber Mount
-
40234281474 Spring WasherSpring Washer
-
41518327049 Cross Member. Includes 41 To 44Cross Member. Includes 41 To 44
-
42518325925 SupportSupport
-
43207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
44233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
45233281414 Elastic Flange Nut M8Elastic Flange Nut M8
-
46210262080 Hex. Forming Screw M6 x 20Hex. Forming Screw M6 x 20
-
47207662544 Hex. Flange Screw M6 x 25Hex. Flange Screw M6 x 25
-
48233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
49293150179 RivetRivet
-
50207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
51233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
52207661644 Hex. Flange Screw M6 x 16Hex. Flange Screw M6 x 16
-
53207582586 Hex. Flange Screw M8 x 25Hex. Flange Screw M8 x 25
-
54234281474 Spring WasherSpring Washer
-
55205083544 Socket HD. Screw M8 x 35Socket HD. Screw M8 x 35
-
56207584044 Hex. Flange Screw M8 x 40Hex. Flange Screw M8 x 40
-
57518326970 Front MemberFront Member
-
58207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
59233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
60518326685 Rear MemberRear Member
-
61233281414 Elastic Flange Nut M8Elastic Flange Nut M8
-
62518325560 Adhesive PatchAdhesive Patch
-
63518326848 Upper ColumnUpper Column
-
64207662086 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
65233261416 Elastic Flange Nut M6Elastic Flange Nut M6
-
66518326355 Upper ColumnUpper Column
-
67250000522 Hex. Flange Screw M6 x 25Hex. Flange Screw M6 x 25
-
68233261416 Elastic Flange Nut M6Elastic Flange Nut M6
-
69518326472 Battery SupportBattery Support
-
70514054755 Reflect FoilReflect Foil
-
71210262040 Hex. HD. Forming Screw M6 x 20Hex. HD. Forming Screw M6 x 20
-
72250200039 Flat WasherFlat Washer
-
73232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
74233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
75250000402 Torx Truss M6 x 18Torx Truss M6 x 18
-
76518326820 StirrupStirrup
-
77250000079 Extruded Panel Nut M5Extruded Panel Nut M5
-
78250000402 Torx Truss M6 x 18Torx Truss M6 x 18
-
79250200039 Flat WasherFlat Washer
-
80518326986 AttachAttach
-
81233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
82207162544 Hex. Cap Screw M6 x 25Hex. Cap Screw M6 x 25
-
83250000535 Torx Truss M8 x 55Torx Truss M8 x 55
-
84520000492 FootrestFootrest
-
85390402200 Pop Rivet 3/16Pop Rivet 3/16
-
86207662044 Hex. Flange Nut M6Hex. Flange Nut M6
-
87233261414 Elastic Flange Nut M6Elastic Flange Nut M6
