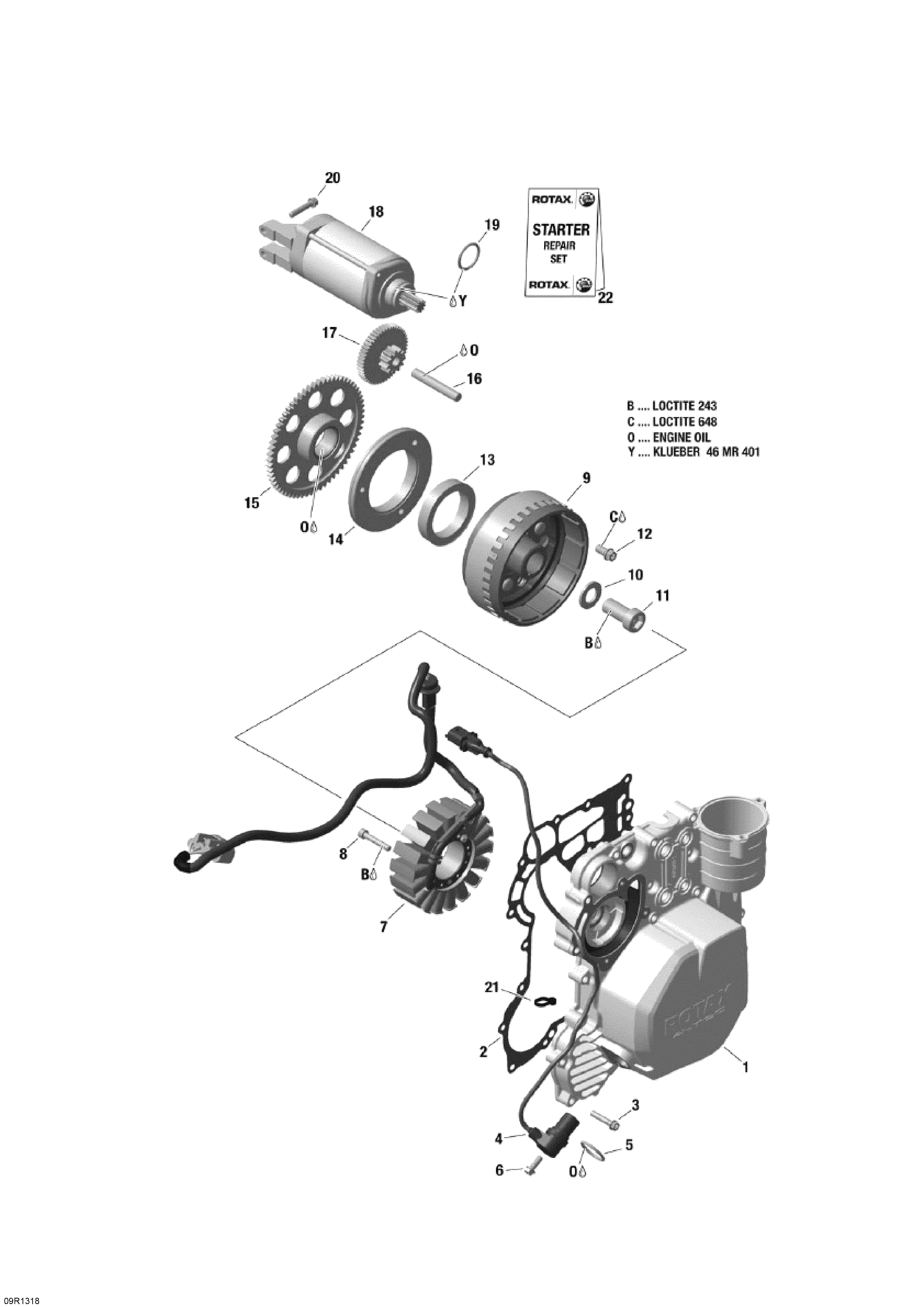

03- Magneto And Electric Starter для BRP Lynx Adventure LX 600 ACE - 2013
-
№АртикулНазвание
-
1420911052 Ignition CoverIgnition Cover
-
2420431640 Gasket. Included In Gasket KitGasket. Included In Gasket Kit
-
3420440647 Hex./Torx Flange Screw M6 x 30. Tightening Torque 11 Nm +/- 12%Hex./Torx Flange Screw M6 x 30. Tightening Torque 11 Nm +/- 12%
-
4420966570 Crankshaft Position Sensor. Includes 4 To 5Crankshaft Position Sensor. Includes 4 To 5
-
5420431580 O-Ring. Included In Gasket KitO-Ring. Included In Gasket Kit
-
6420440162 Hex./Torx Flange Screw M6 x 16. Tightening Torque 11 Nm +/- 12%Hex./Torx Flange Screw M6 x 16. Tightening Torque 11 Nm +/- 12%
-
7420296908 Stator Ass'y, 14V 420WStator Ass'y, 14V 420W
-
8420241956 Allen Screw M6 x 40. Tightening Torque 11 Nm +/- 12%Allen Screw M6 x 40. Tightening Torque 11 Nm +/- 12%
-
9420685700 Mag. Flywheel With Trigger Wheel Ass'yMag. Flywheel With Trigger Wheel Ass'y
-
10420627270 ShimShim
-
11420241549 Allen Screw M16 x 35. Tightening Torque 150 Nm +/- 7%Allen Screw M16 x 35. Tightening Torque 150 Nm +/- 7%
-
12420440854 Hex./Torx Flange Screw M8 x 16. Tightening Torque 30 Nm +/- 12%Hex./Torx Flange Screw M8 x 16. Tightening Torque 30 Nm +/- 12%
-
13420659113 Sprag ClutchSprag Clutch
-
14420659261 Sprag Clutch HousingSprag Clutch Housing
-
15420434238 Free Wheel Gear 64 T Ass'yFree Wheel Gear 64 T Ass'y
-
16420229475 Needle PinNeedle Pin
-
17420634741 Starter Double Gear 11/49 TStarter Double Gear 11/49 T
-
18420892423 Electric Starter Ass'y. Includes 18 To 19Electric Starter Ass'y. Includes 18 To 19
-
19420250140 O-Ring. Included In Gasket KitO-Ring. Included In Gasket Kit
-
20420440647 Hex./Torx Flange Screw M6 x 30. Tightening Torque 11 Nm +/- 12%Hex./Torx Flange Screw M6 x 30. Tightening Torque 11 Nm +/- 12%
-
21420866714 Tie RapTie Rap
-
22420881140 Repair Kit (Electric Starter)Repair Kit (Electric Starter)
-
B293800060 Loctite 243, 10mlLoctite 243, 10ml
-
C619600012 Loctite 609, 50mlLoctite 609, 50ml
-
Y420297616 Grease Klueber 46 MR 401, 60gGrease Klueber 46 MR 401, 60g
