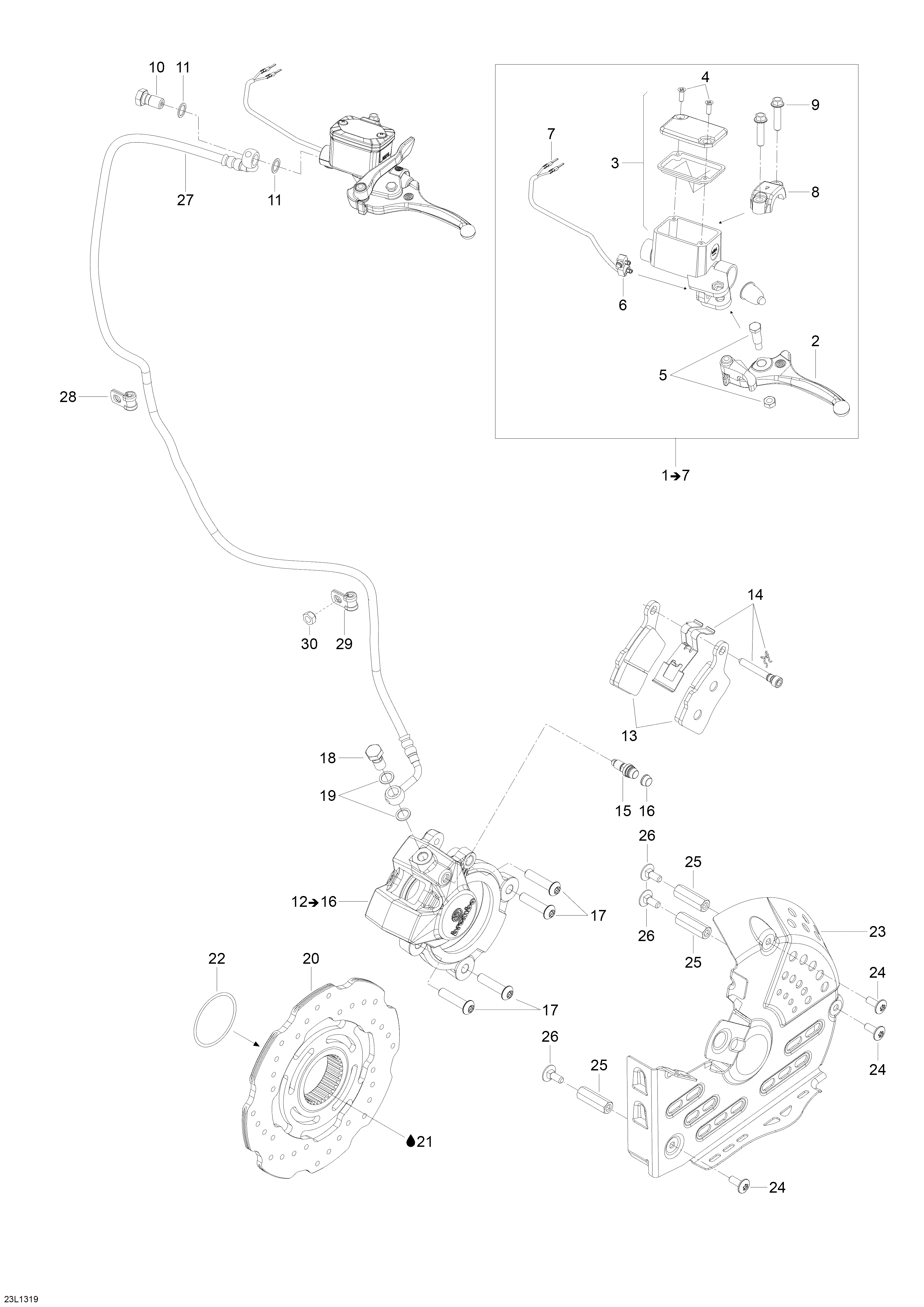

06- Hydraulic Brakes для BRP Lynx 49 Ranger 600 ACE - 2013
-
№АртикулНазвание
-
1507032518 Master Cylinder Ass’y. Includes 1 To 7Master Cylinder Ass’y. Includes 1 To 7
-
2507032476 LeverLever
-
3507032478 Reservoir Ass?y. Includes 3 To 4Reservoir Ass?y. Includes 3 To 4
-
4415129356 Screw M4 x 20Screw M4 x 20
-
5415030000 PinPin
-
6507032479 MicroswitchMicroswitch
-
7515175232 Male TerminalMale Terminal
-
8719000049 Clamp KitClamp Kit
-
9250000447 Hex. Flange Screw M6 x 25Hex. Flange Screw M6 x 25
-
10507032539 Banjo BoltBanjo Bolt
-
11705600310 Copper WasherCopper Washer
-
12507032498 Brake Caliper Ass'y. Includes 12 To 16Brake Caliper Ass'y. Includes 12 To 16
-
13507032473 Brake Pads KitBrake Pads Kit
-
14507032474 Kit, Pin, Clip, SpringKit, Pin, Clip, Spring
-
15507032475 BleederBleeder
-
16414989700 BootBoot
-
17250000301 Torx Screw M8 x 35, Scotch GripTorx Screw M8 x 35, Scotch Grip
-
18507032539 Banjo BoltBanjo Bolt
-
19705600310 Copper WasherCopper Washer
-
20507032487 DiskDisk
-
21619600013 Loctite 8151 (Antiseize), 400ml SprayLoctite 8151 (Antiseize), 400ml Spray
-
22293300134 O RingO Ring
-
23507032492 Disk ProtectorDisk Protector
-
24250000223 Torx Screw M6 x 16Torx Screw M6 x 16
-
25507032497 Threaded TubeThreaded Tube
-
26207761644 Carriage Bolt M6 x 16Carriage Bolt M6 x 16
-
27507032528 HoseHose
-
28705600459 ClampClamp
-
29518321570 Open ClampOpen Clamp
-
30232561434 Elastic Stop Nut M6Elastic Stop Nut M6
