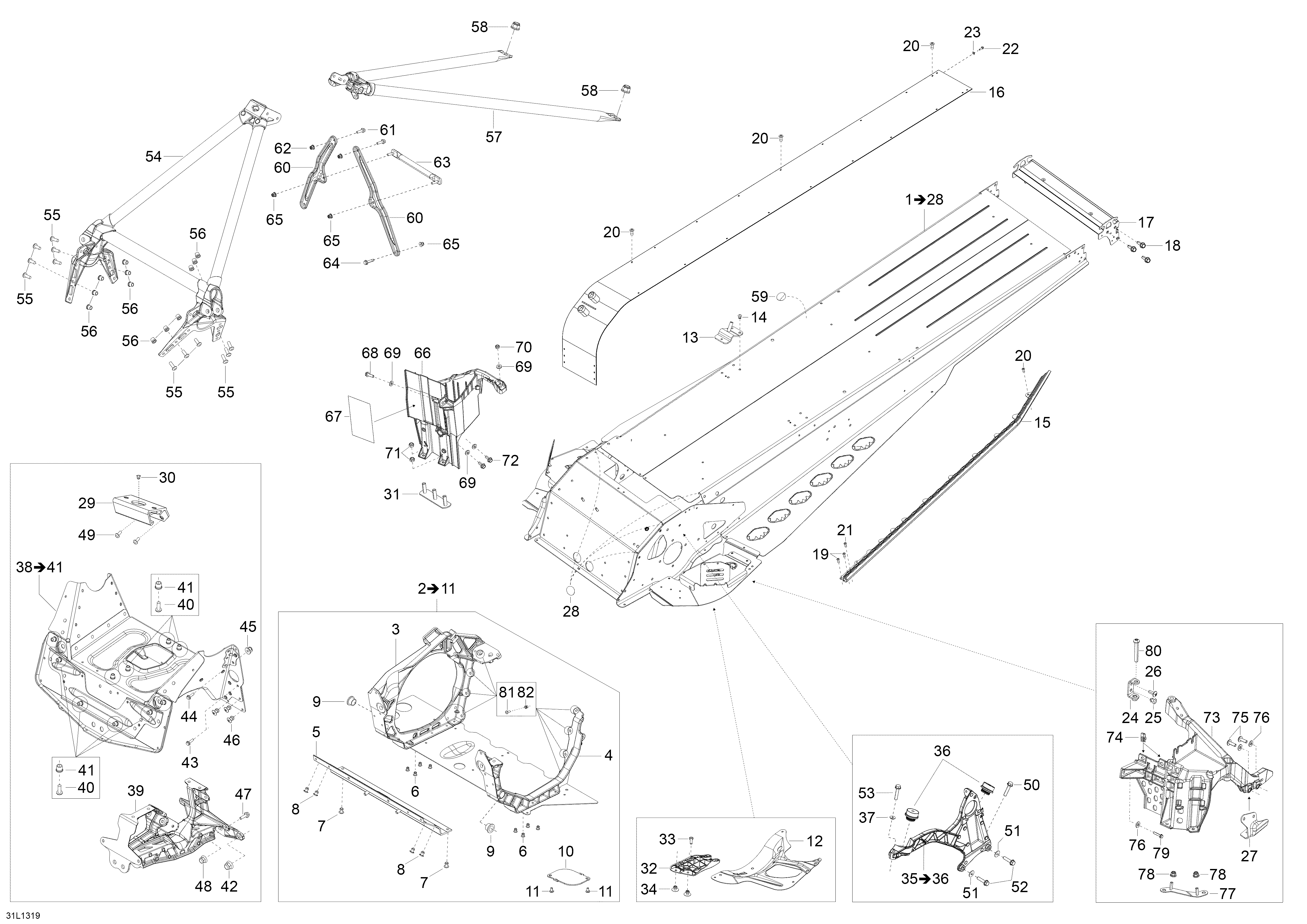

09- Frame для BRP Lynx 49 Ranger 600 ACE - 2013
-
№АртикулНазвание
-
1518327118 Frame Ass?y. Includes 1 To 28Frame Ass?y. Includes 1 To 28
-
2518326507 E Module. Includes 2 To 11E Module. Includes 2 To 11
-
3518326328 Member RHMember RH
-
4518326330 Member LHMember LH
-
5518326198 Front MemberFront Member
-
6390909100 RivetRivet
-
7293150120 RivetRivet
-
8293150119 RivetRivet
-
9505073317 CushionCushion
-
10518326757 Oil PlateOil Plate
-
11250000325 Torx-Truss M6 x 12Torx-Truss M6 x 12
-
12518324874 Reinforcement RHReinforcement RH
-
12518324875 Reinforcement LHReinforcement LH
-
13518326421 Rear Base RHRear Base RH
-
13518326443 Rear Base LHRear Base LH
-
14293150119 RivetRivet
-
15518327068 Roller LHRoller LH
-
15518327069 Roller RHRoller RH
-
16509000645 RadiatorRadiator
-
17518326379 Rear ProfileRear Profile
-
18207582586 Hex. Flange Screw M8 x 25Hex. Flange Screw M8 x 25
-
19390402300 Pop Rivet 3/16Pop Rivet 3/16
-
20390909200 RivetRivet
-
21390909100 RivetRivet
-
22205061244 Socket HD. Screw M6 x 12Socket HD. Screw M6 x 12
-
24518326961 AttachAttach
-
25293150147 RivetRivet
-
26250000534 Torx Screw M6 x 16Torx Screw M6 x 16
-
27518326960 SupportSupport
-
28518325560 Adhesive PatchAdhesive Patch
-
29518326178 Engine SupportEngine Support
-
30293150174 RivetRivet
-
31518326550 AttachAttach
-
32518325782 Deflector RHDeflector RH
-
32518325783 Deflector LHDeflector LH
-
33207561244 Hex. Flange Screw M6 x 12Hex. Flange Screw M6 x 12
-
34293150104 Pop Rivet 3/16Pop Rivet 3/16
-
35518327645 Brace. Includes 35 To 36Brace. Includes 35 To 36
-
36512060295 Rubber MountRubber Mount
-
37234281474 Spring WasherSpring Washer
-
38518327049 Cross Member. Includes 38 To 41Cross Member. Includes 38 To 41
-
39518327475 SupportSupport
-
40207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
41233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
42233281414 Elastic Flange Nut M8Elastic Flange Nut M8
-
43210262080 Hex. Forming Screw M6 x 20Hex. Forming Screw M6 x 20
-
44207662544 Hex. Flange Screw M6 x 25Hex. Flange Screw M6 x 25
-
45233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
46293150179 RivetRivet
-
47207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
48233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
49207661644 Hex. Flange Screw M6 x 16Hex. Flange Screw M6 x 16
-
50207582586 Hex. Flange Screw M8 x 25Hex. Flange Screw M8 x 25
-
51234281474 Spring WasherSpring Washer
-
52205083544 Socket HD. Screw M8 x 35Socket HD. Screw M8 x 35
-
53207584044 Hex. Flange Screw M8 x 40Hex. Flange Screw M8 x 40
-
54518326970 Front MemberFront Member
-
55207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
56233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
57518326685 Rear MemberRear Member
-
58233281414 Elastic Flange Nut M8Elastic Flange Nut M8
-
59518325560 Adhesive PatchAdhesive Patch
-
60518326848 Upper ColumnUpper Column
-
61207662086 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
62233261416 Elastic Flange Nut M6Elastic Flange Nut M6
-
63518326355 Upper ColumnUpper Column
-
64250000522 Hex. Flange Screw M6 x 25Hex. Flange Screw M6 x 25
-
65233261416 Elastic Flange Nut M6Elastic Flange Nut M6
-
66518326472 Battery SupportBattery Support
-
67514054755 Reflect FoilReflect Foil
-
68210262040 Hex. HD. Forming Screw M6 x 20Hex. HD. Forming Screw M6 x 20
-
69250200039 Flat WasherFlat Washer
-
70232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
71233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
72250000402 Torx Truss M6 x 18Torx Truss M6 x 18
-
73518326820 StirrupStirrup
-
74250000079 Extruded Panel Nut M5Extruded Panel Nut M5
-
75250000402 Torx Truss M6 x 18Torx Truss M6 x 18
-
76250200039 Flat WasherFlat Washer
-
77518326986 AttachAttach
-
78233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
79207162544 Hex. Cap Screw M6 x 25Hex. Cap Screw M6 x 25
-
80250000535 Torx Truss M8 x 55Torx Truss M8 x 55
-
81207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
82233261414 Elastic Flange Nut M6Elastic Flange Nut M6
