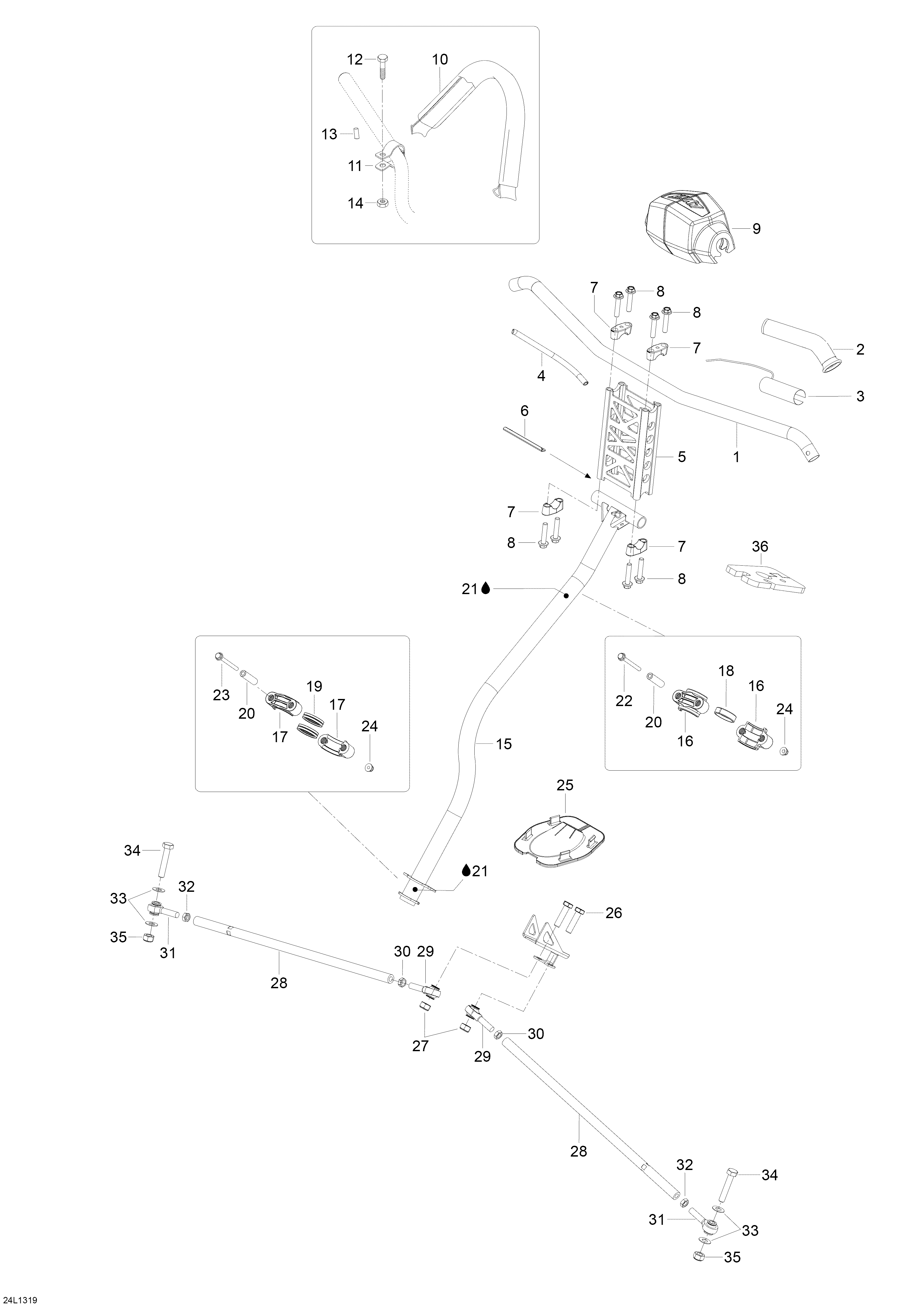

07- Steering System для BRP Lynx 49 Ranger 600 ACE - 2013
-
№АртикулНазвание
-
1506152399 Handle BarHandle Bar
-
2506152483 GripGrip
-
3506152467 Heated FilmHeated Film
-
4515175830 Protector TubeProtector Tube
-
5860200821 ExtensionExtension
-
6506152526 Limiter PlateLimiter Plate
-
7506152395 Steering SupportSteering Support
-
8250000285 Hex. Flanged Screw M8 x 40Hex. Flanged Screw M8 x 40
-
9506152265 Steering PadSteering Pad
-
10506152115 Strap Ass?yStrap Ass?y
-
11506152536 Plate SupportPlate Support
-
12207662084 Screw M6 x 20Screw M6 x 20
-
13506152156 BushingBushing
-
14233261494 Elastic Flange Nut M6Elastic Flange Nut M6
-
15506152585 Main TubeMain Tube
-
16506152508 Half Housing UpperHalf Housing Upper
-
17506152217 Half Housing LowerHalf Housing Lower
-
18506152509 Vibrat. Gasket UpperVibrat. Gasket Upper
-
19506152518 Vibrat. Gasket LowerVibrat. Gasket Lower
-
20506152297 Housing BushingHousing Bushing
-
22207667086 Hex Flanged Screw M6 x 70Hex Flanged Screw M6 x 70
-
23207667086 Hex Flanged Screw M6 x 70Hex Flanged Screw M6 x 70
-
24233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
25506152163 PlatePlate
-
26207004044 Hex. Screw M10 x 40Hex. Screw M10 x 40
-
27232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
28506152482 Tie RodTie Rod
-
29506152081 Ball JointBall Joint
-
30250100016 LH Hex Jam Nut M10LH Hex Jam Nut M10
-
31506152019 Ball JointBall Joint
-
32732610010 RH Hex Jam Nut M10RH Hex Jam Nut M10
-
33506152194 WasherWasher
-
34207005544 Hex Screw M10 x 55Hex Screw M10 x 55
-
35232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
36506152521 CushionCushion
