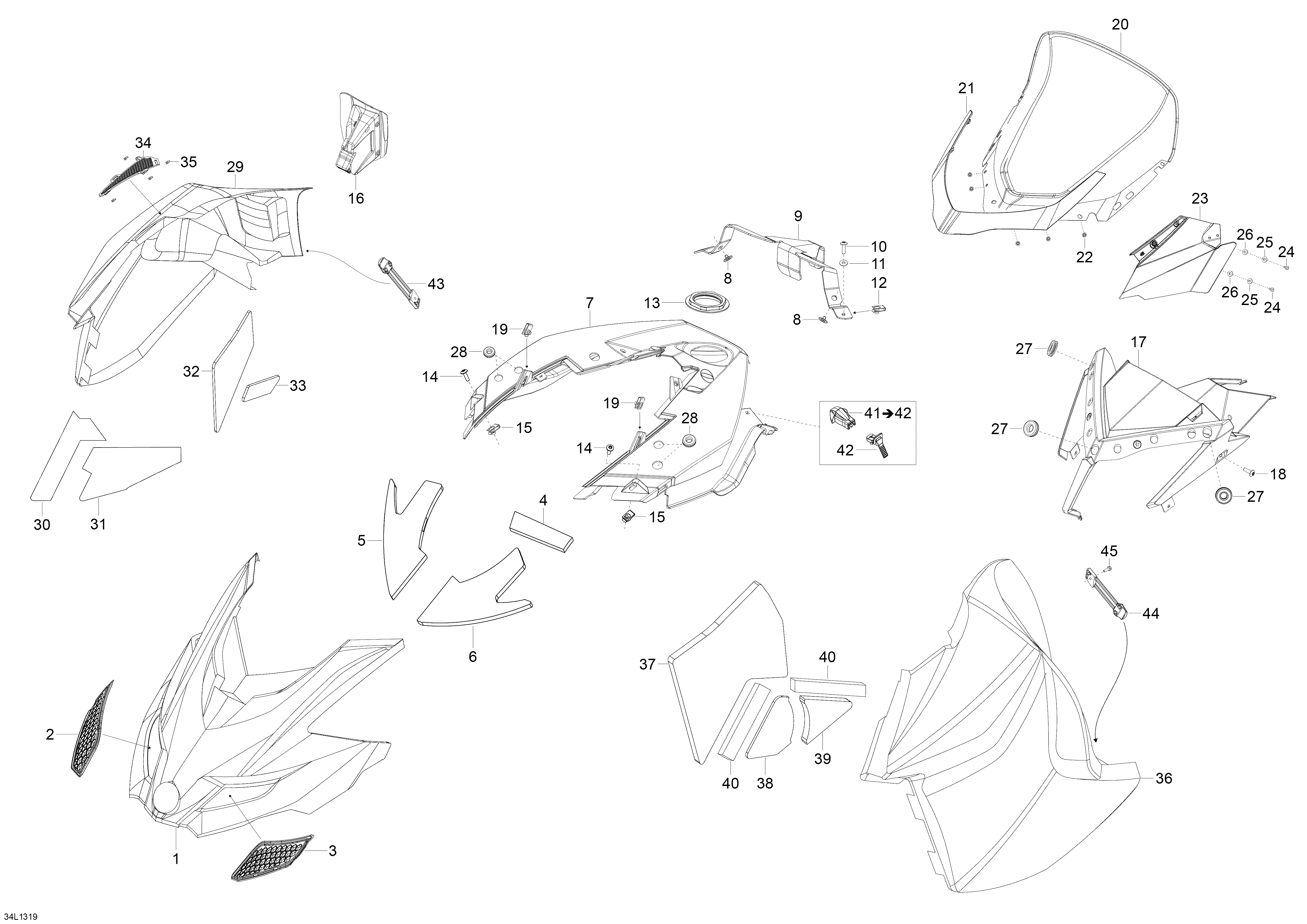

09- Hood для BRP Lynx 49 Ranger 600 ACE - 2013
-
№АртикулНазвание
-
1517304859 HoodHood
-
2517304141 Hood Grill RHHood Grill RH
-
3517304008 Hood Grill LHHood Grill LH
-
4517304266 FoamFoam
-
5517304263 FoamFoam
-
6517304321 FoamFoam
-
7517304647 ConsoleConsole
-
8605452114 Rubber PlugRubber Plug
-
9517305363 Console Support, BlackConsole Support, Black
-
10250000130 Torx Truss M5 x 20Torx Truss M5 x 20
-
11517124300 WasherWasher
-
12250000079 Extruded Panel Nut M5Extruded Panel Nut M5
-
13517304518 Console NutConsole Nut
-
14250000128 Torx Truss M5 x 20Torx Truss M5 x 20
-
15250100113 Extruded Panel Nut M6Extruded Panel Nut M6
-
16517304500 Console RHConsole RH
-
17517304576 Indicator SupportIndicator Support
-
18250000128 Torx Truss M6 x 20Torx Truss M6 x 20
-
19250100113 Extruded Panel Nut M6Extruded Panel Nut M6
-
20517304614 WindshieldWindshield
-
21517303607 SupportSupport
-
22732610072 Push NutPush Nut
-
23517305135 Air Deflector RHAir Deflector RH
-
23517305136 Air Deflector LHAir Deflector LH
-
24250000146 Torx Truss K50 x 16Torx Truss K50 x 16
-
25250200025 Washer M5Washer M5
-
26250200024 Rubber Washer M5Rubber Washer M5
-
27517303756 GrommetGrommet
-
28517303756 GrommetGrommet
-
29517304981 Side Panel RHSide Panel RH
-
30517304264 Aluminium FoilAluminium Foil
-
31517304265 Aluminium FoilAluminium Foil
-
32517304220 FoamFoam
-
33517304306 FoamFoam
-
34517304007 GrillGrill
-
35517302785 ClipClip
-
36517304990 Side Panel LHSide Panel LH
-
37517304219 FoamFoam
-
38517304305 FoamFoam
-
39517304340 FoamFoam
-
40517305108 FoamFoam
-
41860200239 Latch Ass?y. Includes 41 To 42Latch Ass?y. Includes 41 To 42
-
42517303981 Latch PanelLatch Panel
-
43517304551 Latch PanelLatch Panel
-
44517303808 Latch Panel LHLatch Panel LH
-
45250000128 Torx Truss M6 x 20Torx Truss M6 x 20
