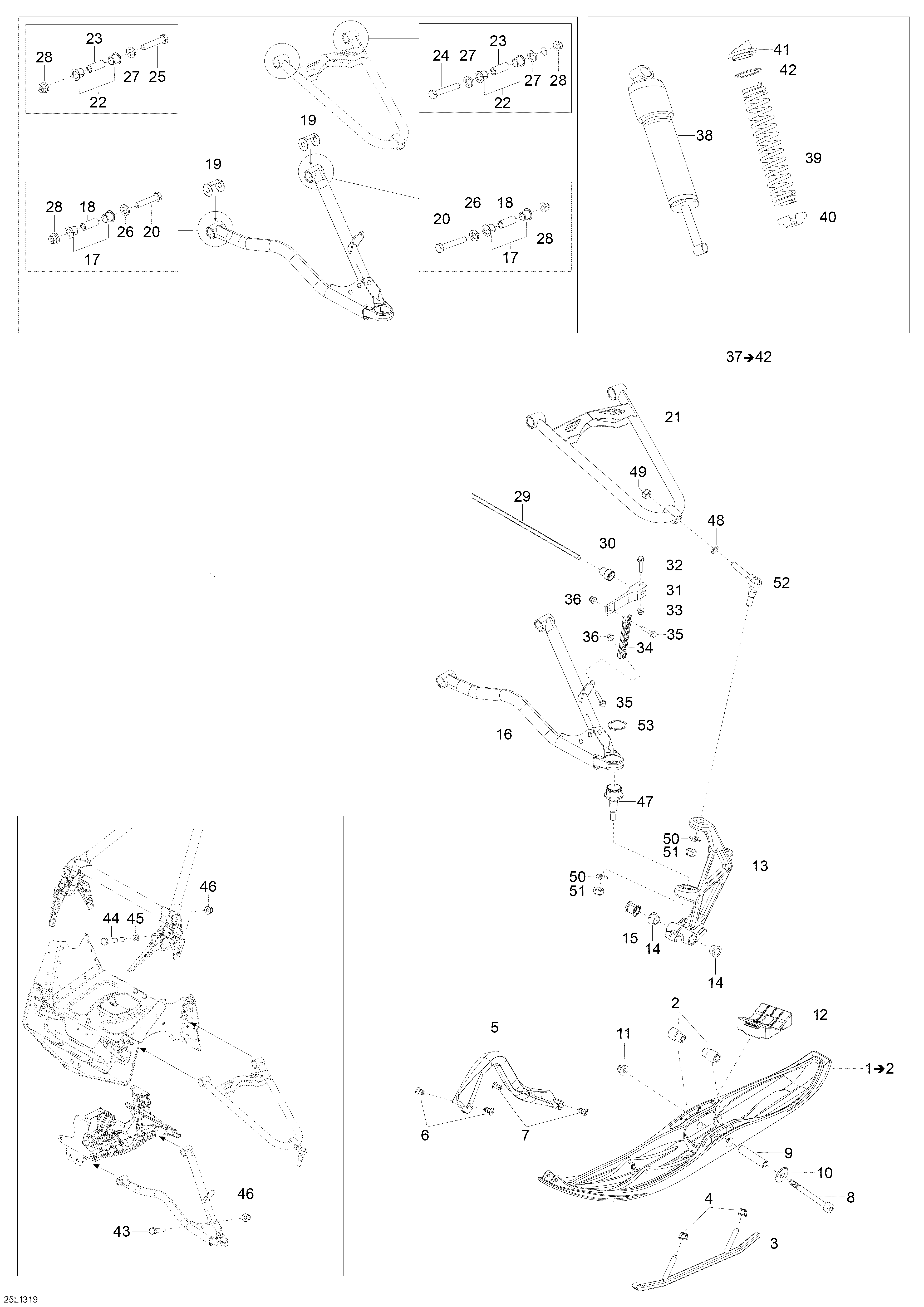

07- Front Suspension And Ski для BRP Lynx 49 Ranger 600 ACE - 2013
-
№АртикулНазвание
-
1505073034 ADJ Ski. Includes 1 To 2ADJ Ski. Includes 1 To 2
-
2605348392 BushingBushing
-
3605352643 Runner KitRunner Kit
-
4233201414 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
5505072102 Handle (White)Handle (White)
-
6505071812 RetainerRetainer
-
7505072133 RetainerRetainer
-
840225 Hex. Cap Screw M10 x 140Hex. Cap Screw M10 x 140
-
9506133300 SpacerSpacer
-
10732900049 WasherWasher
-
11233201414 Elastic Flange Nut M10Elastic Flange Nut M10
-
12505073149 Rubber DamperRubber Damper
-
13505073011 Ski Leg LHSki Leg LH
-
13505073012 Ski Leg RHSki Leg RH
-
14505072690 CushionCushion
-
15505071999 SpacerSpacer
-
16505073225 Lower Arm RHLower Arm RH
-
16505073226 Lower Arm LHLower Arm LH
-
17503191766 CushionCushion
-
18505072401 Aluminum BushingAluminum Bushing
-
19505072634 Wear PlateWear Plate
-
20250000291 Hex. Cap Screw M10 x 70Hex. Cap Screw M10 x 70
-
21505072832 Upper ArmUpper Arm
-
22505072250 BushingBushing
-
23505072143 BushingBushing
-
24250000290 Screw Hex. M10 x 60Screw Hex. M10 x 60
-
25250000289 Screw Hex. M10 x 50Screw Hex. M10 x 50
-
26503189564 WasherWasher
-
27505072392 WasherWasher
-
28250100088 Hex. Elastic Hex. Nut M10Hex. Elastic Hex. Nut M10
-
29505072602 StabilisatorStabilisator
-
30505072064 BushingBushing
-
31505072394 Stabilisator LeverStabilisator Lever
-
32207663046 Hex. Flanged Screw M6 x 30Hex. Flanged Screw M6 x 30
-
33233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
34505072204 Double Ball Joint LinkDouble Ball Joint Link
-
35207663046 Hex. Flanged Screw M6 x 30Hex. Flanged Screw M6 x 30
-
36233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
38505072835 Front ShockFront Shock
-
39503192286 SpringSpring
-
40706200881 Spring StopperSpring Stopper
-
41505070150 Adjuster CamAdjuster Cam
-
42503191872 Spring GuideSpring Guide
-
43207005544 Hex. Cap Screw M10 x 55Hex. Cap Screw M10 x 55
-
44207006544 Hex. Cap Screw M10 x 65Hex. Cap Screw M10 x 65
-
45503189564 WasherWasher
-
46233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
47505072682 Lower Ball JointLower Ball Joint
-
48503189276 WasherWasher
-
49250100089 Nut M12Nut M12
-
50234021410 Flat WasherFlat Washer
-
51250100089 Nut M12Nut M12
-
52505072257 Upper Ball JointUpper Ball Joint
-
53293370035 CirclipCirclip
