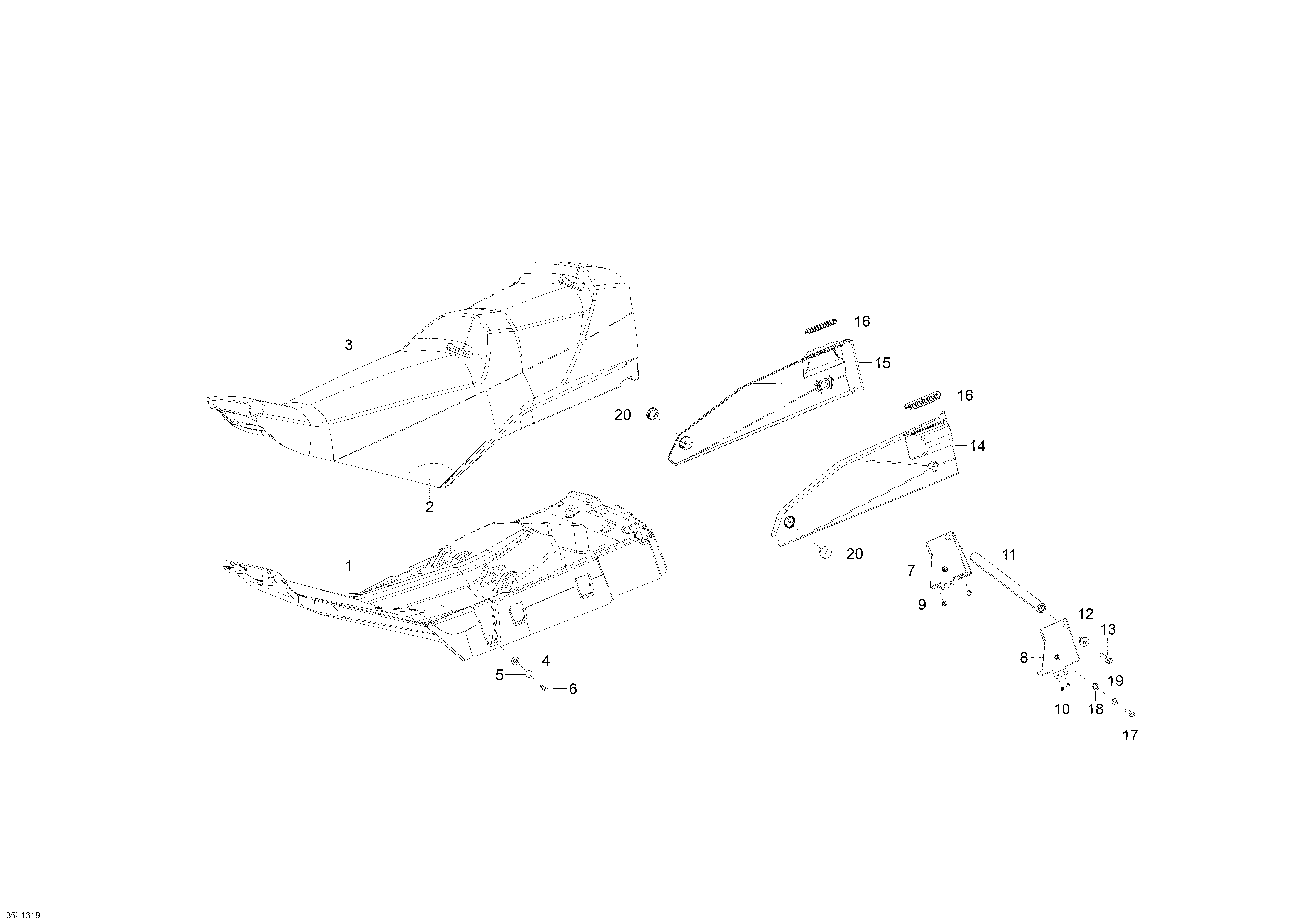

09- Seat для BRP Lynx 49 Ranger 600 ACE - 2013
-
№АртикулНазвание
-
1510005276 Seat BaseSeat Base
-
2510005277 Seat FoamSeat Foam
-
3510005703 Seat CoverSeat Cover
-
4510005402 BushingBushing
-
5234062410 Flat WasherFlat Washer
-
6205062544 Socket HD. Screw M6 x 25Socket HD. Screw M6 x 25
-
7510005285 Support Plate RHSupport Plate RH
-
8510005286 Support Plate LHSupport Plate LH
-
9293150119 RivetRivet
-
10390909200 RivetRivet
-
11510005284 AxleAxle
-
12510005287 BushingBushing
-
1340134 Socket HD. Screw M10 x 45Socket HD. Screw M10 x 45
-
14510005331 Seat Side Cover LHSeat Side Cover LH
-
15510005332 Seat Side Cover RHSeat Side Cover RH
-
16510005394 CoverCover
-
17205403096 Socket Screw M10 x 30Socket Screw M10 x 30
-
18510005460 BushingBushing
-
19250200123 Flat WasherFlat Washer
-
20414916600 Nylon PlugNylon Plug
