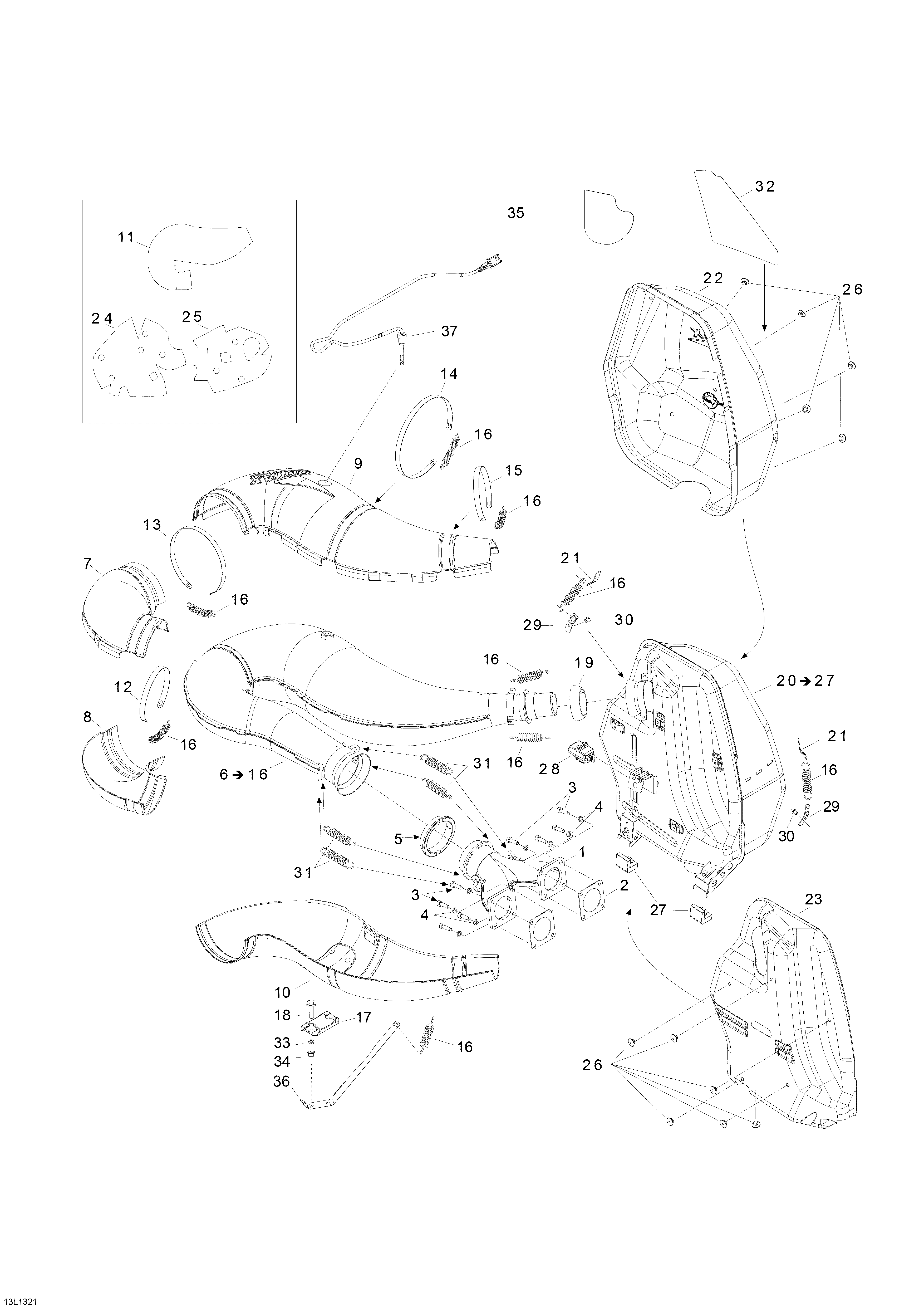

01- Exhaust System для BRP Lynx Rave RS 600 - 2013
-
№АртикулНазвание
-
1420673422 ManifoldManifold
-
2420850552 GasketGasket
-
3514054626 Socket Screw M6 X 22, Scotch GripSocket Screw M6 X 22, Scotch Grip
-
4514053953 WasherWasher
-
5514053487 Exhaust GasketExhaust Gasket
-
6514054868 Calibrated Tube Ass'y. Includes 6 to 16Calibrated Tube Ass'y. Includes 6 to 16
-
7514054992 Front Upper EnveloppeFront Upper Enveloppe
-
8514054993 Front Lower EnveloppeFront Lower Enveloppe
-
9514054591 Rear Upper EnveloppeRear Upper Enveloppe
-
10514054990 Rear Lower EnveloppeRear Lower Enveloppe
-
11514054487 Insulating WoolInsulating Wool
-
12514054408 Retaining StrapRetaining Strap
-
13514054409 Retaining StrapRetaining Strap
-
14514054410 Retaining StrapRetaining Strap
-
15514053499 Retaining StrapRetaining Strap
-
16514054226 SpringSpring
-
17514054275 BumperBumper
-
18250000130 ScrewScrew
-
19514053812 Exhaust GasketExhaust Gasket
-
20514054515 Muffler Ass'y. Includes 20 to 27Muffler Ass'y. Includes 20 to 27
-
21514054155 Spring BracketSpring Bracket
-
22514054433 RH DeflectorRH Deflector
-
23514054202 LH DeflectorLH Deflector
-
24514054298 RH Insulating WoolRH Insulating Wool
-
25514054299 LH Insulating WoolLH Insulating Wool
-
26390910000 Pop Rivet 3/16”Pop Rivet 3/16”
-
27514054274 Lower StopperLower Stopper
-
28514054606 Upper StopperUpper Stopper
-
29514054391 Spring BracketSpring Bracket
-
30390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
31415107100 SpringSpring
-
32514054488 Reflective SheetReflective Sheet
-
33224060201 WasherWasher
-
34233251414 NutNut
-
35514054817 Heat shieldHeat shield
-
36514054637 Retaining strapRetaining strap
-
37514054856 Sensor EGTSensor EGT
