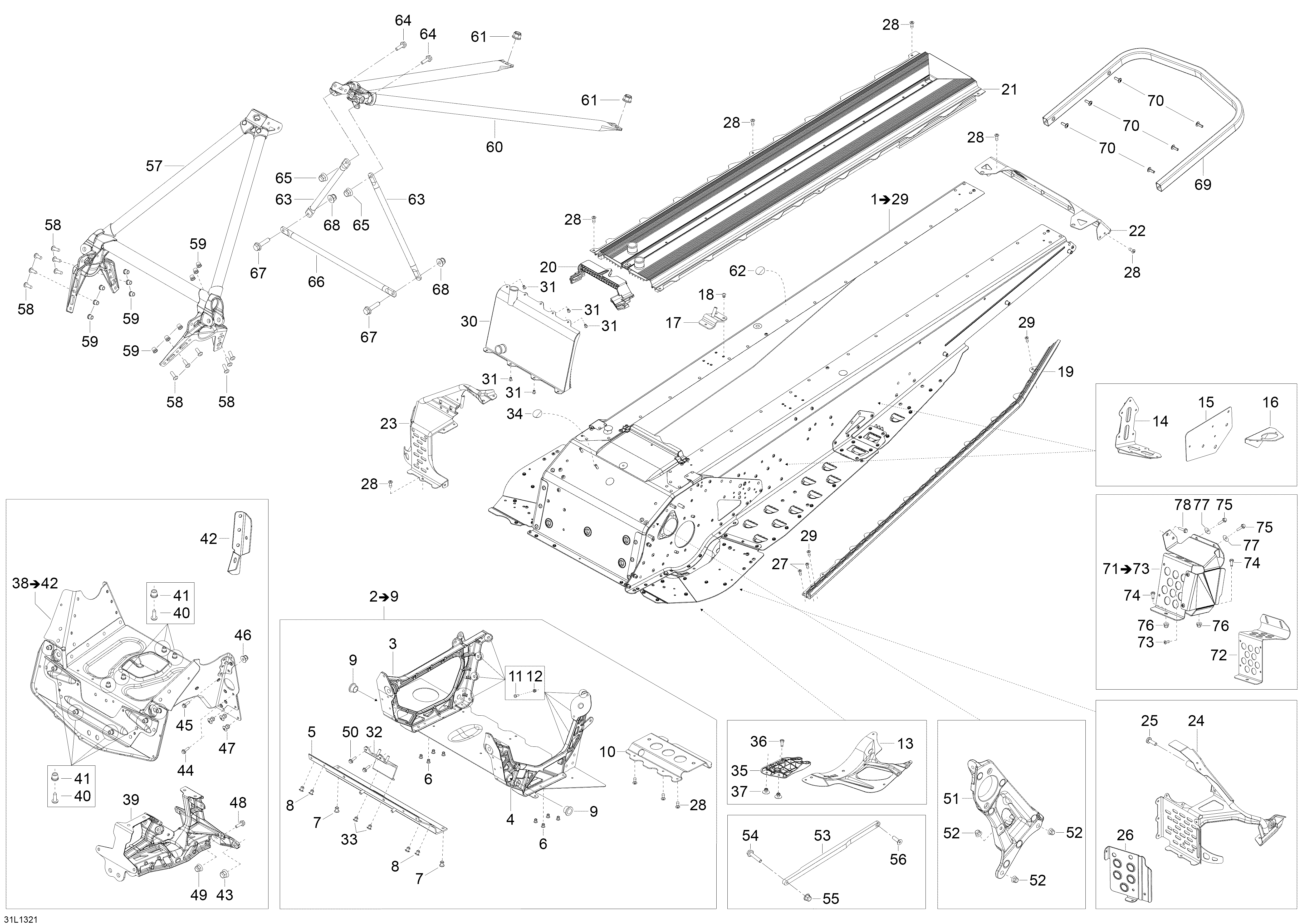

09- Frame для BRP Lynx Rave RS 600 - 2013
-
№АртикулНазвание
-
1518327019 Frame Ass?y. Includes 1 To 29Frame Ass?y. Includes 1 To 29
-
2518326077 E Module. Includes 2 To 9E Module. Includes 2 To 9
-
3518326795 Member RHMember RH
-
4518326796 Member LHMember LH
-
5518326198 Front MemberFront Member
-
6390909100 RivetRivet
-
7293150120 RivetRivet
-
8293150119 RivetRivet
-
9505073317 CushionCushion
-
10518327285 Engine SupportEngine Support
-
11207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
12233261414 Hex. Flange Nut M6Hex. Flange Nut M6
-
13518324874 Reinforcement RHReinforcement RH
-
13518324875 Reinforcement LHReinforcement LH
-
14518326038 Angle ReinforcementAngle Reinforcement
-
15518327607 SupportSupport
-
16518326084 SupportSupport
-
17518326421 Rear Base RHRear Base RH
-
17518326443 Rear Base LHRear Base LH
-
18293150119 RivetRivet
-
19518325693 Roller LHRoller LH
-
19518325694 Roller RHRoller RH
-
20518326656 SealSeal
-
21518326786 Rear RadiatorRear Radiator
-
22518326362 Rear CapRear Cap
-
23518326216 Stirrup RHStirrup RH
-
24518326239 Stirrup LHStirrup LH
-
25250000248 Pan HD. Torx Screw M8 x 25Pan HD. Torx Screw M8 x 25
-
26518325905 Protection PlateProtection Plate
-
27390402300 Pop Rivet 3/16Pop Rivet 3/16
-
28390909200 RivetRivet
-
29390909100 RivetRivet
-
30518326485 Front RadiatorFront Radiator
-
31390909200 RivetRivet
-
32518325943 MAG SupportMAG Support
-
33293150119 RivetRivet
-
34518325560 Adhesive PatchAdhesive Patch
-
35518325782 Deflector RHDeflector RH
-
35518325783 Deflector LHDeflector LH
-
36207561244 Hex. Flange Screw M6 x 12Hex. Flange Screw M6 x 12
-
37293150104 Pop Rivet 3/16Pop Rivet 3/16
-
38518326852 Cross Member. Includes 38 To 42Cross Member. Includes 38 To 42
-
39518327475 SupportSupport
-
40207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
41233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
42518326640 Reinforcement RHReinforcement RH
-
42518326639 Reinforcement LHReinforcement LH
-
43233281414 Elastic Flange Nut M8Elastic Flange Nut M8
-
44210262080 Forming Screw M6 x 20Forming Screw M6 x 20
-
45207662544 Hex. Flange Screw M6 x 25Hex. Flange Screw M6 x 25
-
46233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
47293150179 RivetRivet
-
48207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
49233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
50207661644 Hex. Flange Screw M6 x 16Hex. Flange Screw M6 x 16
-
51518326651 Pulley SupportPulley Support
-
52233281414 Elastic Flange Nut M8Elastic Flange Nut M8
-
53518326118 LinkLink
-
54207663044 Hex. Flange Screw M6 x 30Hex. Flange Screw M6 x 30
-
55233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
56250000143 Torx Screw M8 x 25Torx Screw M8 x 25
-
57518327565 Front MemberFront Member
-
58207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
59233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
60518326685 Rear MemberRear Member
-
61233281414 Elastic Flange Nut M8Elastic Flange Nut M8
-
62518325560 Adhesive PatchAdhesive Patch
-
63518325114 SupportSupport
-
64207662086 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
65233261416 Elastic Flange Nut M6Elastic Flange Nut M6
-
66518325115 Upper ColumnUpper Column
-
67250000522 Hex. Flange Screw M6 x 25Hex. Flange Screw M6 x 25
-
68233261416 Elastic Flange Nut M6Elastic Flange Nut M6
-
69518326979 Rear BumperRear Bumper
-
70250000402 Torx Truss M6 x 18Torx Truss M6 x 18
-
71518326803 Footrest LH. Includes 71 To 73Footrest LH. Includes 71 To 73
-
71518326804 Footrest RH. Includes 71 To 73Footrest RH. Includes 71 To 73
-
72518326806 Toe SupportToe Support
-
73390909200 RivetRivet
-
74207161244 Hex. Cap Screw M6 x 12Hex. Cap Screw M6 x 12
-
75207561644 Hex. Flange Screw M6 x 16Hex. Flange Screw M6 x 16
-
76232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
77234062410 Flat Washer M6Flat Washer M6
-
78250000402 Torx Truss M6 x 18Torx Truss M6 x 18
